DCGT-AK

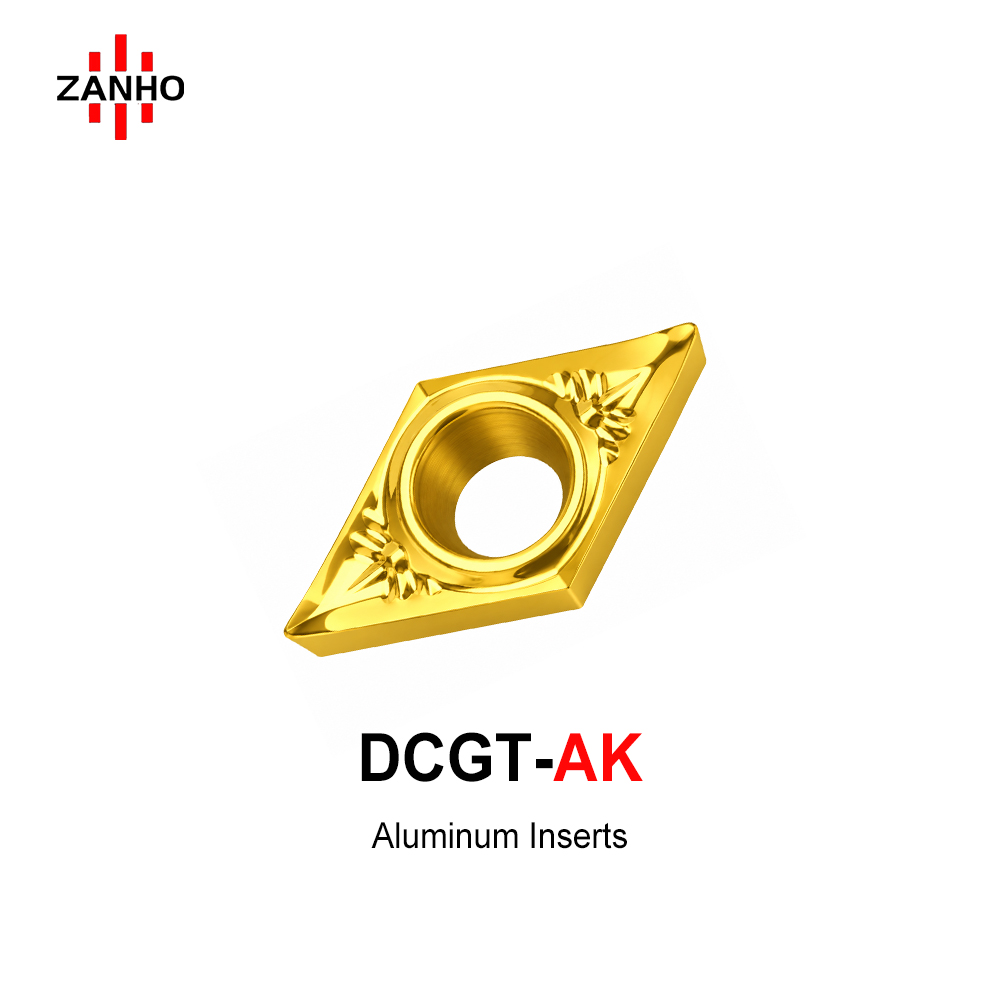

ZANHO DCGT-AK series: High-precision 55° rhombic inserts specifically designed for aluminum and non-ferrous alloys. Featuring a large positive rake angle and a buffed mirror-polished rake face, these inserts significantly reduce cutting friction and prevent built-up edge (BUE). The specialized dot-style chipbreaker ensures stable chip evacuation, making them ideal for high-speed external, internal, and complex profiling tasks with superior surface quality.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • Mirror-Polished Rake Face: Reduces cutting friction and effectively prevents chip welding and built-up edge (BUE).
  • Large Positive Rake Geometry: Ensures light cutting action and minimizes vibration during high-speed operations.
  • Dot-Style Open Chipbreaker: Specialized geometry ensures stable and mandatory chip curling and evacuation.
  • High Precision Machining: Ultra-sharp cutting edge guarantees high dimensional accuracy and exceptional surface brightness.
  • Internal & External Versatility: Perfectly suited for external turning, internal boring, face machining, and complex profiling.

DCGT-AK Dimensions (ISO Standard)

Model Edge Length L (mm) Thickness S (mm) Bore D (mm) Radius R (mm)
DCGT070202-AK 7.94 2.38 3.18 0.2
DCGT070204-AK 7.94 2.38 3.18 0.4
DCGT070208-AK 7.94 2.38 3.18 0.8
DCGT11T302-AK 11.11 3.97 4.76 0.2
DCGT11T304-AK 11.11 3.97 4.76 0.4
DCGT11T308-AK 11.11 3.97 4.76 0.8
