DCGT-ML

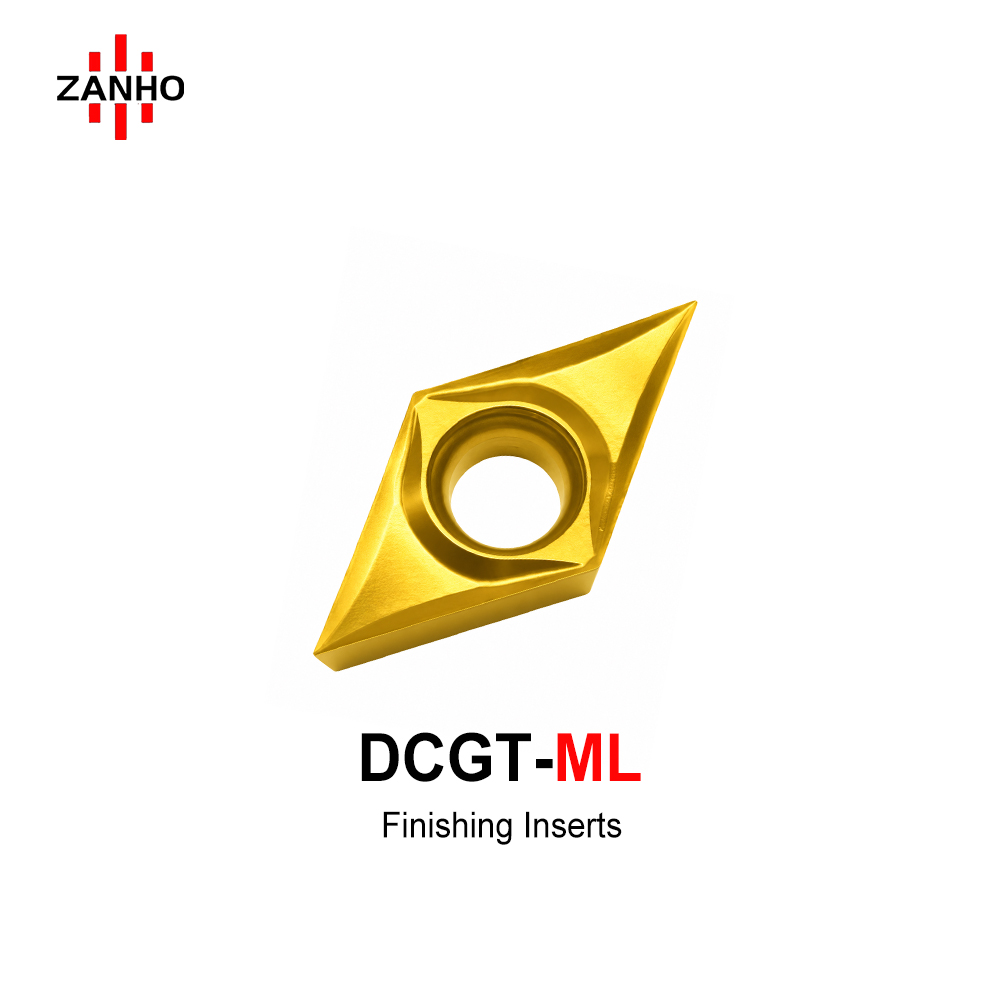

ZANHO DCGT-ML series: Precision ground 55° diamond inserts featuring the ML chipbreaker for high-performance finishing. Optimized for Stainless Steel and Hardened Steel (50HRC+), these inserts deliver exceptional surface quality at high line speeds. Engineered for stable chip control and low cutting forces in intricate CNC profiling.
Categories:
Learn More
Download PDF
Description

Technical Features

  • 55° Diamond Profile: Ideal for complex profiling and finishing in narrow access areas.
  • ML Chipbreaker: Engineered for mandatory chip curling in adhesive and hardened materials.
  • Dual-Material Focus: High efficiency on both Stainless Steel and Hardened Steel (50HRC+).
  • High Speed Stability: Supports line speeds up to 200 m/min on stainless steel.
  • Precision Ground: G-class tolerance ensures maximum repeatability and edge sharpness.

DCGT-ML Dimensions (mm)

Designation L øI.C S D1 RE
DCGT070201-ML 7.8 6.35 2.38 2.8 0.1
DCGT070202-ML 0.2
DCGT070204-ML 0.4
DCGT11T301-ML 11.6 9.525 3.97 4.4 0.1
DCGT11T302-ML 0.2
DCGT11T304-ML 0.4

Recommended Cutting Parameters

Tip Radius (RE) ap (mm) Vc Stainless (m/min) Vc HRC50+ (m/min) f (mm/rev)
R0.1 0.05-1.0 70-200 30-70 0.01-0.05
R0.2 0.08-1.5 0.02-0.08
R0.4 0.15-2.5 0.03-0.15
