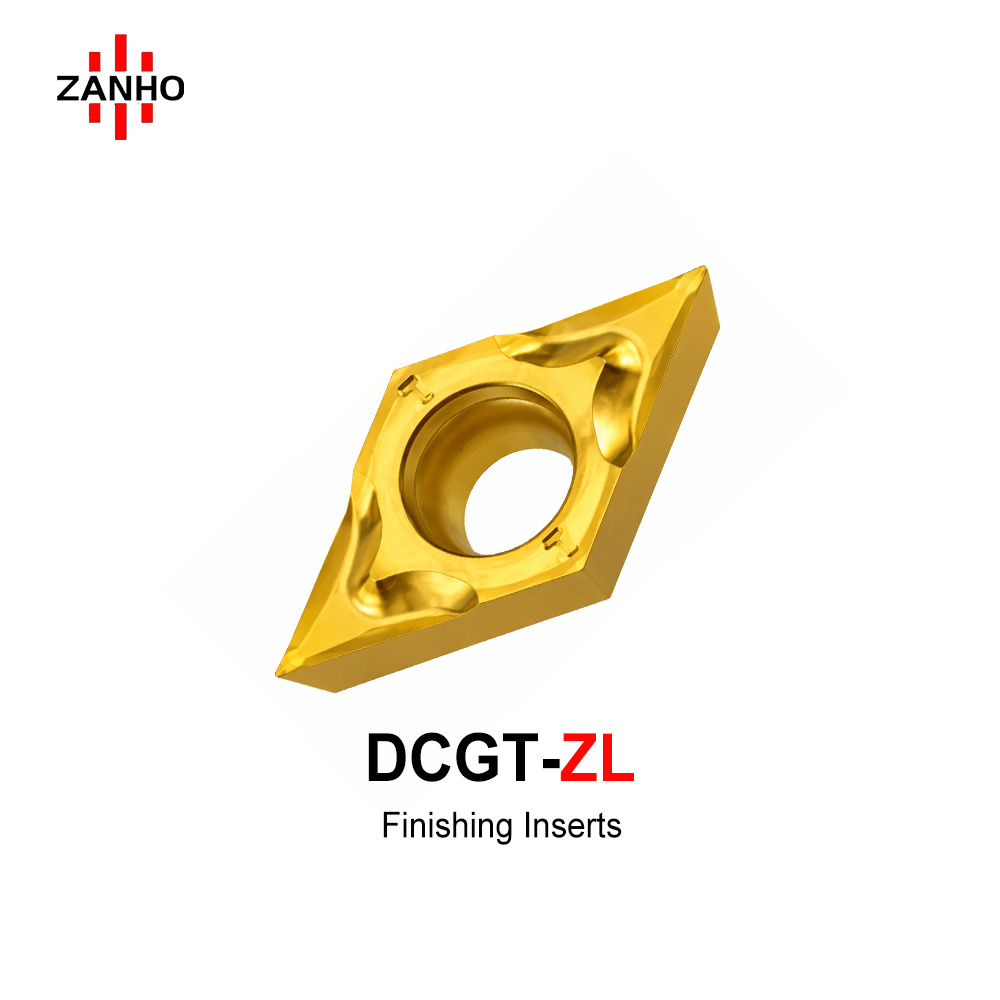

DCGT-ZL

ZANHO DCGT-ZL series: High-precision ground 55° rhombic finishing inserts engineered for exceptional surface quality. Featuring an ultra-sharp cutting edge with uniform passivation (honing), these inserts significantly reduce cutting pressure while enhancing wear and corrosion resistance. Ideal for intricate profiling and fine turning in high-precision CNC applications.
Categories:
Learn More
Download PDF
Description

Technical Features

  • Ultra-Sharp Edge: Optimized rake geometry reduces cutting force and prevents heat build-up.
  • Uniform Passivation: Precision honing creates a protective layer for enhanced wear and corrosion resistance.
  • Excellent Chip Control: Wider chipbreaker design facilitates smooth chip evacuation at low depths of cut.
  • High-Precision Ground: G-class tolerance ground periphery ensures maximum repeatability.
  • Superior Surface Finish: Delivers optical-grade smoothness in fine finishing operations.

DCGT-ZL Dimensions (mm)

Designation L øI.C S D1 RE
DCGT0702005-ZL 7.8 6.35 2.38 2.8 0.05
DCGT070201-ZL 0.1
DCGT070202-ZL 0.2
DCGT070204-ZL 0.4
DCGT11T3005-ZL 11.6 9.525 3.97 4.4 0.05
DCGT11T301-ZL 0.1
DCGT11T302-ZL 0.2
DCGT11T304-ZL 0.4
