DCMT-PF

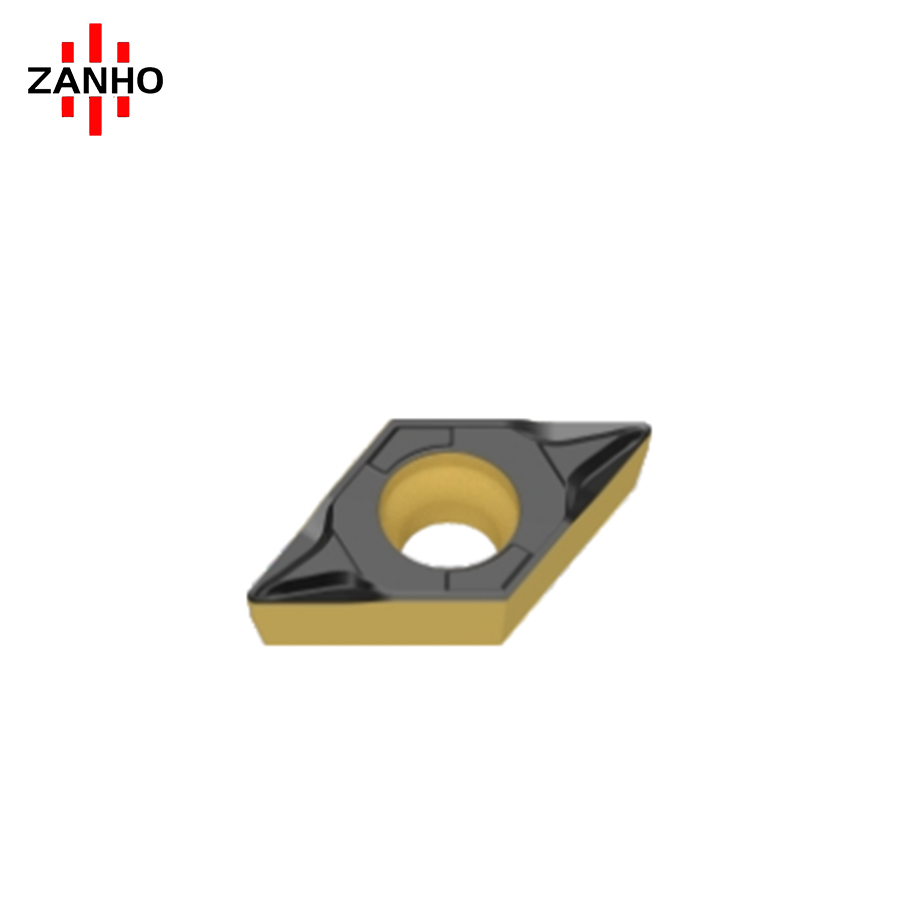

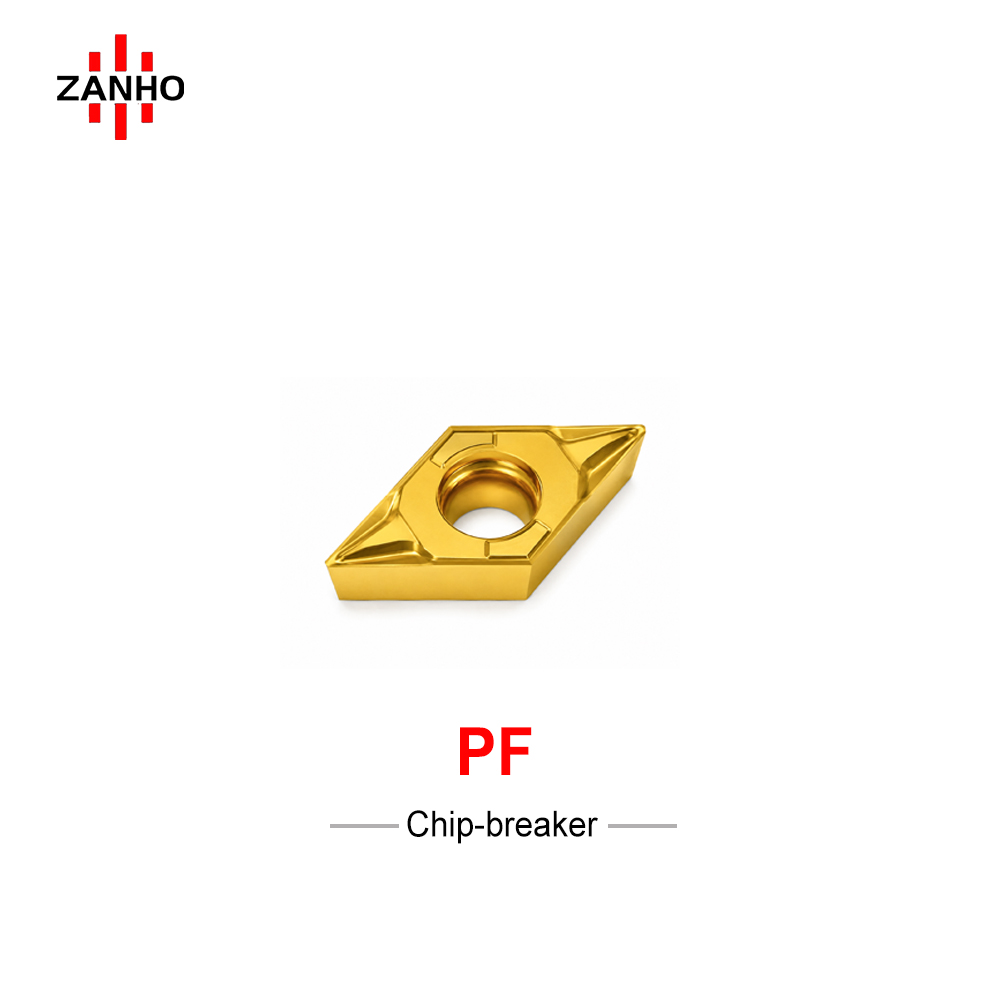

ZANHO DCMT-PF series is a specialized 55° rhombic positive turning insert designed for high-precision Finishing. Featuring a light-cutting chipbreaker geometry, it produces exceptionally low cutting forces, making it the perfect solution for machining slender shafts, thin-walled components, or parts with unstable clamping. It delivers superior chip control and surface quality across steel, stainless steel, and cast iron materials.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Superior Chip Control: Specialized PF geometry outperforms standard chipbreakers in steel, stainless steel, and grey/nodular cast iron, ensuring clean evacuation during fine finishing.
  • Light Cutting Force: High positive rake angle reduces machining resistance, significantly minimizing vibration and deflection on delicate or long components.
  • Multi-Operation Versatility: Optimized for high-quality performance in turning, facing, profiling, and back-facing operations.
  • Surface Integrity: Specifically designed for parts prioritizing surface finish quality, such as shafts, wheels, and gear hubs.

Technical Specifications

Model Feed (f) mm/r Cut Depth (ap) mm
DCMT070202-PF 0.01 - 0.3 0.5 - 2.0
DCMT070204-PF 0.01 - 0.3 0.5 - 2.0
DCMT11T302-PF 0.01 - 0.3 0.5 - 2.0
DCMT11T304-PF 0.01 - 0.3 0.5 - 2.0
DCMT11T308-PF 0.01 - 0.3 0.5 - 2.0

Precision Parts Require Precision Tooling

Contact our technical support for advice on maximizing tool life and achieving optimal surface finishes in thin-walled or slender workpieces.
