DCMT-PM

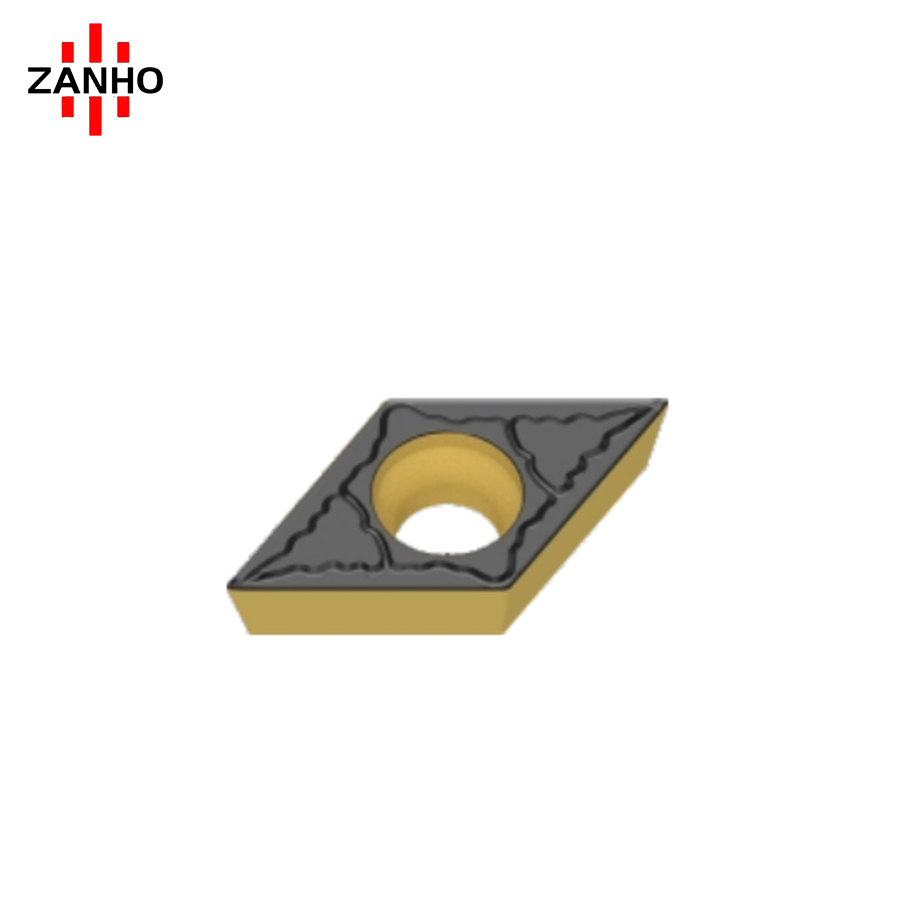

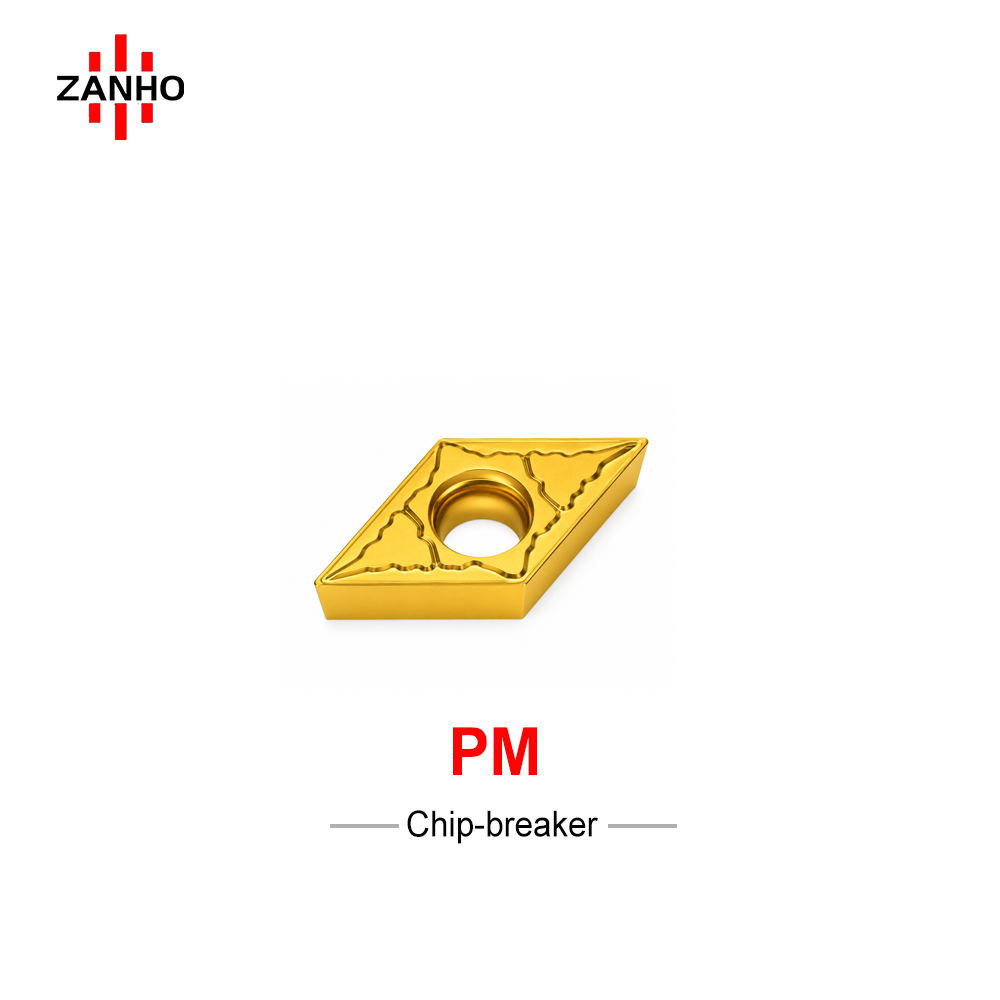

ZANHO DCMT-PM series is a versatile 55° rhombic positive turning insert specifically engineered for Semi-finishing. Designed for steel and stainless steel applications, it features a specialized PM chipbreaker that provides a wide chip control range. Whether performing profiling, OD/ID turning, or facing, this insert ensures stable performance and consistent chip evacuation across varied cutting conditions.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Steel & Stainless Steel Optimized: Specifically designed for semi-finishing operations on carbon steel, alloy steel, and stainless steel workpieces.
  • Wide Chip Control Range: The PM chipbreaker geometry maintains excellent chip breaking effectiveness across a broad spectrum of feed rates and cutting depths.
  • Universal Application: Highly versatile design suitable for profiling, external (OD) turning, internal (ID) boring, and facing operations.
  • 55° Rhombic Positive Geometry: Combines a sharp cutting edge with a positive clearance angle to reduce cutting resistance while providing accessibility in complex contours.

Technical Specifications

Model Feed (f) mm/r Cut Depth (ap) mm
DCMT070204-PM 0.1 - 0.35 0.2 - 4.5
DCMT070208-PM 0.1 - 0.35 0.2 - 4.5
DCMT11T302-PM 0.1 - 0.35 0.2 - 4.5
DCMT11T304-PM 0.1 - 0.35 0.2 - 4.5
DCMT11T308-PM 0.1 - 0.35 0.2 - 4.5

Optimize Your Turning Efficiency

Need technical parameters for specific materials? Our team provides tailored cutting speed (Vc) recommendations to match your machining environment.
