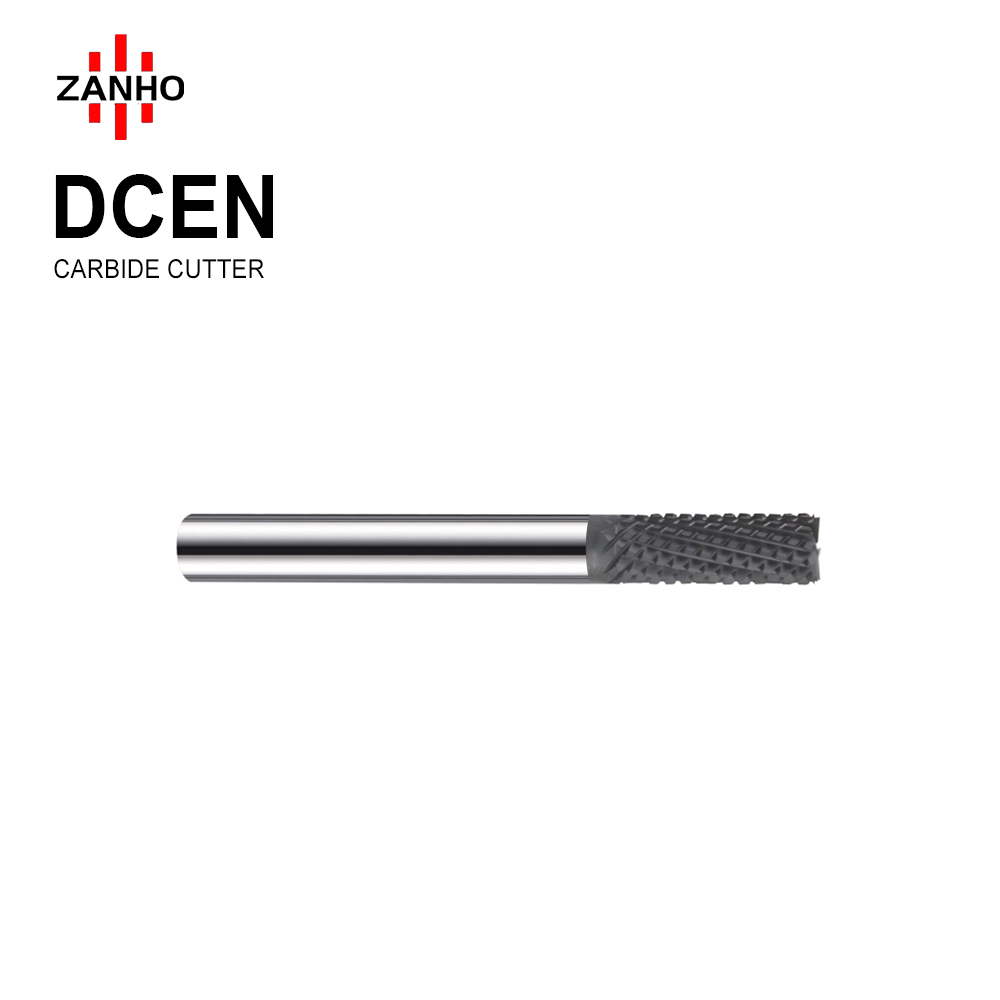

Diamond Coated Corn Router Bit

  • Extreme Durability:  Graphite and Highly Abrasive Composites, featuring a premium diamond coating that extends tool life up to 10x longer than standard bits.
  • High-Hardness Coating: The advanced Diamond Coating provides superior red-hardness and wear resistance, maintaining sharp cutting edges in the toughest materials.
  • Diamond-Cut Performance: Multi-tooth Corn Router (Burr Style) design effectively breaks chips into fine dust, reducing cutting temperature and preventing workpiece delamination.
  • Workpiece Compatibility: Optimized for PCB (FR-4), Carbon Fiber, Graphite, Bakelite, and high-silicon aluminum alloys.
  • Industrial Standard: Offers standard 3.175mm (1/8") shanks for standard CNC spindles and larger industrial diameters up to 12mm.
Categories:
Learn More
Download PDF
Description

Dimensional Specifications (mm)

Order Number Specification D (mm) L1 (mm) D1 (mm) L (mm)
DCEN-2S-01810 D3.175*10H*38L 3.175 10 / 38
DCEN-2S-01812 D3.175*12H*38L 3.175 12 / 38
DCEN-2S-01815 D3.175*15H*38L 3.175 15 / 38
DCEN-2S-01817 D3.175*17H*38L 3.175 17 / 38
DCEN-2S-01822 D3.175*22H*45L 3.175 22 / 38
DCEN-2S-01825 D3.175*25H*45L 3.175 25 / 38
DCEN-2S-04012 D4*12H*45L*1F 4 12 / 45
DCEN-2S-04015 D4*15H*45L*1F 4 15 / 45
DCEN-2S-04017 D4*17H*45L*1F 4 17 / 45
DCEN-2S-04022 D4*22H*45L*1F 4 22 / 45
DCEN-2S-04025 D4*25H*50L*1F 4 25 / 50
DCEN-2S-05012 D5*12H*50L*1F 5 12 / 50
DCEN-2S-05017 D5*17H*50L*1F 5 17 / 50
DCEN-2S-05022 D5*22H*50L*1F 5 22 / 50
DCEN-2S-06017 D6*17H*50L*1F 6 17 / 50
DCEN-2S-06022 D6*22H*50L*1F 6 22 / 50
DCEN-2S-06025 D6*25H*50L*1F 6 25 / 50
DCEN-2S-06032 D6*32H*60L*1F 6 32 / 60
DCEN-2S-08022 D8*22H*60L*1F 8 22 / 60
DCEN-2S-08025 D8*25H*60L*1F 8 25 / 60
DCEN-2S-08032 D8*32H*60L*1F 8 32 / 60
DCEN-2S-10032 D10*32H*75L*1F 10 32 / 75
DCEN-2S-10055 D10*55H*100L*1F 10 55 / 100
DCEN-2S-12032 D12*32H*75L*1F 12 32 / 75
DCEN-2S-12055 D12*55H*100L*1F 12 55 / 100
