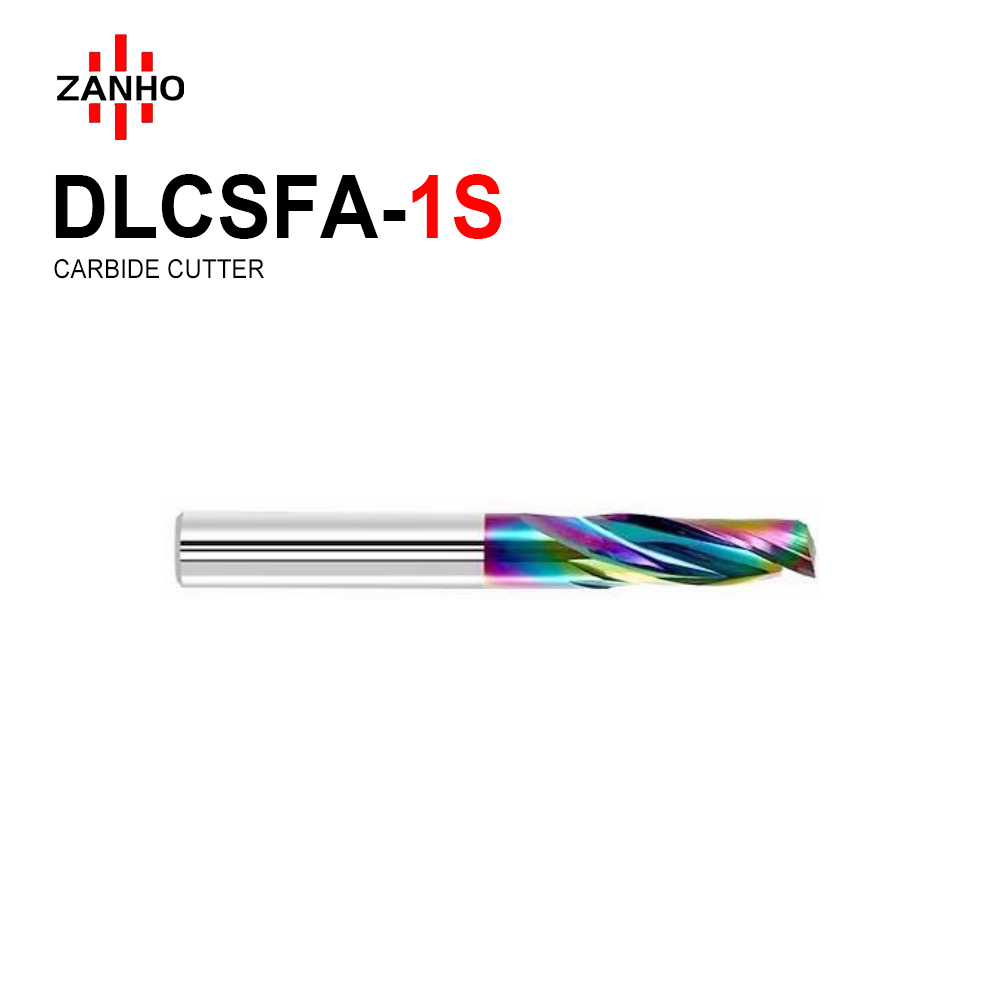

DLCSFA-1S

  • Premium DLC Coating: Available with advanced DLC (Diamond-Like Carbon) coating for ultra-low friction and superior wear resistance, ensuring long tool life in non-ferrous metals.
  • Mirror-Finish Results: Precision-ground, mirror-polished flutes ensure a burr-free, high-gloss finish that significantly reduces the need for secondary polishing.
  • High-Speed Productivity: Optimized geometry allows for high feed rates and extreme spindle speeds without tool clogging or material melting.
  • Material Compatibility: Highly suitable for Aluminum, Copper, Brass, and Plastics (Workpiece category N) across D1 to D12 diameters.
  • Shank Versatility: Includes both standard 3.175mm (1/8") shanks for CNC routers and industrial shanks for precision machining centers.
Categories:
Learn More
Download PDF
Description
  • Premium DLC Coating: Available with advanced DLC (Diamond-Like Carbon) coating for ultra-low friction and superior wear resistance, ensuring long tool life in non-ferrous metals.
  • Mirror-Finish Results: Precision-ground, mirror-polished flutes ensure a burr-free, high-gloss finish that significantly reduces the need for secondary polishing.
  • High-Speed Productivity: Optimized geometry allows for high feed rates and extreme spindle speeds without tool clogging or material melting.
  • Material Compatibility: Highly suitable for Aluminum, Copper, Brass, and Plastics (Workpiece category N) across D1 to D12 diameters.
  • Shank Versatility: Includes both standard 3.175mm (1/8") shanks for CNC routers and industrial shanks for precision machining centers.

Order Number Specification  D  L1 D1  L
DLCSFA-1S-01812 D3.175*12H*38L*1F 3.175 12 / 38
DLCSFA-1S-01815 D3.175*15H*38L*1F 3.175 15 / 38
DLCSFA-1S-01817 D3.175*17H*38L*1F 3.175 17 / 38
DLCSFA-1S-01822 D3.175*22H*45L*1F 3.175 22 / 45
DLCSFA-1S-01003 D1*3H*D4*50L*1F 1 3 4 50
DLCSFA-1S-01545 D1.5*4.5H*D4*50L*1F 1.5 4.5 4 50
DLCSFA-1S-02006 D2*6H*D4*50L*1F 2 6 4 50
DLCSFA-1S-02508 D2.5*8H*D4*50L*1F 2.5 8 4 50
DLCSFA-1S-03009 D3*9H*D4*50L*1F 3 9 4 50
DLCSFA-1S-04012 D4*12H*D4*50L*1F 4 12 4 50
DLCSFA-1S-05015 D5*15H*D5*50L*1F 5 15 5 50
DLCSFA-1S-06017 D6*17H*D6*50L*1F 6 17 6 50
DLCSFA-1S-06022 D6*22H*D6*50L*1F 6 22 6 50
DLCSFA-1S-06025 D6*25H*D6*50L*1F 6 25 6 50
DLCSFA-1S-06032 D6*32H*D6*50L*1F 6 32 6 50
DLCSFA-1S-08022 D8*22H*D8*60L*1F 8 22 8 60
DLCSFA-1S-08035 D8*25H*D8*60L*1F 8 25 8 60
DLCSFA-1S-08032 D8*32H*D8*60L*1F 8 32 8 60
DLCSFA-1S-10032 D10*32H*D10*75L*1F 10 32 10 75
DLCSFA-1S-12032 D12*32H*D12*75L*1F 12 32 12 75
