DNMG-MT

ZANHO DNMG-MT series is a high-performance 55° rhombic negative turning insert specifically designed for Medium Machining. Featuring the specialized MT chipbreaker, it delivers exceptional chip control and edge strength, making it ideal for high-efficiency turning of steel and alloy materials in demanding CNC environments.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Medium Machining Excellence: Optimized for stable performance in semi-roughing to medium turning, providing a reliable balance between tool life and high metal removal rates.

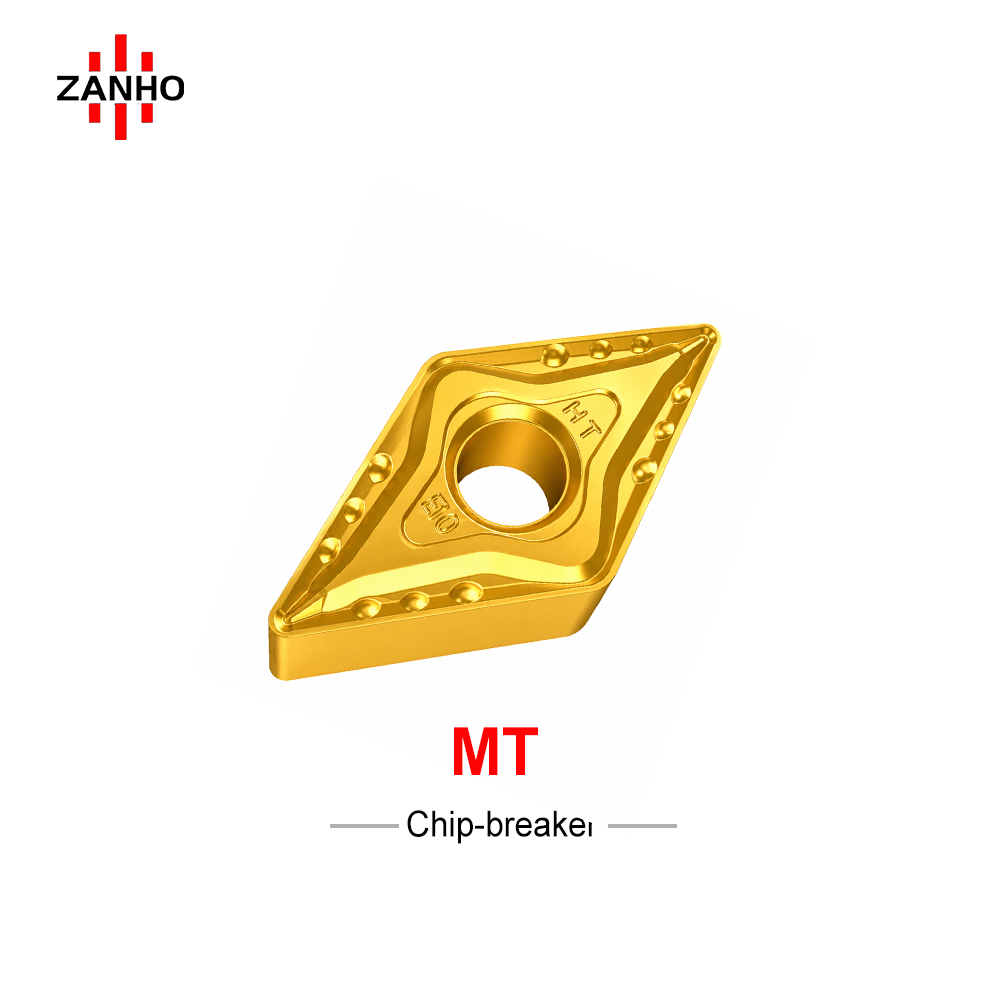

  • MT Chipbreaker Geometry: Specially engineered for effective chip control at medium to high feed rates, significantly reducing cutting resistance and heat generation.
  • Negative Rhombic Strength: The negative 55-degree rhombic design offers double-sided usability with increased edge toughness for continuous and slightly interrupted cuts.
  • Stable Tool Life: Advanced coating technology and precision-ground edges ensure consistent dimensional accuracy and superior finish in long-duration machining.

Technical Specifications

Model Feed (f) mm/r Cut Depth (ap) mm
DNMG150404-MT 0.1 - 0.40 1.0 - 5.0
DNMG150408-MT 0.15 - 0.50 0.5 - 5.0
DNMG150604-MT 0.2 - 0.50 1.0 - 5.0
DNMG150608-MT 0.1 - 0.50 0.5 - 5.0

Boost Your Machining Performance

ZANHO provides high-reliability carbide solutions for global markets. Contact us for bulk pricing or technical support regarding material-specific grade selection.
