DNMG-43

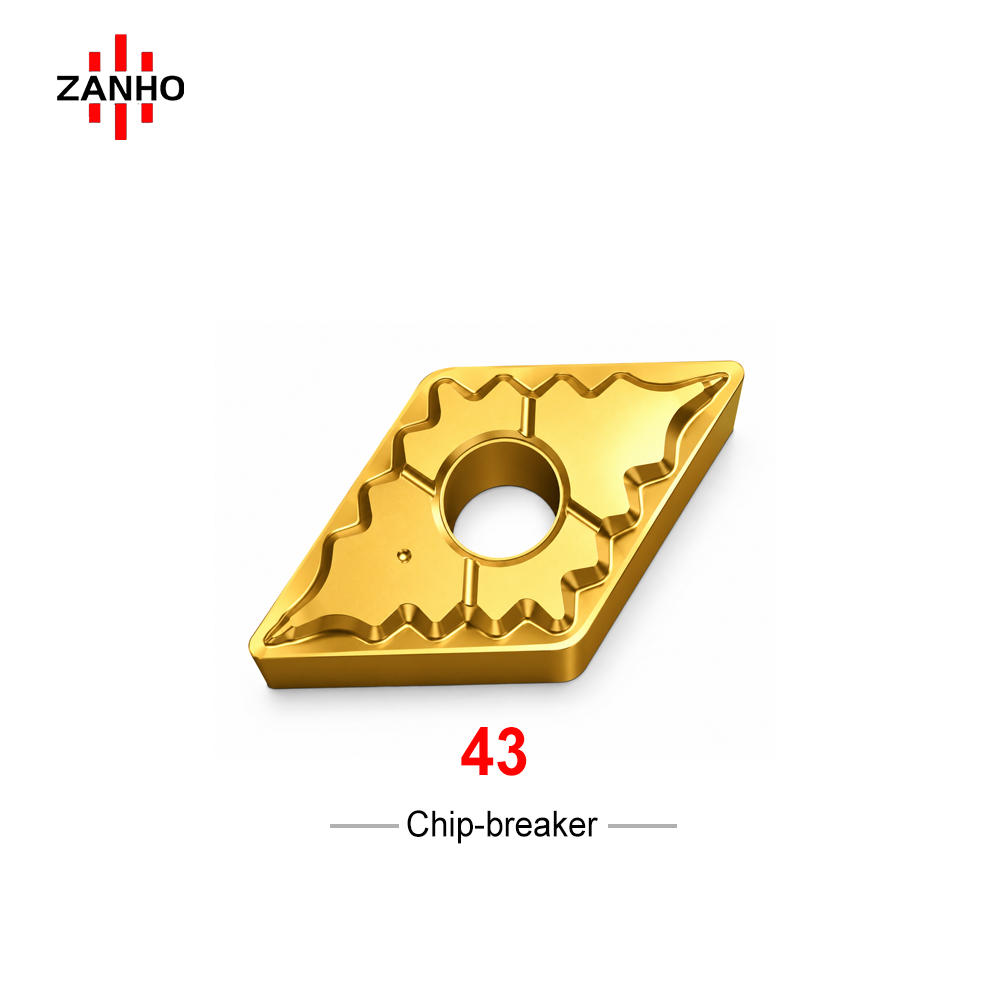

ZANHO DNMG1504/1506-43 is a professional 55° rhombic negative turning insert optimized for **Finishing** operations. The **43 chipbreaker** is engineered to provide an excellent balance between sharp cutting and edge strength, ensuring superior surface finish and stable chip evacuation in both steel and stainless steel.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Finishing Specialist: Optimized for high-precision finishing with superior surface integrity.
  • 43 Chipbreaker: Engineered for stable chip evacuation at feed rates up to 0.52 mm/rev.
  • Dual Stability: 55° rhombic geometry provides maximum edge strength for profiling.

Technical Specifications

Model Radius (re) Feed (fn) Cut Depth (ap)
DNMG150404-43 0.4 mm 0.12 - 0.52 0.7 - 4.8 mm
DNMG150408-43 0.8 mm 0.12 - 0.52 0.7 - 4.8 mm
DNMG150412-43 1.2 mm 0.08 - 0.35 0.5 - 2.5 mm

Material Suitability

P (Steel) ★★★
M (Stainless) ★★★
K (Cast Iron) ★★

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade based on your workpiece material and machining conditions.
