DNMG-FG

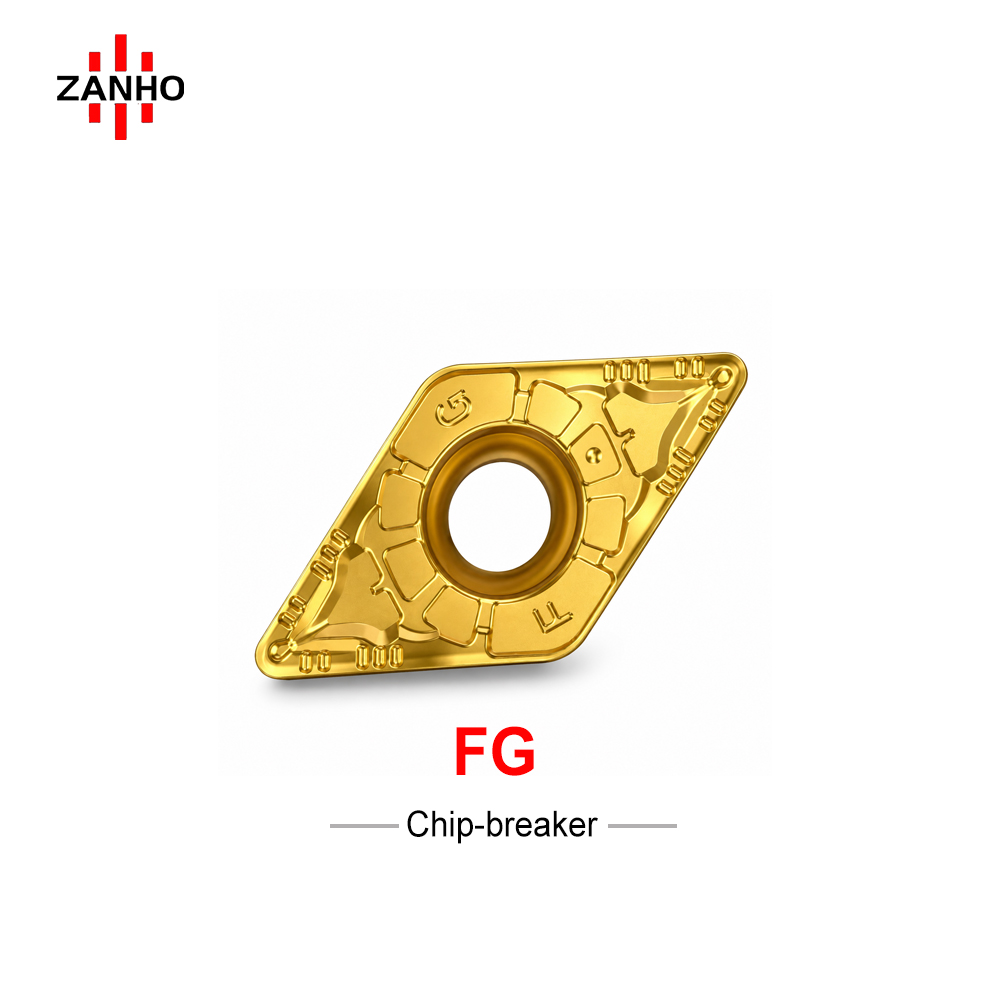

ZANHO DNMG1104-FG is a high-precision 55° rhombic negative turning insert optimized for **Finishing** operations. Featuring the specialized **FG chipbreaker**, it delivers exceptional surface integrity and stable chip control in Steel (P) and Stainless Steel (M) machining.
Categories:
Learn More
Download PDF
Description

High-Precision Finishing Performance

  • FG Chipbreaker: Engineered specifically for Precision Finishing, featuring a sharp cutting edge that delivers exceptional surface smoothness and prevents built-up edge.
  • Stable Chip Control: Optimized for light depths of cut (ap: 0.5 - 2.0mm), ensuring excellent chip breaking even at low feed rates.
  • Dimensional Accuracy: High-precision geometry ensures tight tolerances and consistent workpiece dimensions in multi-axis CNC turning.
  • Advanced Surface Integrity: Reduces cutting resistance and vibration, significantly improving the final workpiece surface quality.

Technical Specifications

Model Radius (re) Feed (fn) Cut Depth (ap)
DNMG110404-FG 0.4 mm 0.07 - 0.20 0.5 - 2.0 mm
DNMG110408-FG 0.8 mm 0.10 - 0.25 0.7 - 2.0 mm

Recommended Materials

P (Steel) ★★★
M (Stainless) ★★★
K (Cast Iron) ★★

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade based on your workpiece material and machining conditions.
