DNMG-MT

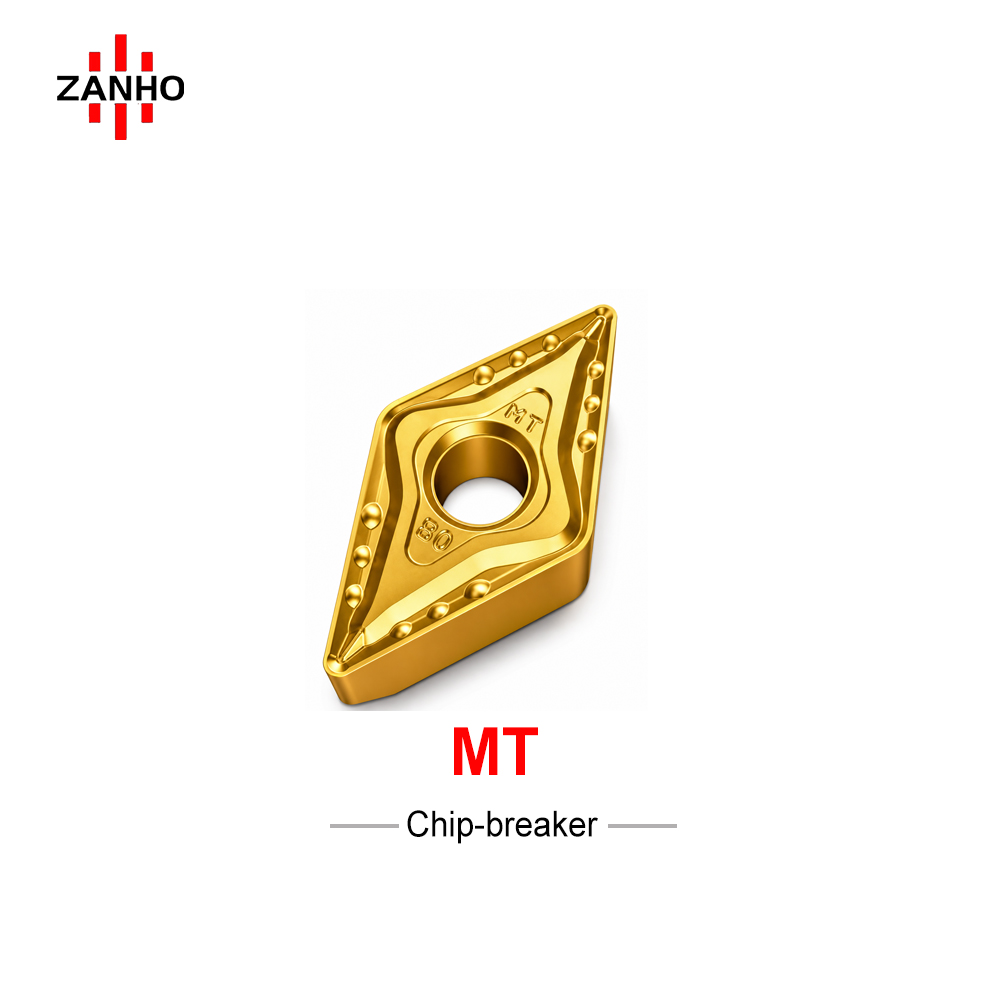

ZANHO DNMG1504/1506-MT is a high-performance 55° rhombic negative turning insert designed for Medium Machining. The specialized MT chipbreaker ensures reliable chip evacuation and edge strength, delivering stable performance across a wide range of cutting conditions.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • MT Chipbreaker: Specifically designed for Medium Machining, balancing sharp cutting action with excellent edge strength.
  • Stable Chip Control: Features an optimized geometry to prevent chip clogging and heat buildup during continuous cutting.
  • Dual-Series Versatility: Available in both DNMG1504 and DNMG1506 sizes to fit various high-production tool holders.
  • Premium Durability: Sub-micron carbide substrate with advanced coating for superior wear resistance in heavy-duty environments.

Technical Specifications

Model Radius (re) Feed (fn) Cut Depth (ap)
DNMG150404-MT 0.4 mm 0.10 - 0.40 1.0 - 5.0 mm
DNMG150408-MT 0.8 mm 0.15 - 0.50 0.5 - 5.0 mm
DNMG150604-MT 0.4 mm 0.20 - 0.50 1.0 - 5.0 mm
DNMG150608-MT 0.8 mm 0.10 - 0.50 0.5 - 5.0 mm

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade based on your workpiece material and machining conditions.
