DNMG-PC

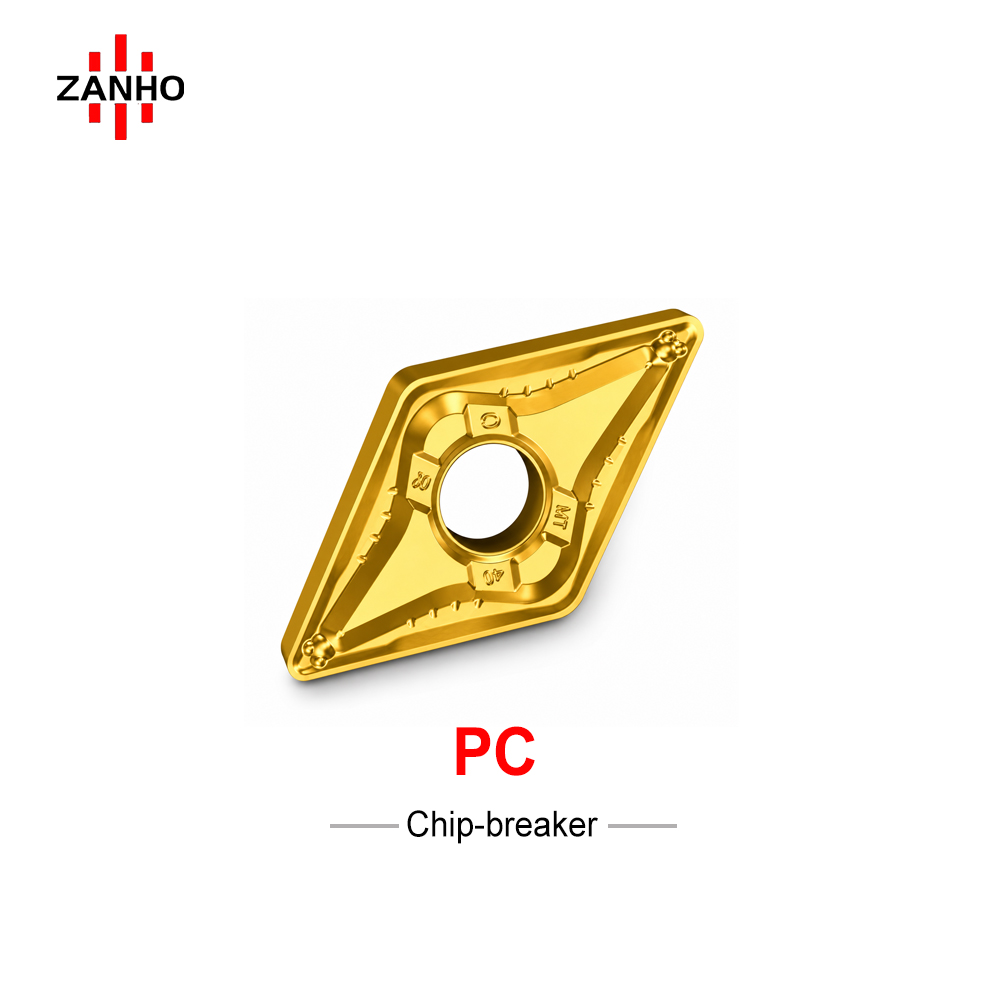

ZANHO DNMG1504/1506-PC is a precision 55° rhombic negative turning insert optimized for Medium Machining. The specialized PC chipbreaker ensures reliable chip evacuation and edge durability, providing stable performance at cutting depths (ap) up to 6.0mm.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • PC Chipbreaker: Specifically engineered for Medium Machining, offering exceptional chip breaking control and reducing cutting resistance.
  • High Cutting Efficiency: Optimized for deep cuts (ap up to 6.0mm) and high feed rates, significantly improving metal removal productivity.
  • Stable Geometry: The 55° rhombic negative design provides superior edge strength for continuous and interrupted turning.
  • Universal Application: Excellent stability across various workpiece materials including steel and stainless steel.

Technical Specifications

Model Radius (re) Feed (fn) Cut Depth (ap)
DNMG150404-PC 0.4 mm 0.10 - 0.40 0.4 - 4.0 mm
DNMG150408-PC 0.8 mm 0.15 - 0.50 0.5 - 4.0 mm
DNMG150412-PC 1.2 mm 0.25 - 0.60 1.0 - 6.0 mm
DNMG150604-PC 0.4 mm 0.10 - 0.40 0.4 - 4.0 mm
DNMG150608-PC 0.8 mm 0.15 - 0.50 0.5 - 4.0 mm
DNMG150612-PC 1.2 mm 0.25 - 0.60 1.0 - 6.0 mm

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade based on your workpiece material and machining conditions.
