DNMG-PM

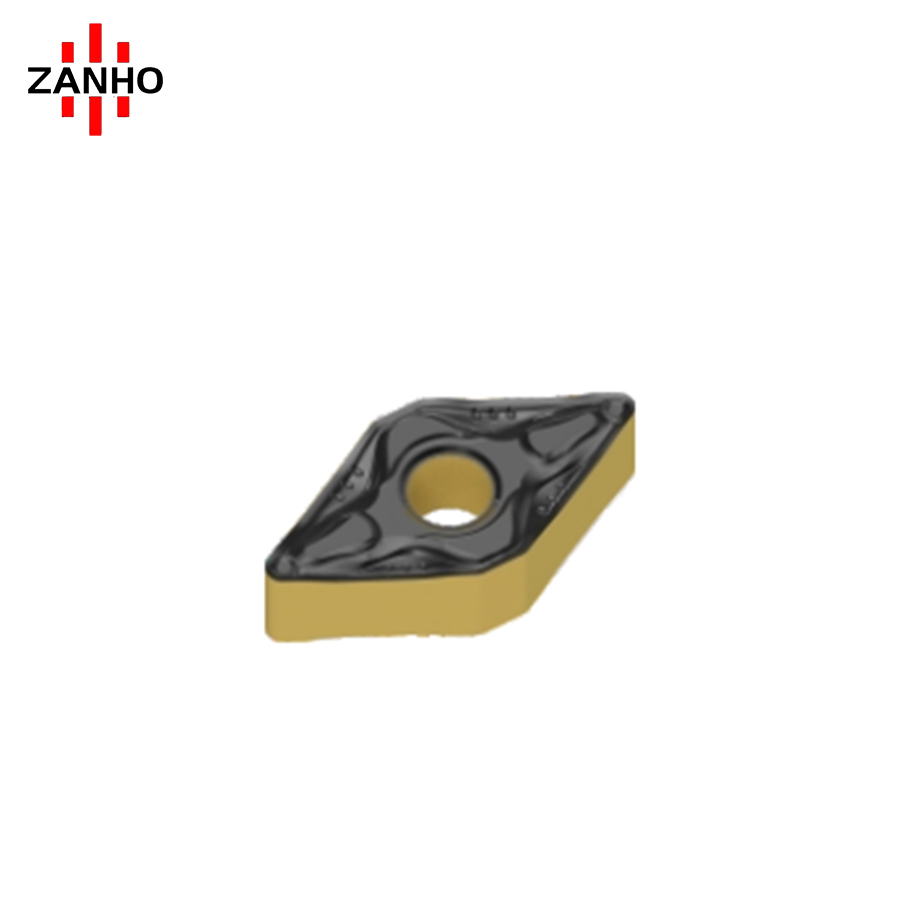

ZANHO DNMG-MA series is a high-reliability 55° rhombic negative turning insert specifically engineered for Semi-finishing. Featuring the specialized MA chipbreaker, it delivers consistent chip breaking and stable cutting performance across a wide range of feed rates, making it an ideal choice for medium-duty turning of steel and alloy components.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Semi-finishing Specialist: Optimized for stable performance in semi-finishing applications, providing excellent surface quality and tool life stability.

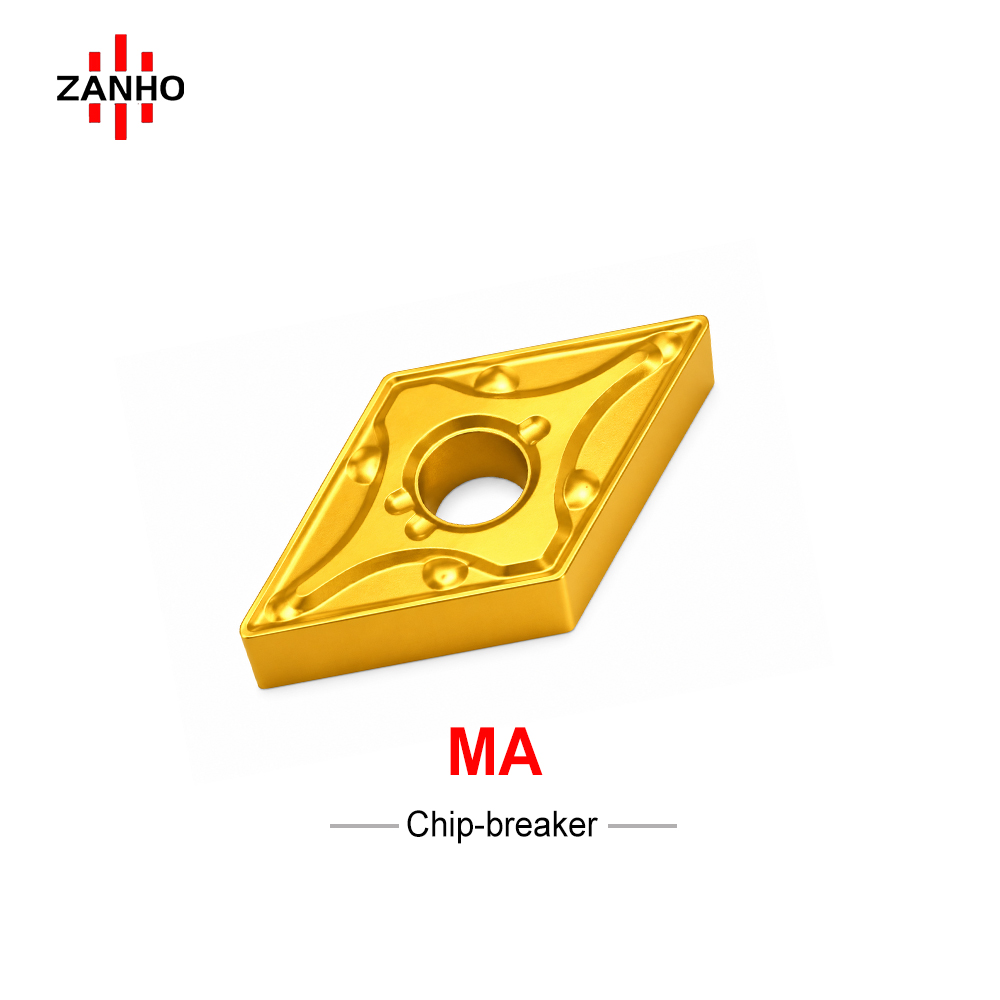

  • MA Chipbreaker Geometry: Specially designed for versatile chip control at medium feed rates, effectively reducing cutting vibration and heat buildup.
  • Negative 55° Rhombic Strength: The negative geometry offers double-sided usability with a robust cutting edge capable of handling varied depths of cut.
  • Stable Machining: Precision-ground edges combined with advanced coating technology ensure consistent machining results and high reliability in continuous turning.

Technical Specifications

Model Feed (f) mm/r Cut Depth (ap) mm
DNMG150404-MA 0.13 - 0.50 0.5 - 5.0
DNMG150408-MA 0.13 - 0.50 0.5 - 5.0
DNMG150604-MA 0.13 - 0.50 0.5 - 5.0
DNMG150608-MA 0.13 - 0.50 0.5 - 5.0

Need Technical Support for Your Machining?

ZANHO offers high-performance carbide solutions for CNC lathes. Contact our sales team for bulk inquiries or to confirm the best grade for your specific material conditions.
