DNMG with Wiper Edge

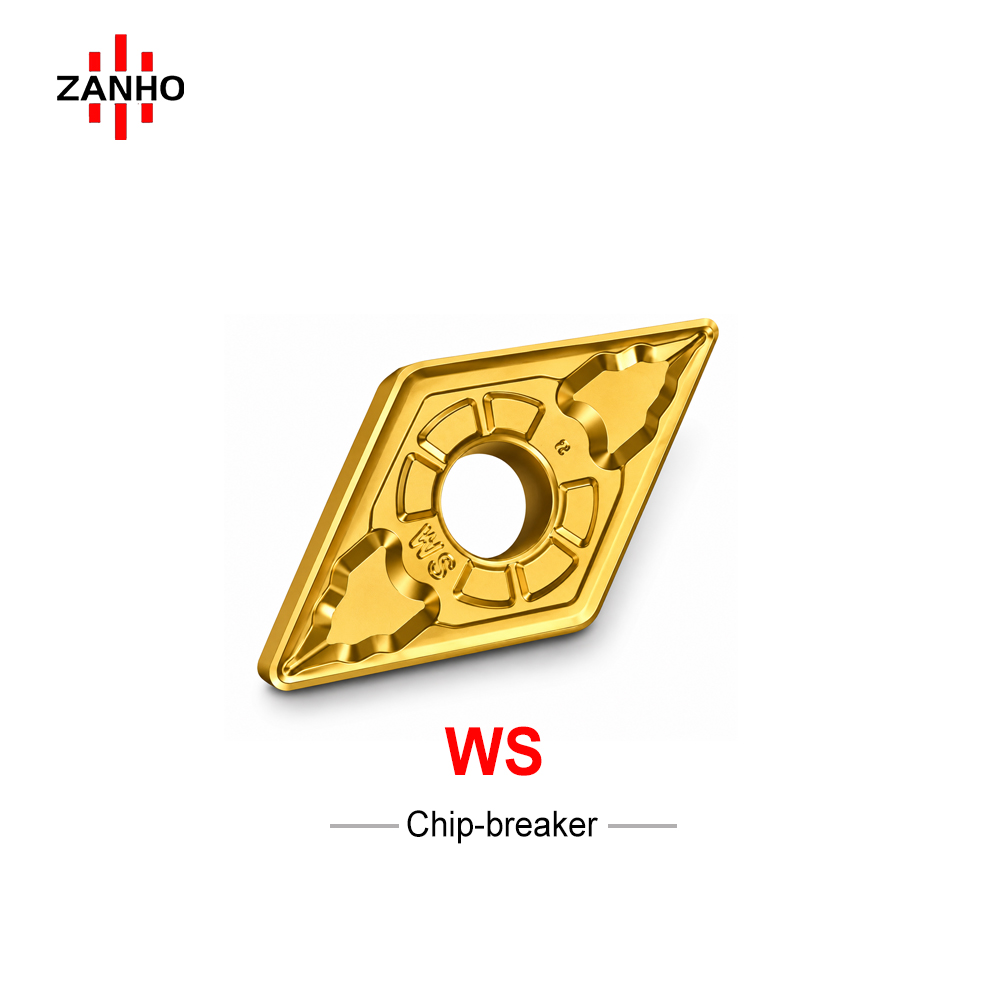

ZANHO DNMG1504/1506-WS is a specialized Wiper Insert optimized for high-quality Medium Machining. The innovative WS chipbreaker is designed to deliver a superior surface finish even at higher feed rates, effectively doubling your productivity without compromising precision.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Wiper Technology: The WS profile features a wiper edge that delivers a superior surface finish at twice the feed rate compared to standard inserts.
  • WS Chipbreaker: Optimized for Medium Machining, providing excellent chip control and preventing surface marring from long chips.
  • High Productivity: Significantly reduces machining time by allowing higher feed rates while maintaining finish quality.
  • Stable Geometry: Negative 55° rhombic design ensures maximum edge strength and versatility in high-precision turning.

Technical Specifications

Model Radius (re) Feed (fn) Cut Depth (ap)
DNMG150408-WS 0.8 mm 0.10 - 0.30 0.8 - 4.0 mm
DNMG150608-WS 0.8 mm 0.10 - 0.30 0.8 - 4.0 mm

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade based on your workpiece material and machining conditions.
