DNMG-MS

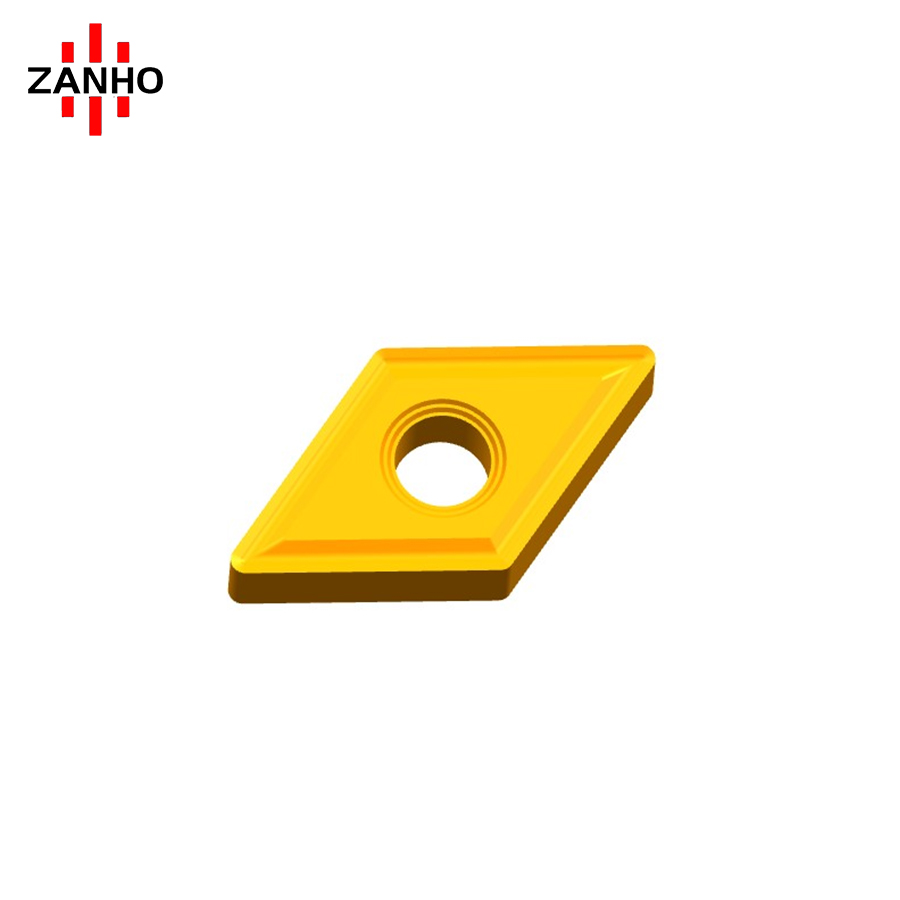

ZANHO DNMG-MS series is a heavy-duty 55° rhombic negative turning insert specifically engineered for high-efficiency Medium Machining. Featuring the specialized MS chipbreaker, it is designed to handle significant depths of cut and high feed rates, ensuring stable chip evacuation and exceptional edge strength in demanding steel and alloy turning operations.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Heavy-Duty Medium Machining: Optimized for high-efficiency medium turning to semi-roughing, providing excellent stability even under large depths of cut.

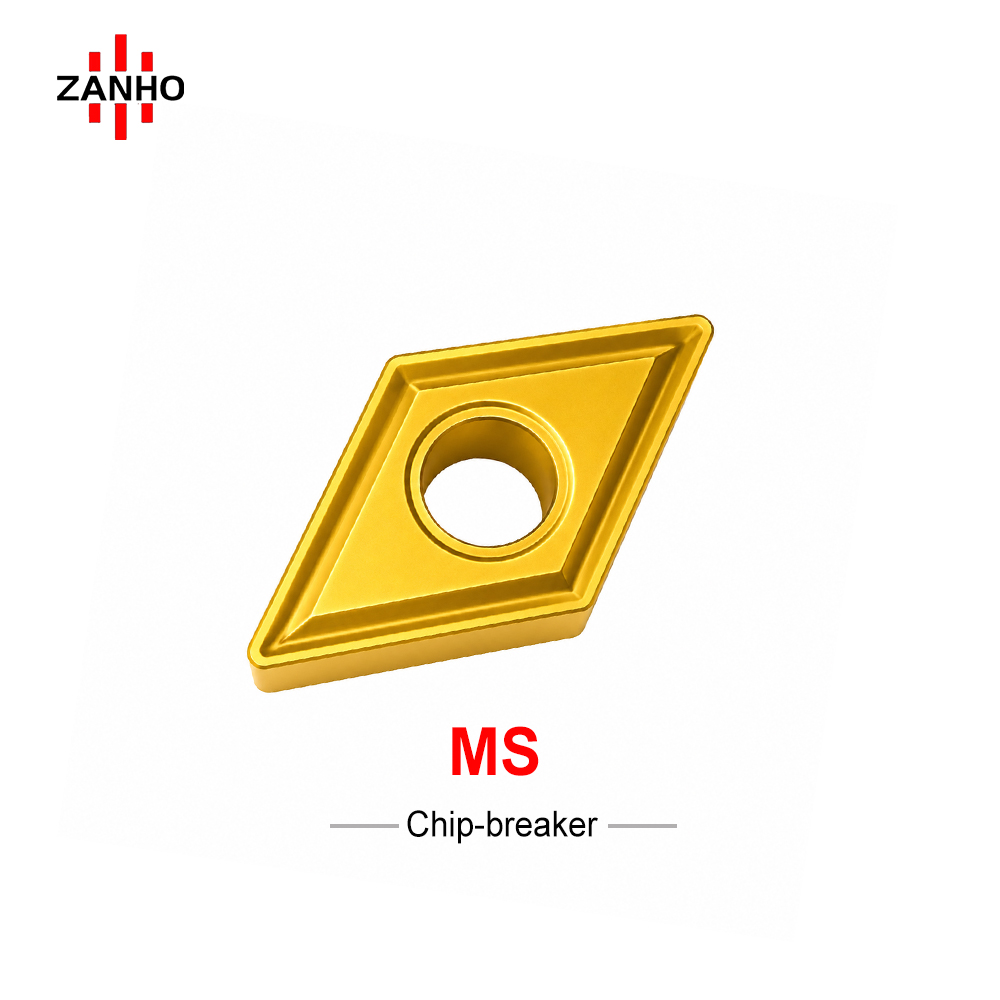

  • MS Chipbreaker Geometry: Specifically engineered for reliable chip breaking at high feed rates (up to 0.60 mm/r), effectively preventing chip entanglement in heavy turning.
  • Robust Negative Design: The negative 55-degree rhombic geometry offers superior edge toughness and four usable corners, maximizing both productivity and tool economy.
  • High Metal Removal Rate: Capable of handling cutting depths up to 6.0mm, significantly reducing machining time for large workpieces.

Technical Specifications

Model Feed (f) mm/r Cut Depth (ap) mm
DNMG150404-MS 0.25 - 0.60 2.5 - 6.0
DNMG150408-MS 0.25 - 0.60 2.5 - 6.0
DNMG150604-MS 0.25 - 0.60 2.5 - 6.0
DNMG150608-MS 0.25 - 0.60 2.5 - 6.0

Maximize Your Productivity with ZANHO

Our technical team can help you select the optimal coating and grade to achieve the best results in high-feed medium machining. Contact us for competitive global pricing.
