DNMG-VF

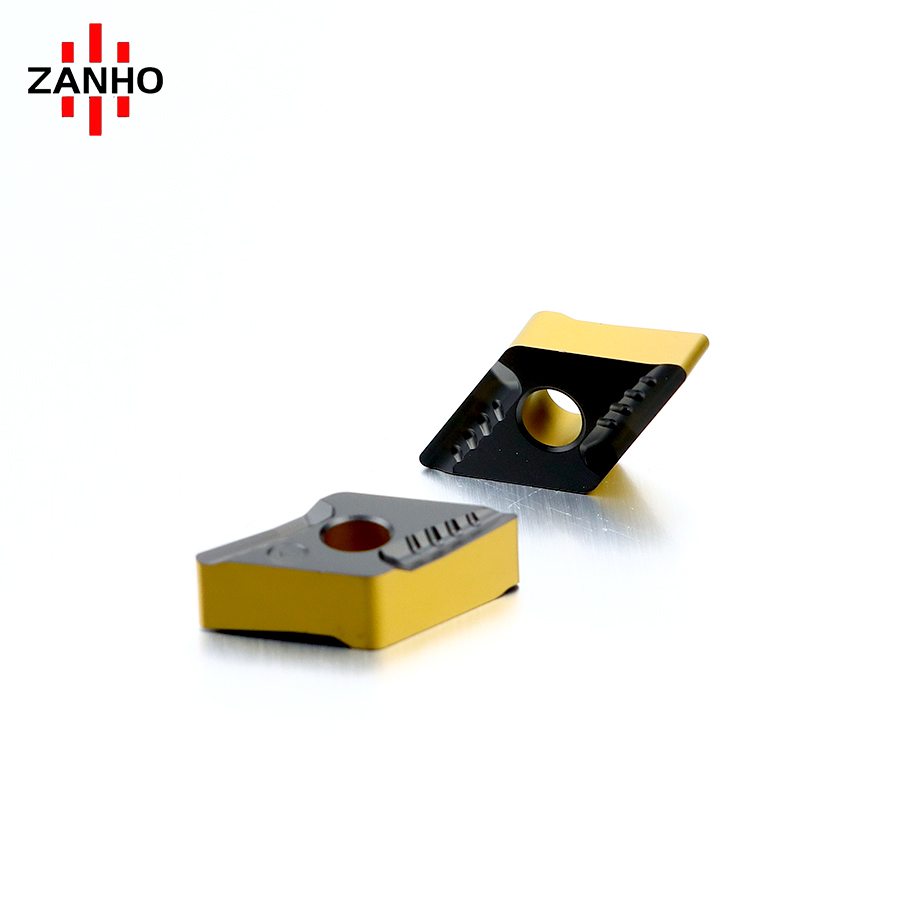

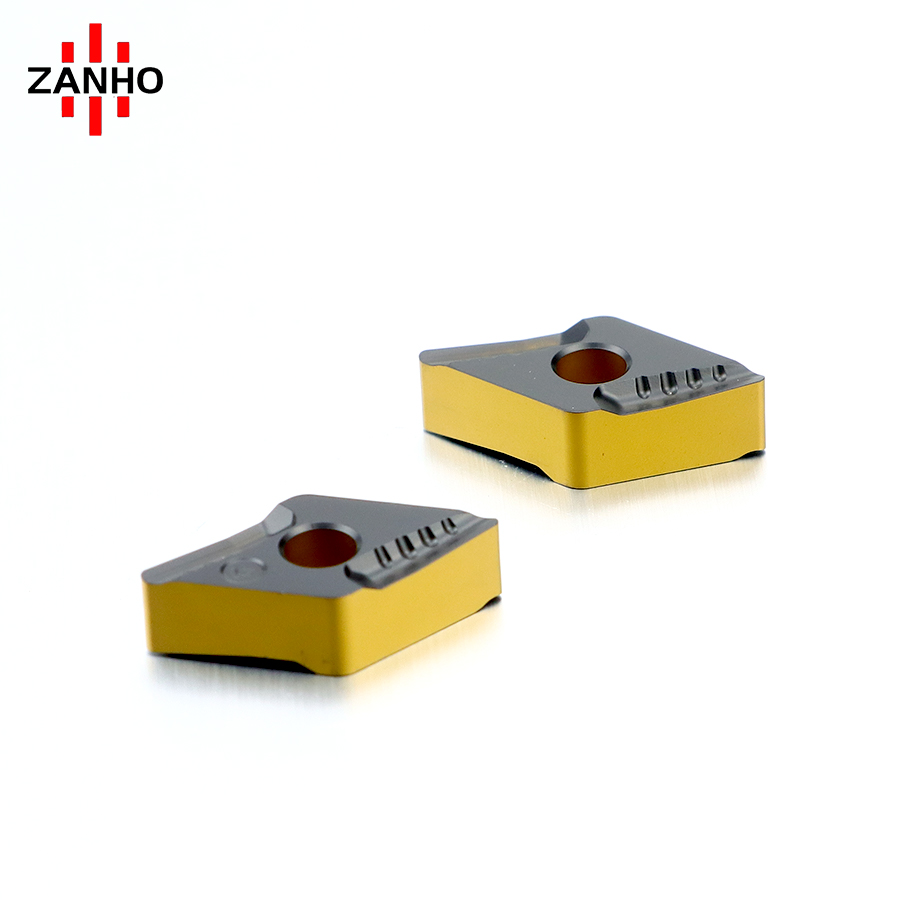

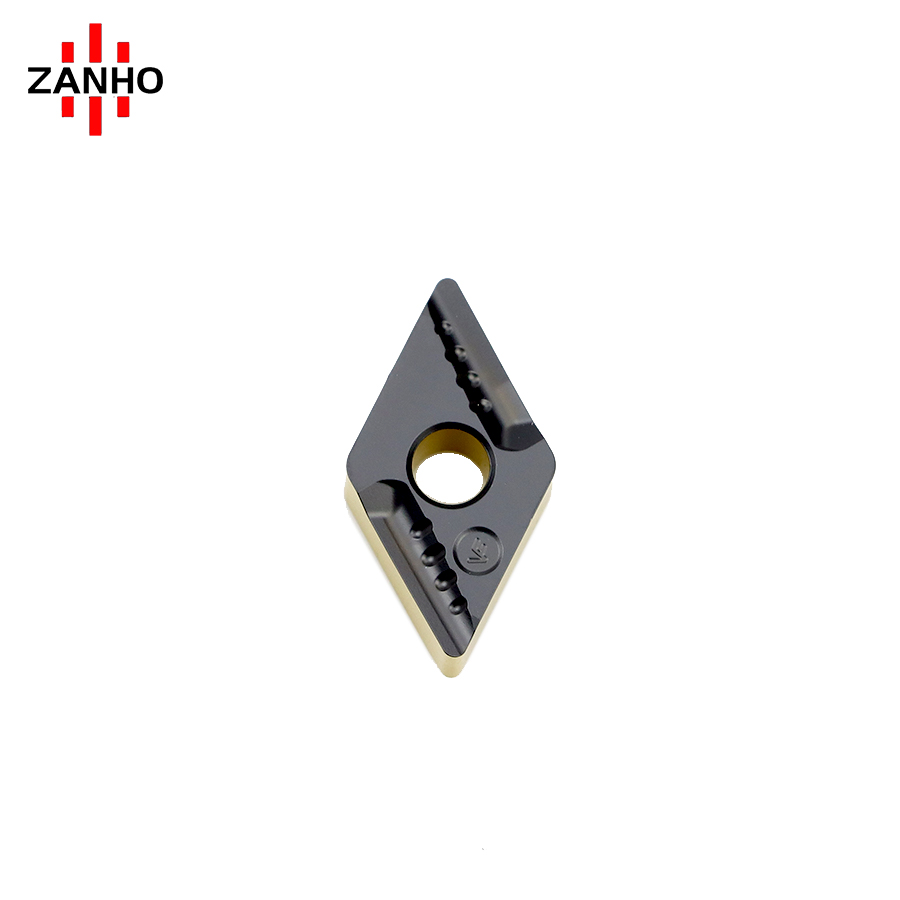

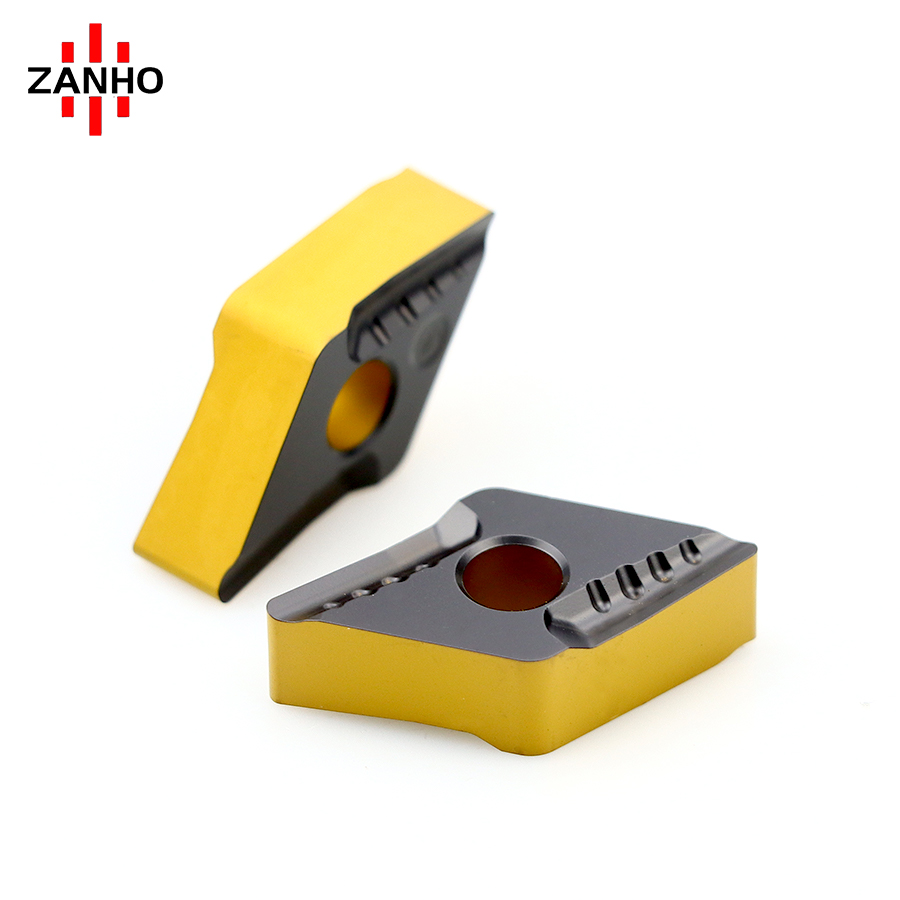

ZANHO DNMG-VF series is a high-performance 55° rhombic negative turning insert specifically optimized for Medium to Light Machining. Featuring a large positive rake angle, the VF chipbreaker is designed for effective vibration suppression, making it the ideal choice for turning slender shafts. It delivers exceptional stability and surface finish when machining steel and stainless steel components.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Vibration Suppression: Specifically engineered with a large positive rake angle to minimize chatter and deflection, ensuring precision when machining long, slender workpieces.

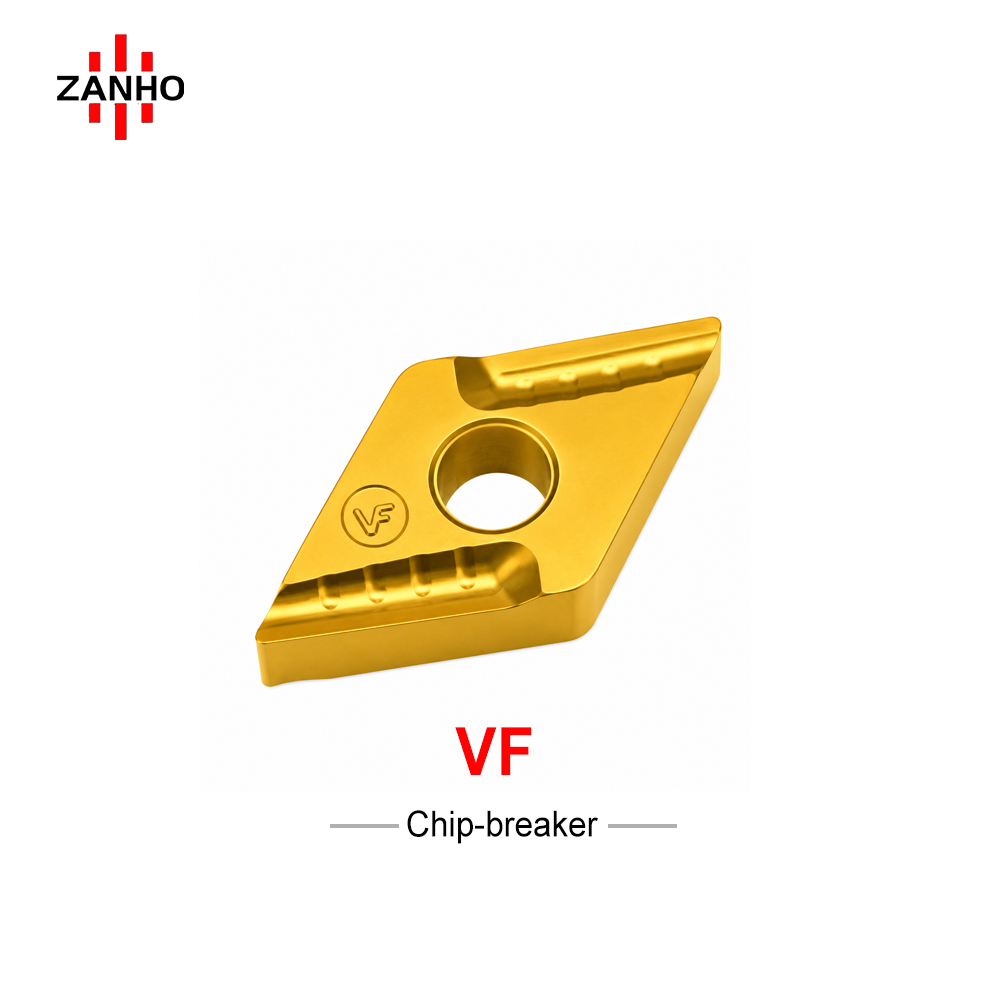

  • VF Chipbreaker Geometry: Optimized for medium to light cutting operations, providing superior chip control and reducing cutting heat.
  • Steel & Stainless Steel Specialist: Delivers excellent edge sharpness and wear resistance in both carbon steel and difficult-to-machine stainless steels.
  • Directional Precision: Available in both Left-hand (L) and Right-hand (R) configurations to suit various tool holder orientations and machining directions.

Technical Specifications

Model Feed (f) mm/r Cut Depth (ap) mm
DNMG150604L-VF 0.10 - 0.35 0.7 - 4.5
DNMG150604R-VF 0.10 - 0.35 0.7 - 4.5
DNMG150608L-VF 0.10 - 0.35 0.7 - 4.5
  DNMG150608R-VF 0.10 - 0.35 0.7 - 4.5

Solving Slender Shaft Vibration Issues?

ZANHO offers professional tooling solutions for thin-walled and long-axis machining. Contact us for bulk orders and material-specific speed (Vc) recommendations.
