DNMG-TM

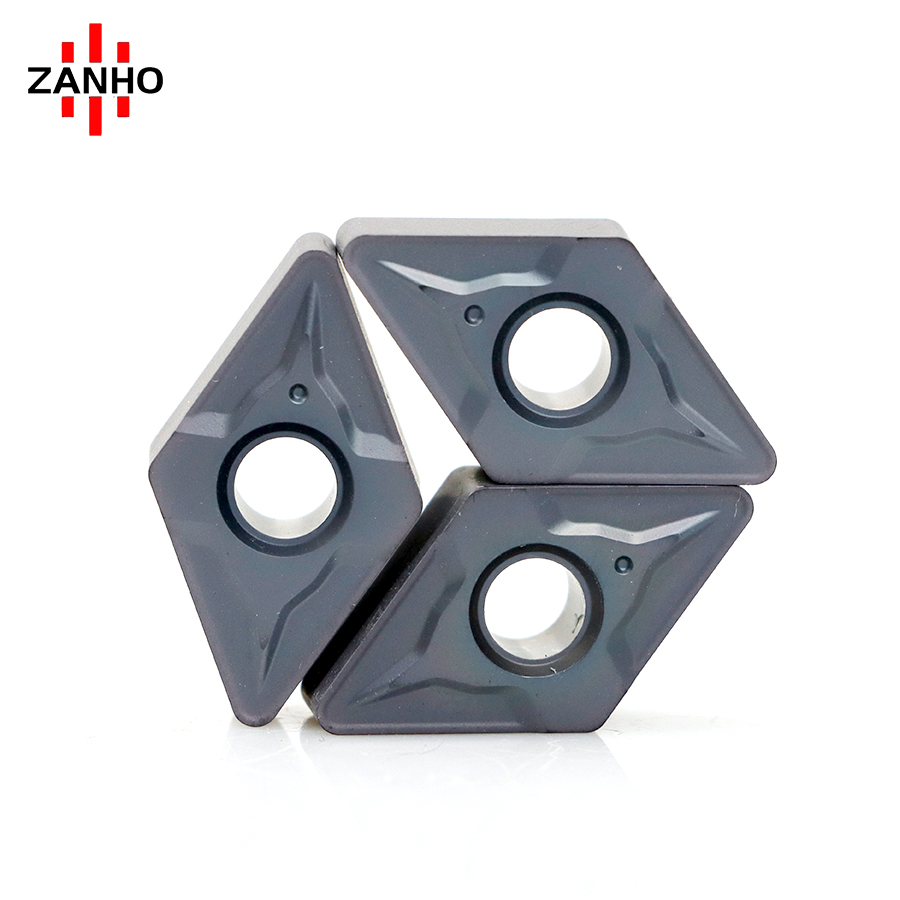

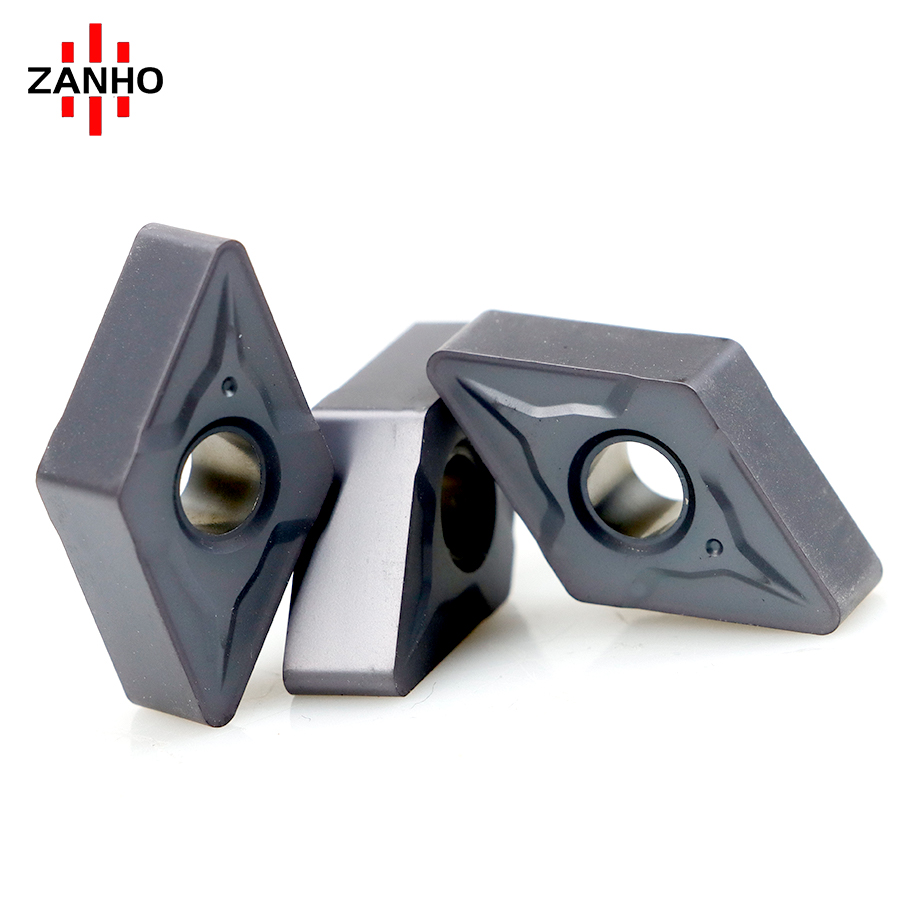

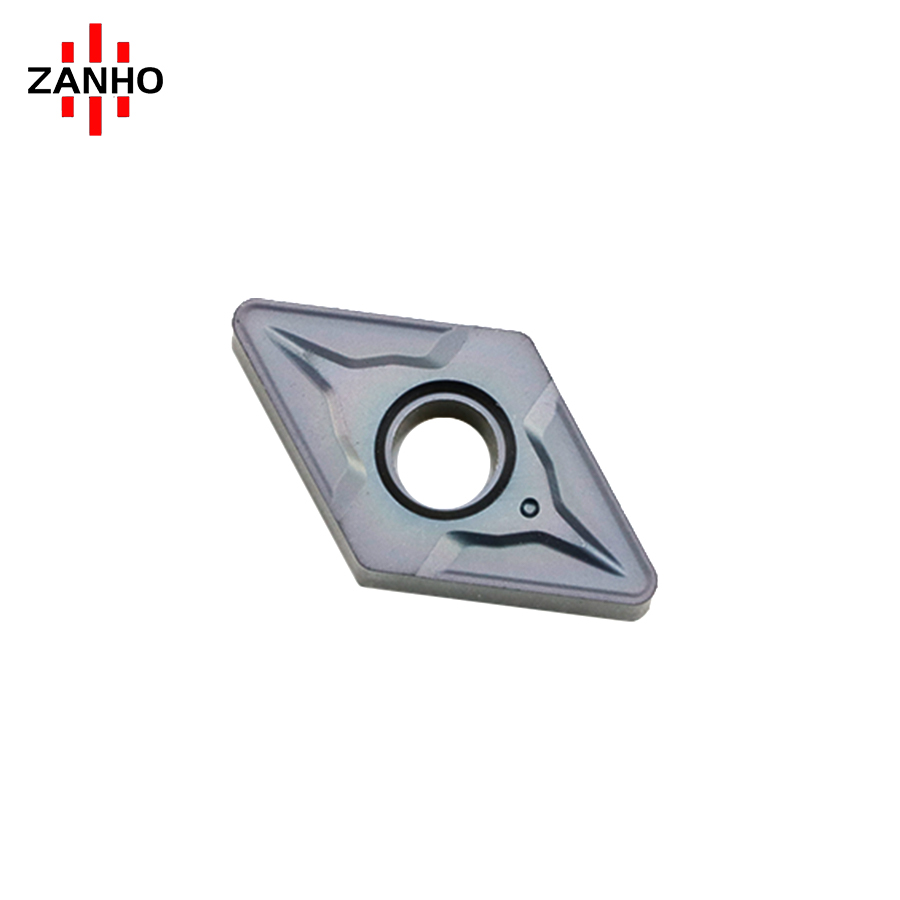

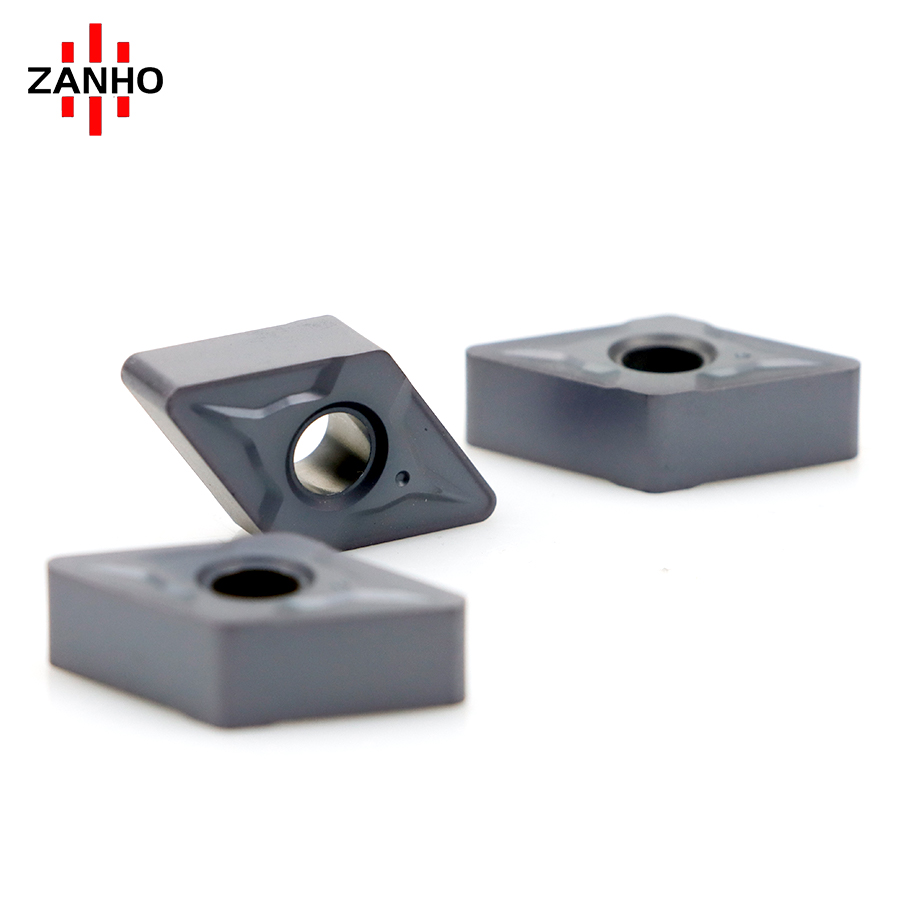

ZANHO DNMG-TM series is a heavy-duty 55° rhombic negative turning insert specifically engineered for Medium Machining. Featuring the specialized TM chipbreaker, it provides exceptional chip control and edge toughness for high-efficiency turning of steel and alloy materials. It is designed to maintain stability under medium to high feed rates and varying depths of cut in CNC operations.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Medium Machining Excellence: Optimized for stable performance in general turning to medium finishing, providing a reliable balance between tool life and high metal removal rates.

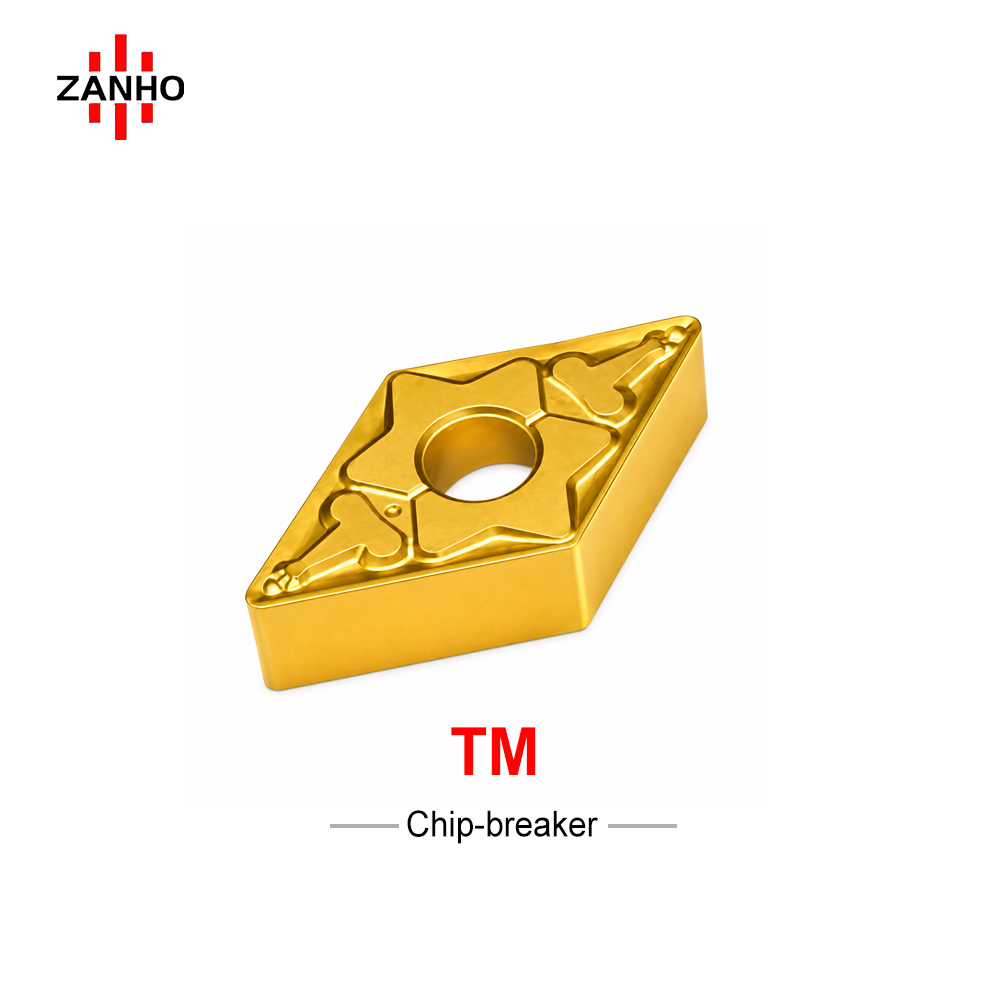

  • TM Chipbreaker Geometry: Specially engineered for wide chip control across a broad range of feed rates, effectively reducing cutting resistance and heat generation in steel turning.
  • Double-Sided Negative Design: The negative 55-degree rhombic geometry offers a robust cutting edge with four usable corners, ensuring maximum economic efficiency and edge strength.
  • Stable Tool Performance: Advanced coating technology and precision-ground edges ensure consistent dimensional accuracy and superior finish in continuous machining cycles.

Technical Specifications

Model Feed (f) mm/r Cut Depth (ap) mm
DNMG150404-TM 0.1 - 0.40 1.0 - 5.0
DNMG150408-TM 0.15 - 0.50 0.5 - 5.0
DNMG150412-TM 0.2 - 0.50 1.0 - 5.0
DNMG150604-TM 0.2 - 0.50 1.0 - 5.0
DNMG150608-TM 0.1 - 0.50 0.5 - 5.0
DNMG150612-TM 0.25 - 0.60 1.0 - 6.0

Looking for Bulk Pricing or Technical Advice?

ZANHO offers direct factory support and high-reliability carbide tools for global manufacturers. Contact us for the optimal grade selection based on your material hardness.
