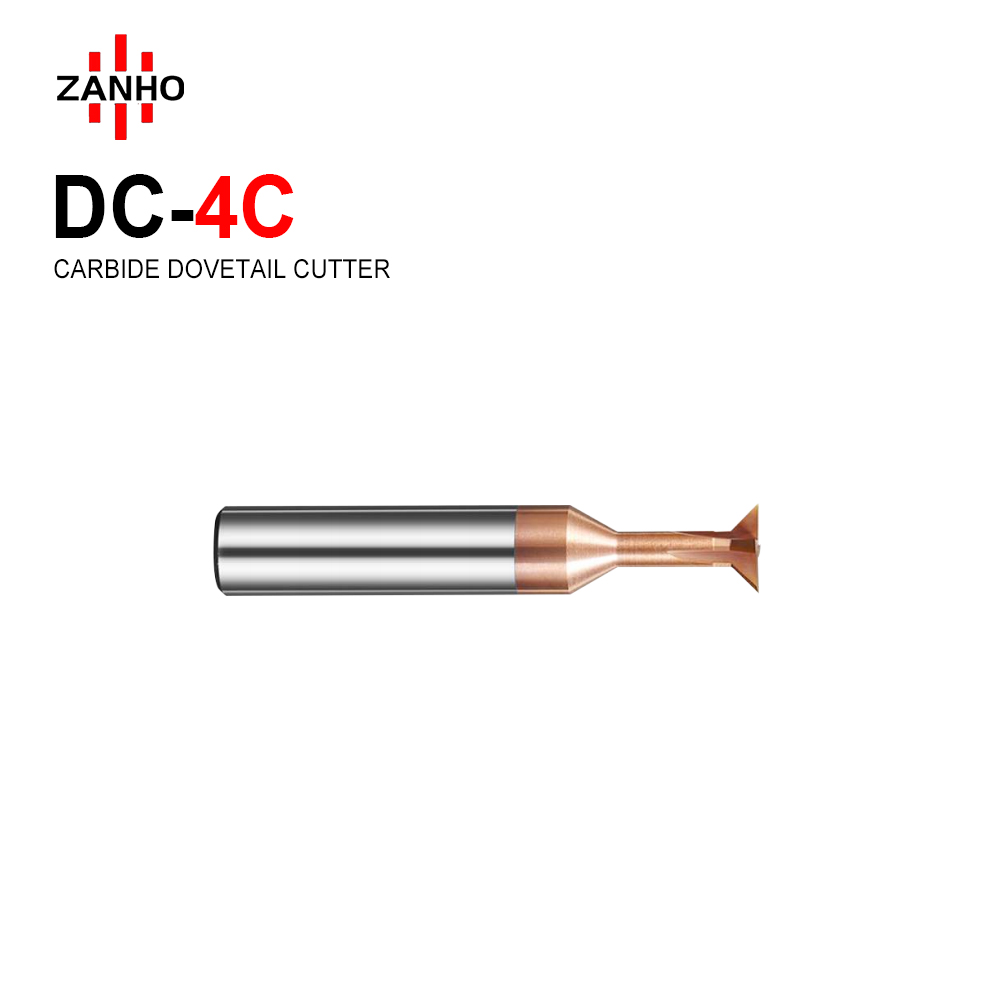

Dovetail Cutter-Steel

  • Dovetail Slotting Specialist: Specifically engineered for high-precision Dovetail Grooving and Undercutting operations, ensuring clean and accurate angular profiles.
  • Versatile Angles: Available in standard 60°, 90°, and 120° angles to meet diverse mechanical guide-way and sliding component requirements.
  • Enhanced Clearance: Features a Relieved Neck design with specific clearance lengths to allow for deep-slot machining without tool body interference.
  • Premium TIAISIN Coating: Advanced TiSiN coating offers exceptional heat resistance and tool life in high-speed CNC centers.
Categories:
Learn More
Download PDF
Description

Order Number Specification D A Clearance length Clearance diameter d1 D1 L
DC-4C-03060 D3*A60*D4*50L*4F 3 60° 6 1.4 4 50
DC-4C-03090 D3*A90*D4*50L*4F 90° 4
DC-4C-03120 D3*A120*D4*50L*4F 120° 4
DC-4C-04060 D4*A60*D4*50L*4F 4 60° 8 1.9 4 50
DC-4C-04090 D4*A90*D4*50L*4F 90° 4
DC-4C-04120 D4*A120*D4*50L*4F 120° 4
DC-4C-05090 D5*A90*D6*50L*4F 5 90° 10 2.3 6 50
DC-4C-06060 D6*A60*D6*50L*4F 6 60° 10 2.8 6 50
DC-4C-06090 D6*A90*D6*50L*4F 90° 6
DC-4C-06120 D6*A120*D6*50L*4F 120° 6
DC-4C-08060 D8*A60*D8*60L*4F 8 60° 12 3.6 8 60
DC-4C-08090 D8*A90*D8*60L*4F 90° 8
DC-4C-08120 D8*A120*D8*60L*4F 120° 8
DC-4C-10060 D10*A60*D10*60L*4F 10 60° 15 4.5 10 60
DC-4C-10090 D10*A90*D10*60L*4F 90° 10
DC-4C-10120 D10*A120*D10*60L*4F 120° 10
DC-4C-12060 D12*A60*D12*60L*4F 12 60° 18 5.4 12 60
DC-4C-12090 D12*A90*D12*60L*4F 90° 12
DC-4C-12120 D12*A120*D12*60L*4F 120° 12
DC-4C-14090 D14*A90*D14*75L*4F 14 90° 25 7 14 75
DC-4C-16090 D16*A90*D16*75L*4F 16 90° 25 8 16 75
