E**-SCLCR/L

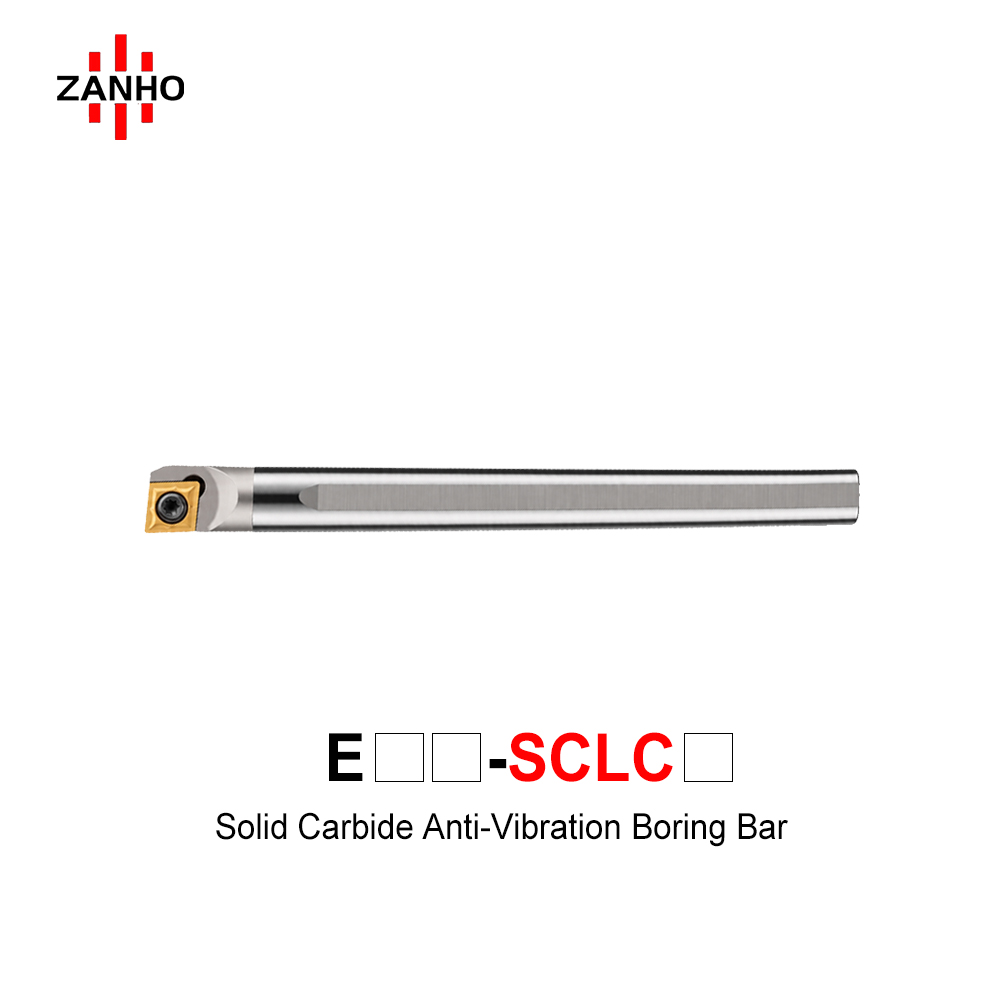

ZANHO E-SCLCR/L series: High-precision internal coolant solid tungsten steel boring bars. Featuring an integrated coolant-through design, these bars provide superior chip evacuation and temperature control directly at the cutting edge. Crafted from solid carbide for maximum rigidity and anti-vibration performance, they are the ultimate choice for high-accuracy deep hole boring in challenging materials.
Categories:
Learn More
Download PDF
Description

Technical Advantages (Internal Coolant Type)

  • Integrated Internal Coolant: Delivers high-pressure coolant directly to the cutting zone, ensuring superior chip evacuation in deep holes.
  • Maximum Thermal Control: Effectively reduces heat build-up at the edge, significantly extending insert life and improving surface finish.
  • Solid Tungsten Steel Rigidity: Solid carbide shank offers the highest level of vibration dampening for high-precision boring.
  • Deep Hole Excellence: Optimized for boring depths where standard bars fail due to chip accumulation or heat.
  • Precision Through-Hole: Precision-drilled internal channel maintains consistent coolant pressure throughout the bar.

E-SCLCR/L Series Dimensions (mm) - Internal Coolant

Model Dimensions (mm) Accessories
Left Right Dmin φd L H f Insert Screw Wrench
E04H-SCLCL03 E04H-SCLCR03 5 4 100 3.7 2.5 CC□□0301□□ M1.6x4 T6
E05H-SCLCL03 E05H-SCLCR03 6 5 100 4.4 3
E06K-SCLCL03 E06K-SCLCR03 7 6 125 5.2 3.5
E05H-SCLCL04 E05H-SCLCR04 6 5 100 4.4 3 CC□□04T1□□ M2x4 T6
E06K-SCLCL04 E06K-SCLCR04 7 6 125 5.2 3.5
E07K-SCLCL04 E07K-SCLCR04 8 7 125 6.2 4
E08K-SCLCL04 E08K-SCLCR04 9 8 125 7 4.5
E10K-SCLCL04 E10K-SCLCR04 11 10 125 9 5.5
E06K-SCLCL06 E06K-SCLCR06 9 6 125 5.2 4.5 CC□□0602□□ M2.5x6 T8
E07K-SCLCL06 E07K-SCLCR06 9 7 125 6.2 4.5
E08K-SCLCL06 E08K-SCLCR06 10 8 125 7 4.6
E10K-SCLCL06 E10K-SCLCR06 12 10 125 9 5.6
E12M-SCLCL06 E12M-SCLCR06 14 12 150 11 7
E14N-SCLCL06 E14N-SCLCR06 16 14 160 13 8
E16Q-SCLCL06 E16Q-SCLCR06 18 16 180 14.8 9
E20R-SCLCL06 E20R-SCLCR06 23 20 200 18.6 11.5
E08K-SCLCL09 E08K-SCLCR09 13 8 125 7 7.5 CC□□09T3□□ M4x6 T15
E10K-SCLCL09 E10K-SCLCR09 13 10 125 9 7
E12M-SCLCL09 E12M-SCLCR09 14 12 150 11 7 M4x8
E14N-SCLCL09 E14N-SCLCR09 16 14 160 13 8.2
E16Q-SCLCL09 E16Q-SCLCR09 18 16 180 14.8 9
E18Q-SCLCL09 E18Q-SCLCR09 20 18 180 16.6 10
E20R-SCLCL09 E20R-SCLCR09 23 20 200 18.6 11.5
E25S-SCLCL09 E25S-SCLCR09 29 25 250 23 14.5 M4x10
E32T-SCLCL09 E32T-SCLCR09 38 32 300 30 20
E40T-SCLCR09 E40T-SCLCR09 46 40 300 37 24
E20R-SCLCL12 E20R-SCLCR12 24 20 200 18.6 12 CC□□1204□□ M5x10 T20
E25S-SCLCL12 E25S-SCLCR12 29 25 250 23 14.5 M5x12
E32T-SCLCL12 E32T-SCLCR12 38 32 300 30 20
E40T-SCLCL12 E40T-SCLCR12 46 40 300 37 24
