FD Grooving Inserts

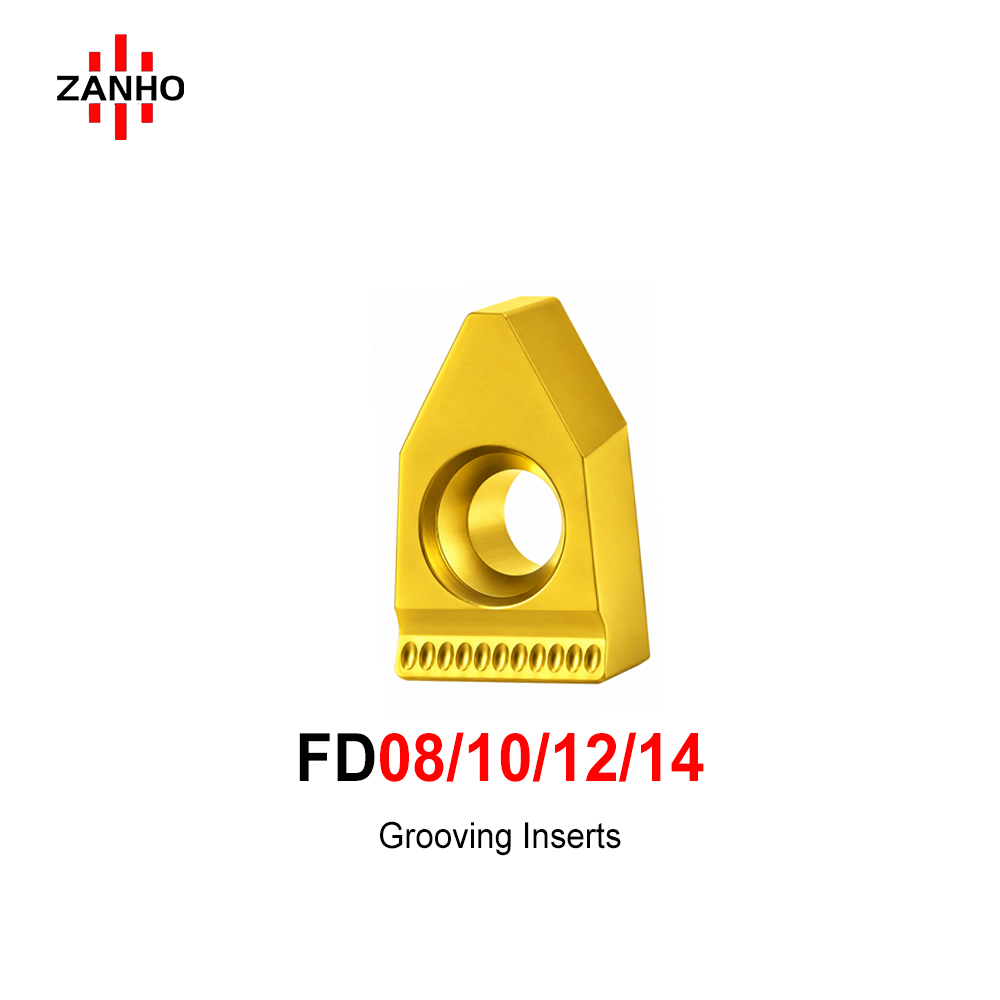

ZANHO FD series: Professional large depth grooving inserts with a specialized single-ended cantilever structure. Engineered for ultra-deep external circular and face grooving, these inserts achieve a remarkable 22-32mm single-pass depth. Featuring a reinforced body and multi-elliptical chipbreaker, the FD series delivers exceptional stability and chip control for heavy-duty deep slotting operations.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • Extreme Depth of Cut: Single-ended cantilever design allows for 22-32mm single-side cutting depth, far exceeding standard double-edged inserts.
  • Optimized Deep Slot Chipbreaker: Multi-row elliptical arc chipbreakers facilitate mandatory chip curling at large depths and high feed rates.
  • Reinforced Tool Body: Increased thickness enhances overall rigidity, effectively resisting heavy cutting forces and minimizing chatter risk.
  • Dedicated Toolholding: Standardized bore positioning perfectly matches MTEHR series large-depth tool holders.
  • Durable Cutting Edge: Negative chamfer reinforcement provides excellent impact resistance, suitable for interrupted cutting conditions.
  • Open Chip Flow: Single-edge open geometry ensures smooth chip evacuation and prevents surface scratching in deep grooves.

FD Series Specifications & Dimensions

Model Width W (mm) Radius R (mm) Max apmax (mm) Thickness S (mm) Height L (mm) Base Width Wb (mm) Bore φ (mm) Edges
FD-08-R0.6 8.00 0.6 22 4.90 14.80 9.40 4.3 1
FD-10-R0.6 10.00 0.6 25 4.90 15.75 10.00 4.3 1
FD-12-R1.0 12.00 1.0 28 6.10 17.20 12.00 4.3 1
FD-14-R1.0 14.00 1.0 32 6.10 18.00 14.00 4.3 1

*Note: Single-edged design. Must be used with dedicated MTEHR tool holders. Not compatible with standard MGEHR cutoff bars.

Looking for the right specification, grade, or coating for your market?

Send us your requirements below. Our sales team will provide product recommendations, competitive pricing, and OEM options based on your needs. For distributors, wholesalers & importers — bulk order inquiries are welcome.

Fill in the form below and get your quotation.
