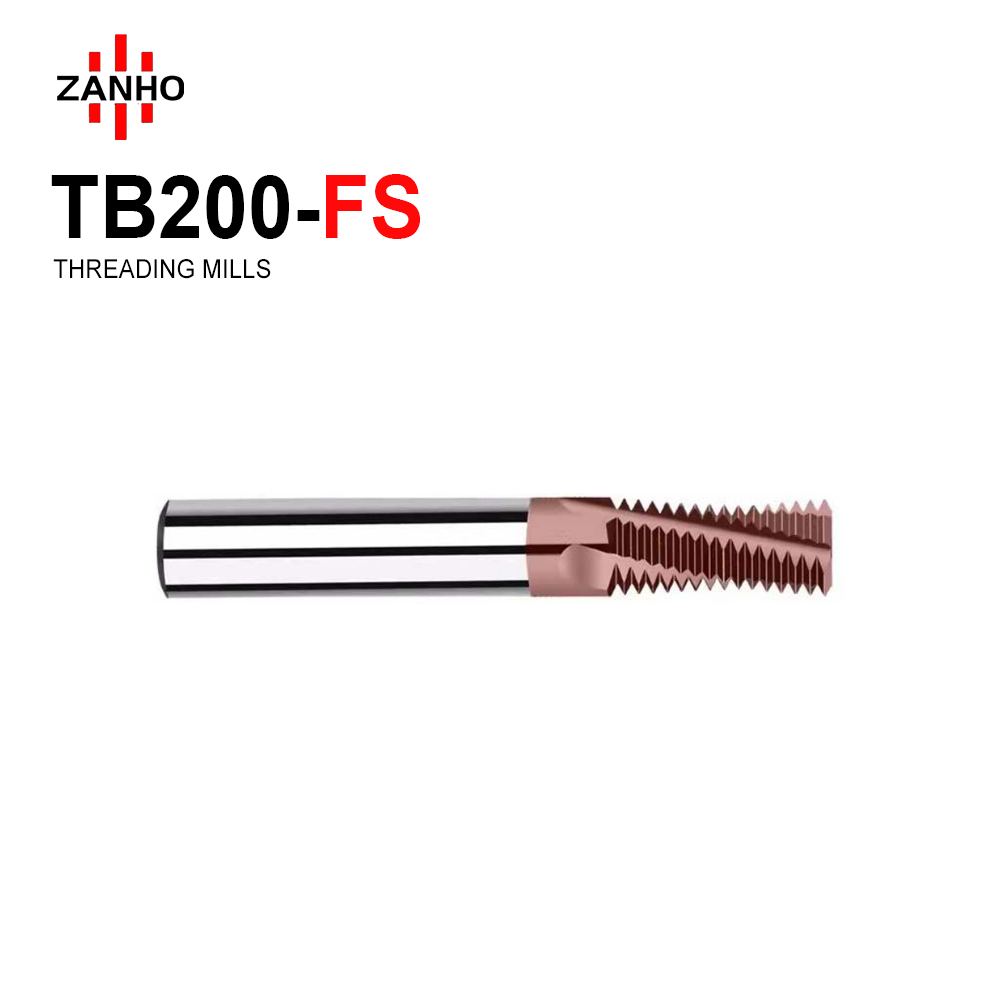

Full Profile for Hardened Steel

  • Maximum Productivity: The Full-Profile Design enables cutting the complete thread depth in a single operation (or minimal passes), drastically reducing cycle times in hardened materials.
  • Hardened Steel Specialist: Engineered specifically for the most demanding applications in Hardened Materials (up to 62 HRC) and heat-treated mold steels.
  • High Rigidity & Stability: Specialized tool geometry minimizes deflection and vibration, delivering a superior surface finish in high-hardness internal cavities.
  • Extreme Durability: Made from premium sub-micron grain carbide to provide maximum toughness and anti-chipping performance in tough metals.
Categories:
Learn More
Download PDF
Description

订货号 Order Number 规格 Specification 刀径 D 有效长 L1 柄径 D1 总长 L
TB200-FS-0160350 M1.6x0.35 1.2 3.5 4 50
TB200-FS-0200400 M2x0.4 1.54 5 4 50
TB200-FS-0250450 M2.5x0.45 1.96 6 4 50
TB200-FS-0300500 M3x0.5 2.4 7.5 4 50
TB200-FS-0350600 M3.5x0.6 2.75 8.5 4 50
TB200-FS-0400500 M4x0.5 3 8 4 50
TB200-FS-0400700 M4x0.7 3.15 10 4 50
TB200-FS-0450750 M4.5x0.75 3.4 9 4 50
TB200-FS-0500500 M5x0.5 3.9 12 4 50
TB200-FS-4500800 M5x0.8 3.95 12 4 50
TB200-FS-0500800 M5x0.8 3.9 13 6 50
TB200-FS-0600500 M6x0.5 4.8 13 6 50
TB200-FS-0600750 M6x0.75 3.9 12 4 50
TB200-FS-0600750 M6x0.75 5 17 6 50
TB200-FS-0601000 M6x1.0 3.95 12 4 50
TB200-FS-0601000 M6x1.0 4.75 13 6 50
TB200-FS-0800500 M8x0.5 5.9 16 6 60
TB200-FS-0800750 M8x0.75 5.95 18 6 60
TB200-FS-0801000 M8x1.0 5.95 15 6 60
TB200-FS-0801250 M8x1.25 5.9 15 6 60
TB200-FS-1000500 M10x0.5 7.9 20 8 65
TB200-FS-1000750 M10x0.75 7.9 22 8 65
TB200-FS-1001000 M10x1.0 7.9 22 8 65
TB200-FS-1001250 M10x1.25 7.9 20 8 65
TB200-FS-1001500 M10x1.5 7.7 22 8 65
TB200-FS-1200500 M12x0.5 9.95 25 10 75
TB200-FS-1200750 M12x0.75 9.95 20 10 75
TB200-FS-1201000 M12x1.0 9.9 28 10 75
TB200-FS-1201250 M12x1.25 9.9 25 10 75
TB200-FS-1201500 M12x1.5 9.4 24 10 75
TB200-FS-1201750 M12x1.75 9.5 25 10 75
TB200-FS-1401000 M14x1.0 11.9 30 12 75
TB200-FS-1401500 M14x1.5 9.9 25 10 75
TB200-FS-1401500 M14x1.5 11.2 30 12 75
TB200-FS-1402000 M14x2.0 9.9 30 10 75
TB200-FS-1402000 M14x2.0 11.2 30 12 75
TB200-FS-1601000 M16x1.0 11.9 30 12 75
TB200-FS-1601000 M16x1.0 13.9 33 14 100
TB200-FS-1601500 M16x1.5 11.9 30 12 75
TB200-FS-1602000 M16x2.0 11.9 30 12 75
TB200-FS-1802000 M18x2.0 13.9 33 14 100
TB200-FS-1802500 M18x2.5 13.9 33 14 100
TB200-FS-1802500 M18x2.5 13.9 40 16 100
TB200-FS-2001000 M20x1.0 16 40 16 100
TB200-FS-2001250 M20x1.25 16 40 16 100
TB200-FS-2001500 M20x1.5 15.95 40 16 100
TB200-FS-2002000 M20x2.0 15.95 40 16 100
TB200-FS-2002500 M20x2.5 15.9 40 16 100
TB200-FS-2403000 M24x3.0 15.9 40 16 100
TB200-FS-3003500 M30x3.5 15.9 40 16 100
TB200-FS-3604000 M36x4.0 20 40 20 100
