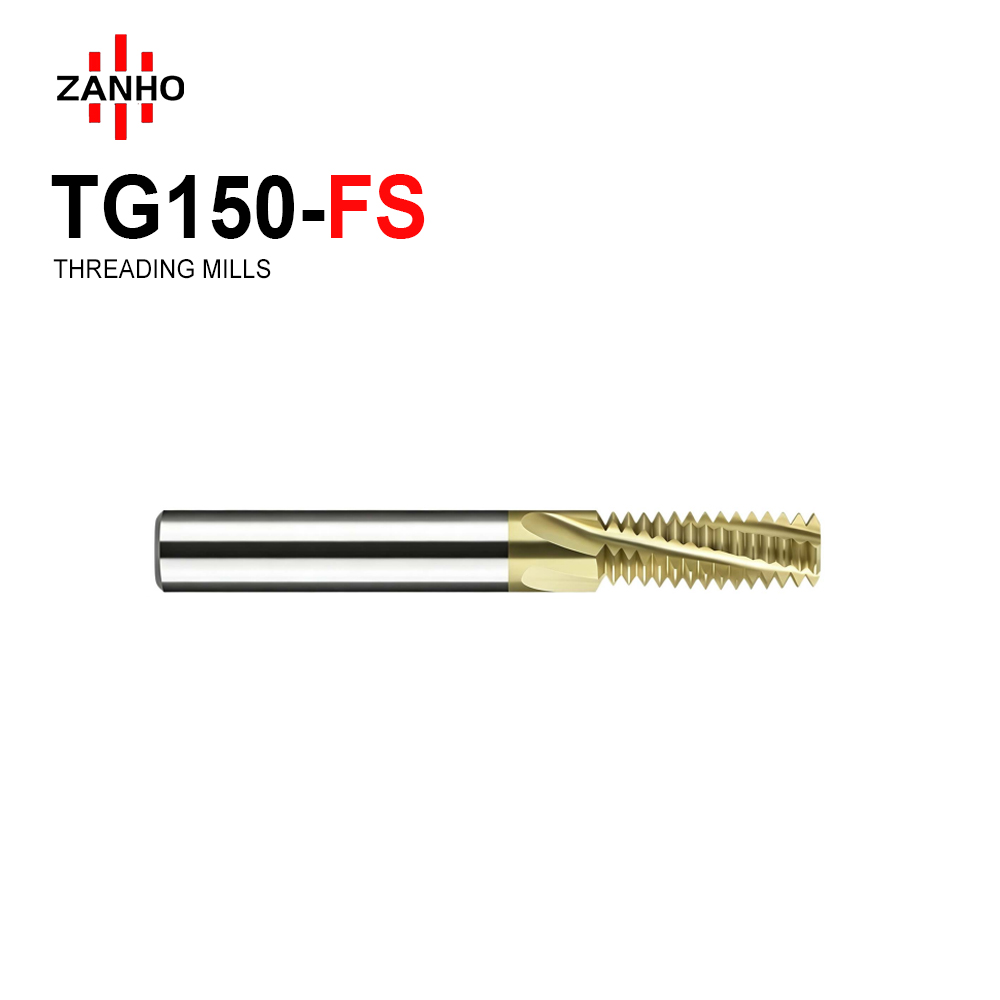

TG150-FS | ISO Full-Profile Carbide Thread Mill for Titanium

Ultimate Productivity: Full-Profile Design allows for cutting the complete thread depth in a single operation (or minimal passes), drastically reducing cycle times in titanium alloys.
Titanium Machining Expert: Precision-engineered for optimal performance in Titanium Alloy, Inconel, and Heat-Resistant Alloys (Workpiece Category S).
Superior Thermal Protection: Features an advanced heat-resistant coating to maintain edge sharpness and prevent material adhesion in the extreme heat of titanium cutting.
Aviation Grade Substrate: Made from premium sub-micron grain carbide for maximum toughness and anti-chipping durability in abrasive materials.

Categories: Thread Mills

Download PDF

Ultimate Productivity: Full-Profile Design allows for cutting the complete thread depth in a single operation (or minimal passes), drastically reducing cycle times in titanium alloys.
Titanium Machining Expert: Precision-engineered for optimal performance in Titanium Alloy, Inconel, and Heat-Resistant Alloys (Workpiece Category S).
Superior Thermal Protection: Features an advanced heat-resistant coating to maintain edge sharpness and prevent material adhesion in the extreme heat of titanium cutting.
Aviation Grade Substrate: Made from premium sub-micron grain carbide for maximum toughness and anti-chipping durability in abrasive materials.

订货号 Order Number	规格 Specification	刀径 D	有效长 L1	柄径 D1	总长 L
TG150-FS-0160350	M1.6x0.35	1.2	3.5	4	50
TG150-FS-0200400	M2x0.4	1.54	5	4	50
TG150-FS-0250450	M2.5x0.45	1.96	6	4	50
TG150-FS-0300500	M3x0.5	2.4	7.5	4	50
TG150-FS-0350600	M3.5x0.6	2.75	8.5	4	50
TG150-FS-0400500	M4x0.5	3	8	4	50
TG150-FS-0400700	M4x0.7	3.15	10	4	50
TG150-FS-0450750	M4.5x0.75	3.4	9	4	50
TG150-FS-4500500	M5x0.5	3.9	12	4	50
TG150-FS-4500800	M5x0.8	3.95	12	4	50
TG150-FS-0500800	M5x0.8	3.9	13	6	50
TG150-FS-0600500	M6x0.5	4.8	13	6	50
TG150-FS-4600750	M6x0.75	3.9	12	4	50
TG150-FS-0600750	M6x0.75	5	17	6	50
TG150-FS-4601000	M6x1.0	3.95	12	4	50
TG150-FS-0601000	M6x1.0	4.75	13	6	50
TG150-FS-0800500	M8x0.5	5.9	16	6	60
TG150-FS-0800750	M8x0.75	5.95	18	6	60
TG150-FS-0801000	M8x1.0	5.95	15	6	60
TG150-FS-0801250	M8x1.25	5.9	15	6	60
TG150-FS-1000500	M10x0.5	7.9	20	8	65
TG150-FS-1000750	M10x0.75	7.9	22	8	65
TG150-FS-1001000	M10x1.0	7.9	22	8	65
TG150-FS-1001250	M10x1.25	7.9	20	8	65
TG150-FS-1001500	M10x1.5	7.7	22	8	65
TG150-FS-1200500	M12x0.5	9.95	25	10	75
TG150-FS-1200750	M12x0.75	9.95	20	10	75
TG150-FS-1201000	M12x1.0	9.9	28	10	75
TG150-FS-1201250	M12x1.25	9.9	25	10	75
TG150-FS-1201500	M12x1.5	9.4	24	10	75
TG150-FS-1201750	M12x1.75	9.5	25	10	75
TG150-FS-1401000	M14x1.0	11.9	30	12	75
TG150-FS-1401500	M14x1.5	9.9	25	10	75
TG150-FS-1401500	M14x1.5	11.2	30	12	75
TG150-FS-1402000	M14x2.0	9.9	30	10	75
TG150-FS-1402000	M14x2.0	11.2	30	12	75
TG150-FS-1601000	M16x1.0	11.9	30	12	75
TG150-FS-1601000	M16x1.0	13.9	33	14	100
TG150-FS-1601500	M16x1.5	11.9	30	12	75
TG150-FS-1602000	M16x2.0	11.9	30	12	75
TG150-FS-1801500	M18x1.5	13.9	33	14	83
TG150-FS-1802000	M18x2.0	13.9	33	14	100
TG150-FS-1802500	M18x2.5	13.9	33	14	100
TG150-FS-1802500	M18x2.5	13.9	40	16	100
TG150-FS-2001000	M20x1.0	16	40	16	100
TG150-FS-2001250	M20x1.25	16	40	16	100
TG150-FS-2001500	M20x1.5	15.95	40	16	100
TG150-FS-2002000	M20x2.0	15.95	40	16	100
TG150-FS-2002500	M20x2.5	15.9	40	16	100
TG150-FS-2403000	M24x3.0	15.9	40	16	100
TG150-FS-3003500	M30x3.5	15.9	40	16	100
TG150-FS-3604000	M36x4.0	20	40	20	100
