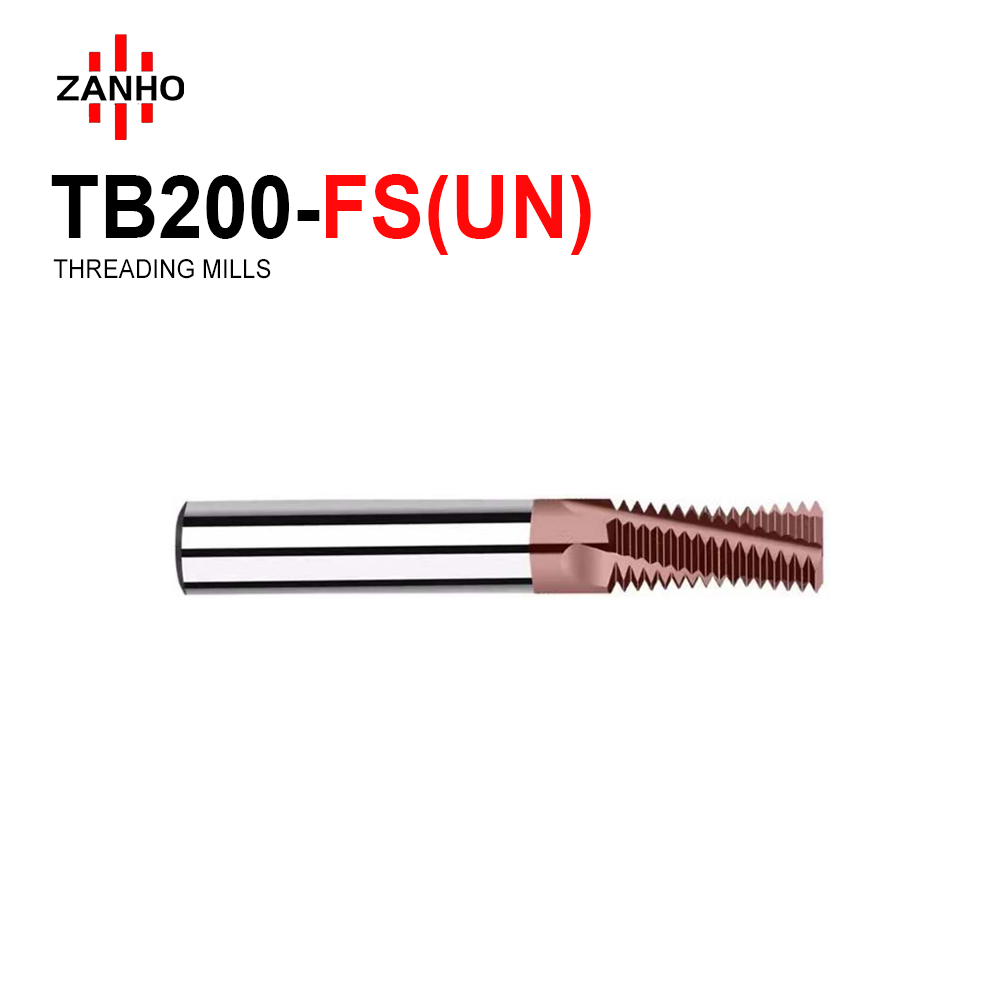

Full Profile UN for Hardened Steel

  • Ultimate Productivity: The Full-Profile Design enables cutting the complete thread depth in a single operation (or minimal passes), drastically reducing cycle times in hardened American standard components.
  • Hardened Steel Specialist: Specifically engineered for high-precision threading in Hardened Materials (up to 62 HRC) and heat-treated mold steels.
  • Complete UN Standard Coverage: Precision-ground geometry for American Unified Threads, covering UNC (Coarse), UNF (Fine), UNEF (Extra Fine), and UNS (Special) specifications.
  • Broad Capacity Range: Extensive range covering micro #2-56UNC threads up to large-scale 1" industrial thread tasks.
Categories:
Learn More
Download PDF
Description

订货号 Order Number 规格 Specification 刀径 D 有效长 L1 柄径 D1 总长 L
TB200-FS-020056UNC 2-56UNC 1.65 6 4 50
TB200-FS-040040UNC 4-40UNC 2.13 7 4 50
TB200-FS-060032UNC 6-32UNC 2.56 8 4 50
TB200-FS-080032UNC 8-32UNC 3.2 11 4 50
TB200-FS-100024UNC 10-24UNC 3.6 11 4 50
TB200-FS-100032UNF 10-32UNF 3.8 10 4 50
TB200-FS-100048UNS 10-48UNS 4.1 12 6 50
TB200-FS-010420UNC 1/4-20UNC 4.9 13 6 50
TB200-FS-010428UNF 1/4-28UNF 4.6 15 6 50
TB200-FS-051618UNC 5/16-18UNC 6 17 6 60
TB200-FS-051624UNF 5/16-24UNF 5.9 17 6 60
TB200-FS-030816UNC 3/8-16UNC 7.65 20 8 65
TB200-FS-030818UNS 3/8-18UNS 7.95 20 8 65
TB200-FS-030824UNF 3/8-24UNF 7.4 20 8 65
TB200-FS-03832UNEF 3/8-32UNEF 7.9 20 8 65
TB200-FS-071614UNC 7/16-14UNC 7.6 23.6 8 60
TB200-FS-071620UNF 7/16-20UNF 8.5 23 10 75
TB200-FS-071628UNEF 7/16-28UNEF 7.9 20 8 60
TB200-FS-010213UNC 1/2-13UNC 9.5 25 10 75
TB200-FS-010220UNF 1/2-20UNF 9.9 25 10 75
TB200-FS-050811UNC 5/8-11UNC 11.95 35 12 83
TB200-FS-050818UNF 5/8-18UNF 11.95 30 12 83
TB200-FS-091612UNC 9/16-12UNC 11.8 28.6 12 75
TB200-FS-091618UNF 9/16-18UNF 10 30 10 75
TB200-FS-091618UNF-2 9/16-18UNF 11.95 30 12 83
TB200-FS-091624UNEF 9/16-24UNEF 11.9 30 12 75
TB200-FS-030410UNC 3/4-10UNC 14.5 40 16 100
TB200-FS-030416UNF-1 3/4-16UNF 12 28 25 75
TB200-FS-030416UNF-2 3/4-16UNF 15.9 40 16 100
TB200-FS-030420UNEF 3/4-20UNEF 11.9 30 12 75
TB200-FS-070809UNC 7/8-9UNC 15.95 45 16 100
TB200-FS-070814UNF-1 7/8-14UNF 11.6 25 12 75
TB200-FS-070814UNF-2 7/8-14UNF 15.9 40 16 100
TB200-FS-070828UN 7/8-28UN 12 25 12 75
TB200-FS-161008UNC 1'-8UNC 16 40 16 100
TB200-FS-100008UNC 1'-8UNC 19.95 50 20 100
TB200-FS-100012UNF 1'-12UNF 16 40 16 100
TB200-FS-100032UN 1'-32UN 12 20 12 75
