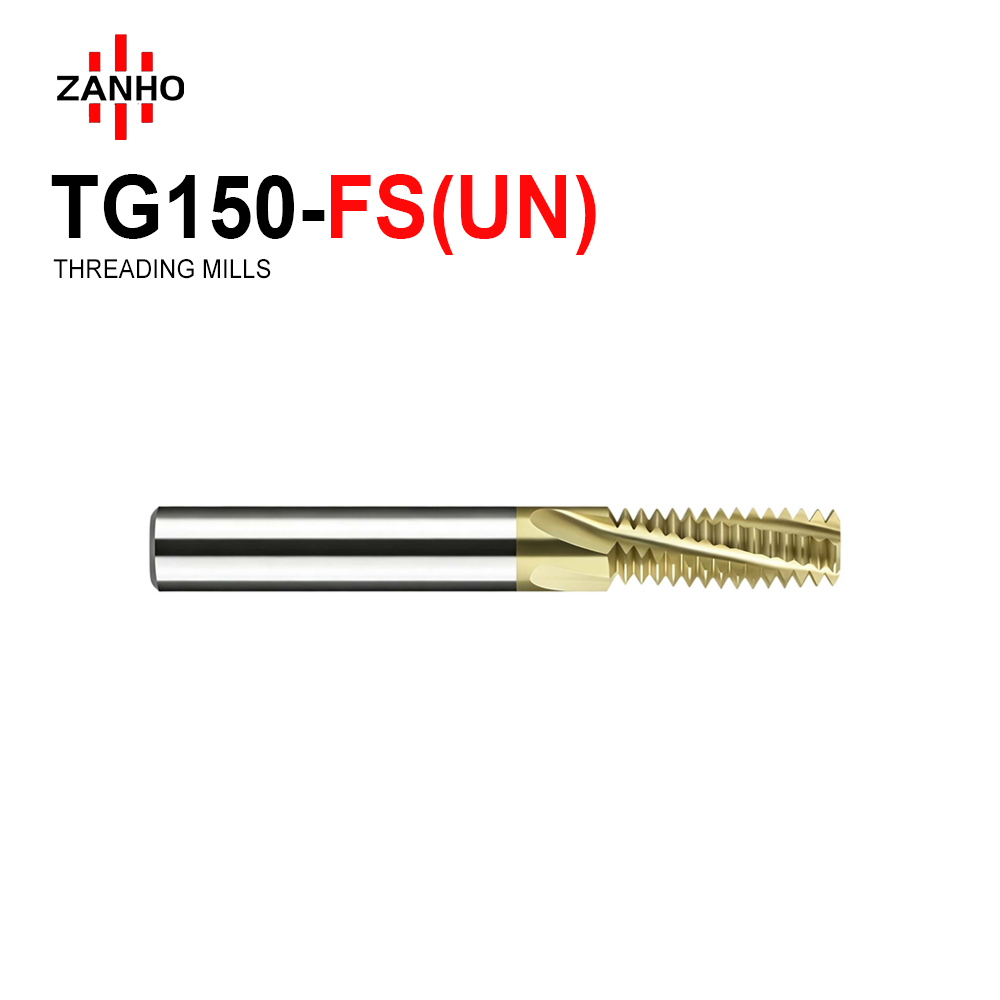

Full Profile UN for Titanium Alloy

  • Ultimate Productivity: The Full-Profile Design allows for cutting the complete thread depth in a single operation (or minimal passes), drastically reducing cycle times in tough titanium alloys.
  • Titanium Machining Expert: Specifically engineered for optimal performance in Titanium Alloy, Inconel, and Heat-Resistant Alloys (Workpiece Category S).
  • Complete UN Standard Coverage: Precision-ground geometry for American Unified Threads, covering UNC (Coarse), UNF (Fine), UNEF (Extra Fine), and UNS (Special) specifications.
  • Aviation Grade Substrate: Made from premium sub-micron grain carbide for maximum toughness and anti-chipping durability in abrasive materials.
Categories:
Learn More
Download PDF
Description

订货号 Order Number 规格 Specification 刀径 D 有效长 L1 柄径 D1 总长 L
TG150-FS-020056UNC 2-56UNC 1.65 6 4 50
TG150-FS-040040UNC 4-40UNC 2.13 7 4 50
TG150-FS-060032UNC 6-32UNC 2.56 8 4 50
TG150-FS-080032UNC 8-32UNC 3.2 11 4 50
TG150-FS-100024UNC 10-24UNC 3.6 11 4 50
TG150-FS-100032UNF 10-32UNF 3.8 10 4 50
TG150-FS-10048UNS 10-48UNS 4.1 12 6 50
TG150-FS-010420UNC 1/4-20UNC 4.9 13 6 50
TG150-FS-010428UNF 1/4-28UNF 4.6 15 6 50
TG150-FS-051618UNC 5/16-18UNC 6 17 6 60
TG150-FS-051624UNF 5/16-24UNF 5.9 17 6 60
TG150-FS-030816UNC 3/8-16UNC 7.65 20 8 65
TG150-FS-030818UNS 3/8-18UNS 7.95 20 8 65
TG150-FS-030824UNF 3/8-24UNF 7.4 20 8 65
TG150-FS-03832UNEF 3/8-32UNEF 7.9 20 8 65
TG150-FS-071614UNC 7/16-14UNC 7.6 23.6 8 60
TG150-FS-071620UNF 7/16-20UNF 8.5 23 10 75
TG150-FS-071628UNEF 7/16-28UNEF 7.9 20 8 60
TG150-FS-010213UNC 1/2-13UNC 9.5 25 10 75
TG150-FS-010220UNF 1/2-20UNF 9.9 25 10 75
TG150-FS-050811UNC 5/8-11UNC 11.95 35 12 83
TG150-FS-050818UNF 5/8-18UNF 11.95 30 12 83
TG150-FS-091612UNC 9/16-12UNC 11.8 28.6 12 75
TG150-FS-091618UNF 9/16-18UNF 10 30 10 75
TG150-FS-091618UNF 9/16-18UNF 11.95 30 12 83
TG150-FS-091624UNEF 9/16-24UNEF 11.9 30 12 75
TG150-FS-030410UNC 3/4-10UNC 14.5 40 16 100
TG150-FS-030416UNF 3/4-16UNF 12 28 25 75
TG150-FS-030416UNF 3/4-16UNF 15.9 40 16 100
TG150-FS-030420UNEF 3/4-20UNEF 11.9 30 12 75
TG150-FS-070809UNC 7/8-9UNC 15.95 45 16 100
TG150-FS-070814UNF 7/8-14UNF 11.6 25 12 75
TG150-FS-070814UNF 7/8-14UNF 15.9 40 16 100
TG150-FS-070828UN 7/8-28UN 12 25 12 75
TG150-FS-161008UNC 1'-8UNC 16 40 16 100
TG150-FS-100008UNC 1'-8UNC 19.95 50 20 100
TG150-FS-100012UNF 1'-12UNF 16 40 16 100
TG150-FS-100032UN 1'-32UN 12 20 12 75

Looking for the right specification, grade, or coating for your market?

Send us your requirements below. Our sales team will provide product recommendations, competitive pricing, and OEM options based on your needs. For distributors, wholesalers & importers — bulk order inquiries are welcome.

Fill in the form below and get your quotation.
