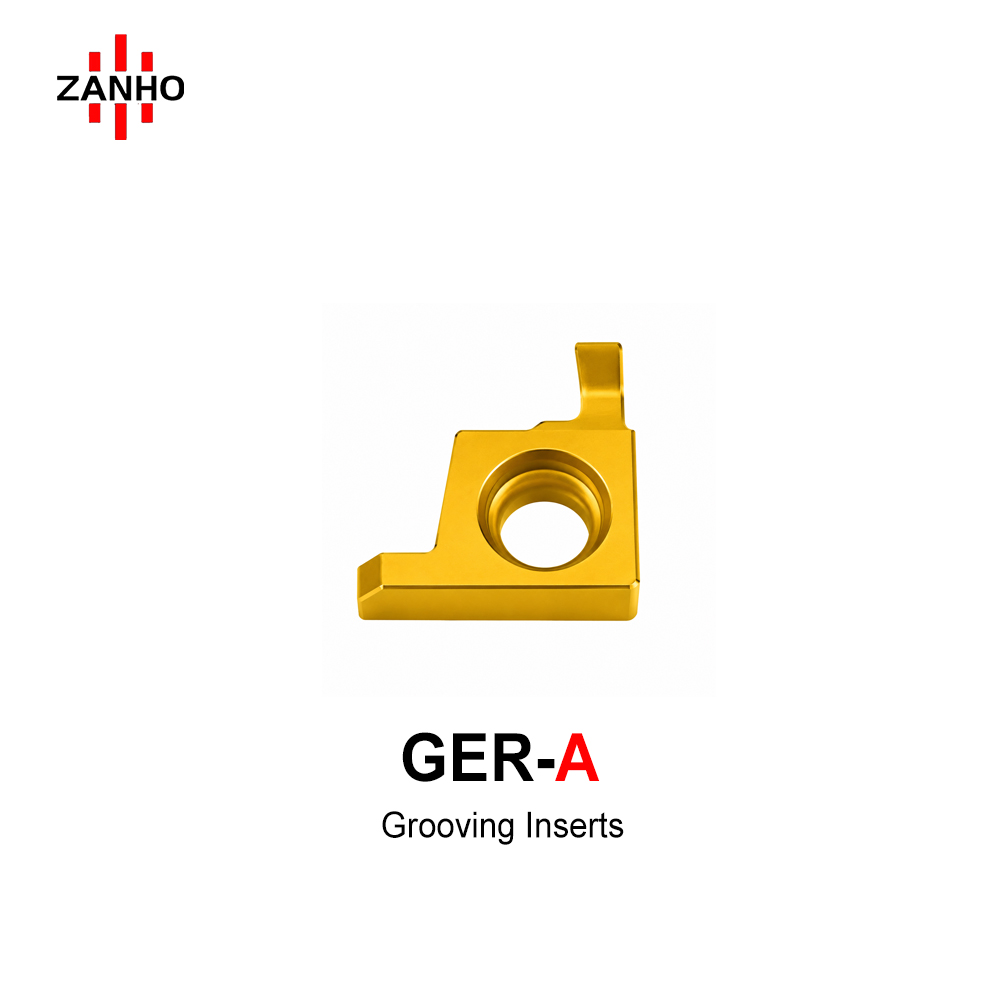

GER-A

ZANHO GER/GEL series: High-precision internal grooving inserts for miniature CNC components. Available in Right-hand (GER) and Left-hand (GEL) configurations. Features standard 0.10mm radius models and specialized Full Radius (AR) models for profiling. Engineered for exceptional stability with consistent dimensions (L:6.69, H:2.58, ød:2.50) for high-repeatability small-bore machining.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • Micro-Bore Specialist: Specifically optimized for ultra-small diameter internal grooving where space is extremely limited.
  • Full Radius Precision: Includes specialized "AR" series Full Radius models (R = W/2) for high-precision profile slotting and contouring.
  • Sharp-Edge Grinding: Fully ground cutting edges provide superior sharpness and mirror-like surface finishes, reducing secondary operations.
  • Symmetrical Selection: Full availability of Right-hand (GER) and Left-hand (GEL) designations to meet all tool holder and machine requirements.
  • Exceptional Stability: Standardized ød (2.50mm) and H (2.58mm) dimensions ensure secure clamping and high process safety.

GER / GEL Detailed Specifications (mm)

Designation (Right) Designation (Left) L H ød W B R
GER100-A GEL100-A 6.69 2.58 2.50 1.00 1.50 0.10
GER120-A GEL120-A 1.20 0.10
GER150-A GEL150-A 1.50 0.10
GER200-A GEL200-A 2.00 0.10
GER100-050AR GEL100-050AR 1.00 0.50 (Full)
GER150-075AR GEL150-075AR 1.50 0.75 (Full)
GER200-100AR GEL200-100AR 2.00 1.00 (Full)

Precision Engineering for Micro-Component Slotting

ZANHO GER/GEL series provides professional stability for precision B2B CNC operations. Contact us for bulk inquiry.
