GER GEL-D series | Precision Internal Grooving Insert (W 1.0-4.0mm)

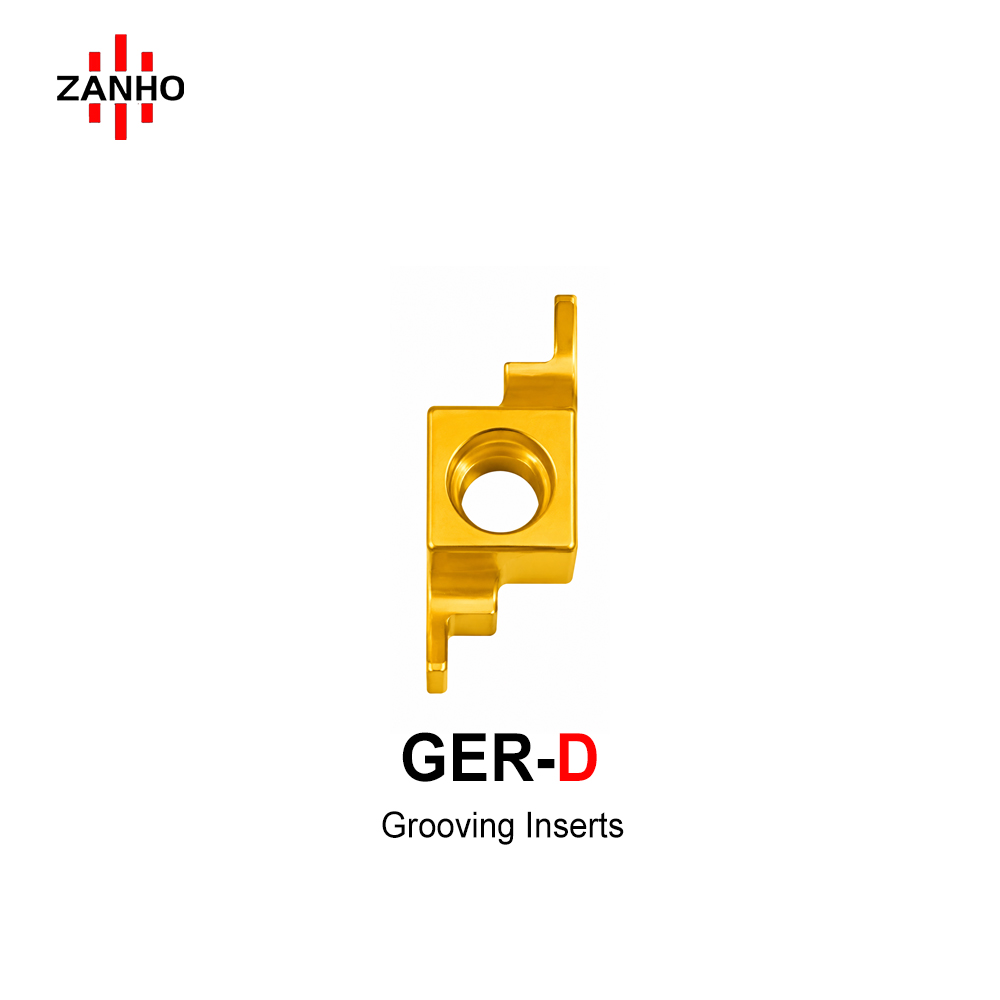

ZANHO GER/GEL-D series: Single-sided precision internal grooving inserts optimized for closed-bore machining. Featuring the specialized D-type chipbreaker, it enhances chip curling and evacuation, allowing for relatively higher feed rates in small diameters. Available in Right-hand (GER) and Left-hand (GEL) designations with widths from 1.00mm up to 4.00mm. Ideal for high-stability slotting and profiling in steel and alloys.

Categories: Grooving & Parting Inserts

Download PDF

Technical Advantages

Optimized for Higher Feed Rates: The D-type geometry is engineered to handle increased feed conditions while maintaining superior chip control in closed internal environments.
D-Type Specialized Chipbreaker: Reinforced chip curling geometry significantly reduces the risk of chip packing and accumulation in deep, narrow bores.
Enhanced Edge Toughness: Precision passivated (honed) cutting edges provide high resistance against breakdown and impact under unstable machining conditions.
Full Radius (DR) Availability: Comprehensive range of DR-series Full Radius models (up to R=2.00) for specialized profile grooving and heavy-duty contouring.
Exceptional Stability: Standardized ød (3.40mm) and H (5.05mm) dimensions ensure secure clamping and maximum process safety in CNC lathes.

GER / GEL-D Detailed Specifications (mm)

Designation (Right)	Designation (Left)	L	A	H	ød	W	B	R
GER100-D	GEL100-D	16.44	6.8	5.05	3.40	1.00	4.50	0.10
GER120-D	GEL120-D					1.20		0.10
GER150-D	GEL150-D					1.50		0.10
GER200-D	GEL200-D					2.00		0.20
GER250-D	GEL250-D					2.50		0.20
GER300-D	GEL300-D					3.00		0.20
GER350-D	GEL350-D					3.50		0.20
GER400-D	GEL400-D					4.00		0.20
GER100-050DR	GEL100-050DR					1.00		0.50 (Full)
GER120-060DR	GEL120-060DR					1.20		0.60 (Full)
GER150-075DR	GEL150-075DR					1.50		0.75 (Full)
GER200-100DR	GEL200-100DR					2.00		1.00 (Full)
GER250-125DR	GEL250-125DR					2.50		1.25 (Full)
GER300-150DR	GEL300-150DR					3.00		1.50 (Full)
GER350-175DR	GEL350-175DR					3.50		1.75 (Full)
GER400-200DR	GEL400-200DR					4.00		2.00 (Full)

High-Performance Precision for Internal Bore Slotting

ZANHO GER/GEL-D series delivers industrial reliability for the most demanding precision bores. Contact us for bulk quotations.
