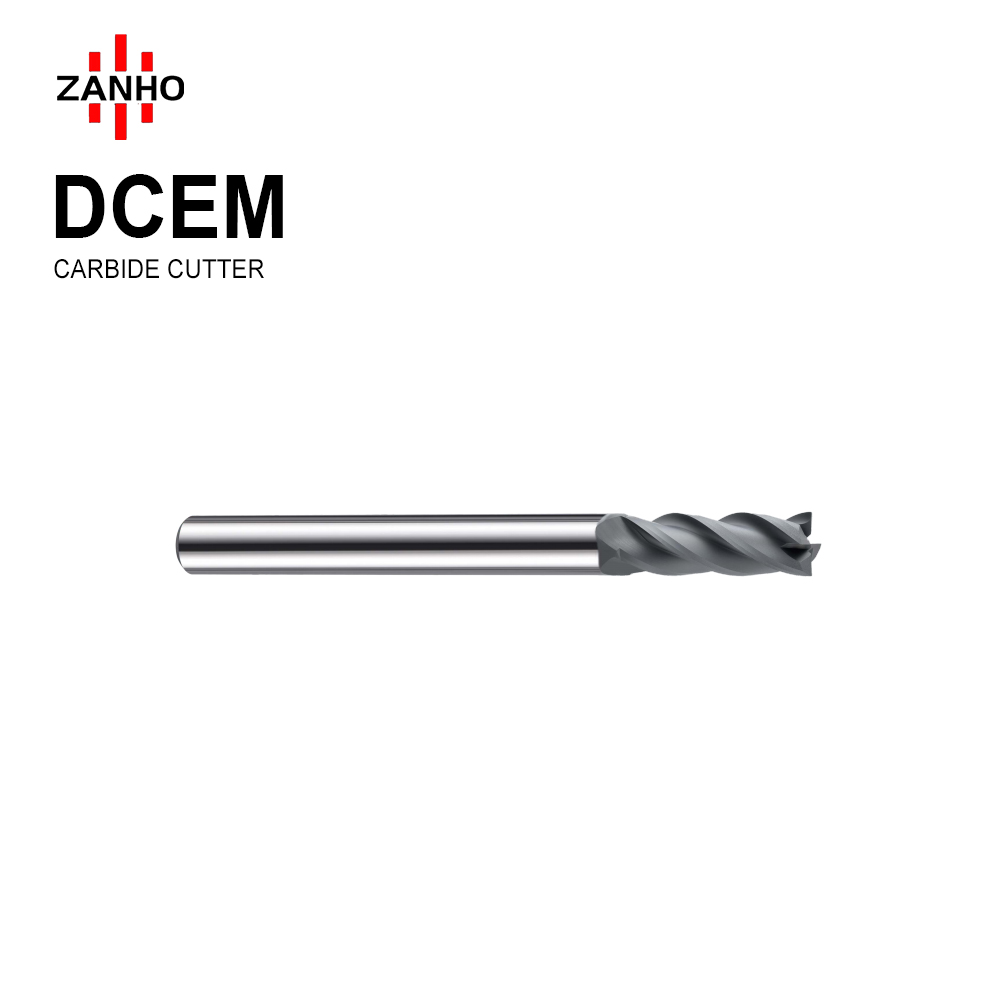

Graphite End Mills

  • Graphite Machining Expert: Engineered specifically for the challenges of Graphite and Abrasive Materials, providing extreme wear resistance and dimensional stability.
  • Superior Diamond Coating: High-quality Diamond (CVD/PCD Grade) coating significantly extends tool life (10x-20x) compared to standard carbide tools in graphite applications.
  • Massive Size Range: Comprehensive selection from D0.5 micro-diameter for intricate detailing to D16 heavy-duty sizes for large electrode roughing.
  • Optimized Chip Evacuation: Designed with specialized flute geometries to facilitate rapid dust and chip removal, preventing tool clogging and heat buildup.
  • Material Compatibility: Best suited for Graphite, Carbon Fiber (CFRP), Green Ceramics, and high-silicon aluminum alloys.
Categories:
Learn More
Download PDF
Description

Order Number Specification D L1 D1  L
DCEM-4S-00510 D0.5*1H*D4*50L*2F 0.5 1 4 50
DCEM-4S-00612 D0.6*1.2H*D4*50L*2F 0.6 1.2 4 50
DCEM-4S-00714 D0.7*1.4H*D4*50L*2F 0.7 1.4 4 50
DCEM-4S-00816 D0.8*1.6H*D4*50L*2F 0.8 1.6 4 50
DCEM-4S-00918 D0.9*1.8H*D4*50L*2F 0.9 1.8 4 50
DCEM-4S-01003 D1*3H*D4*50L*4F 1 3 4 50
DCEM-4S-01504 D1.5*4H*D4*50L*4F 1.5 4 4 50
DCEM-4S-02006 D2*6H*D4*50L*4F 2 6 4 50
DCEM-4S-03009 D3*9H*D4*50L*4F 3 9 4 50
DCEM-4S-04020 D4*20H*D4*75L*4F 4 20 4 75
DCEM-4S-04020 D4*20H*D4*100L*4F 4 20 4 100
DCEM-4S-05015 D5*15H*D6*50L*4F 5 15 6 50
DCEM-4S-06018 D6*18H*D6*50L*4F 6 18 6 50
DCEM-4SH-06025 D6*25H*D6*75L*4F 6 25 6 75
DCEM-4SH-06030 D6*30H*D6*100L*4F 6 30 6 100
DCEM-4S-08025 D8*25H*D8*60L*4F 8 25 8 60
DCEM-4SH-08030 D8*30H*D8*75L*4F 8 30 8 75
DCEM-4SH-08040 D8*40H*D8*100L*4F 8 40 8 100
DCEM-4SH-08050 D8*50H*D8*150L*4F 8 50 8 150
DCEM-4SH-10030 D10*30H*D10*75L*4F 10 30 10 75
DCEM-4SH-10040 D10*40H*D10*100L*4F 10 40 10 100
DCEM-4SH-10055 D10*55H*D10*150L*4F 10 55 10 150
DCEM-4S-12040 D12*40H*D12*100L*4F 12 40 12 100
DCEM-4SH-12055 D12*55H*D12*150L*4F 12 55 12 150
DCEM-4S-14035 D14*35H*D14*100L*4F 14 35 14 100
DCEM-4S-16045 D16*45H*D16*100L*4F 16 45 16 100
