HNGJ0905ANSN-ZGD

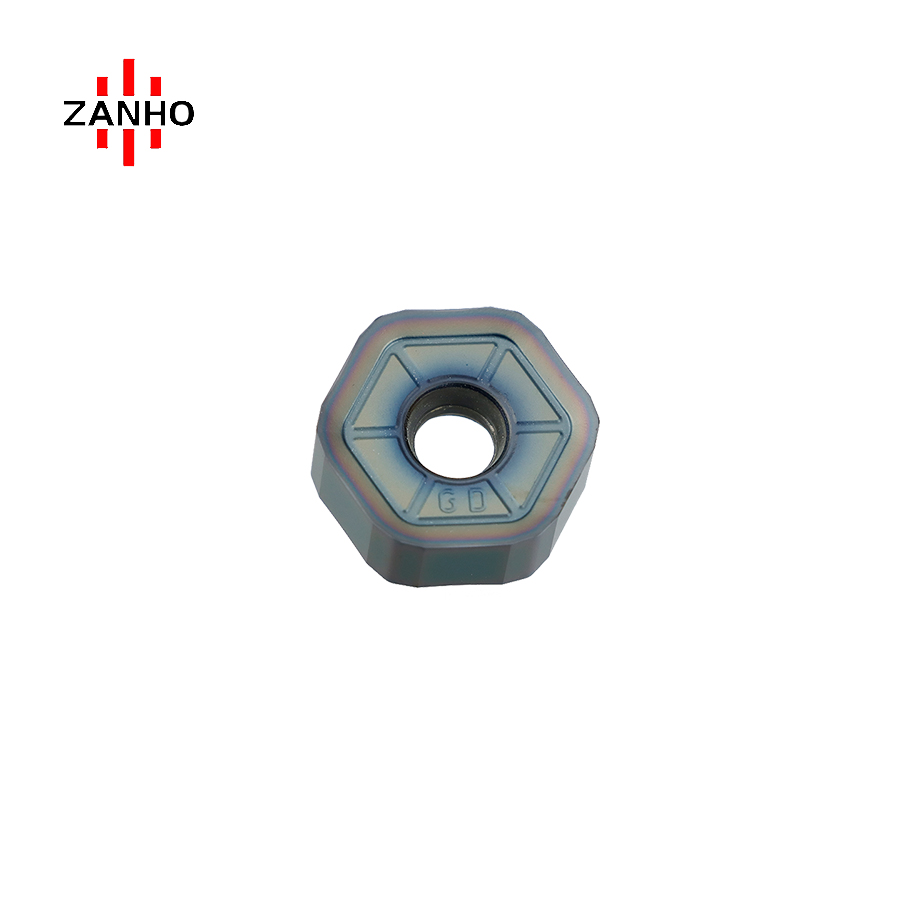

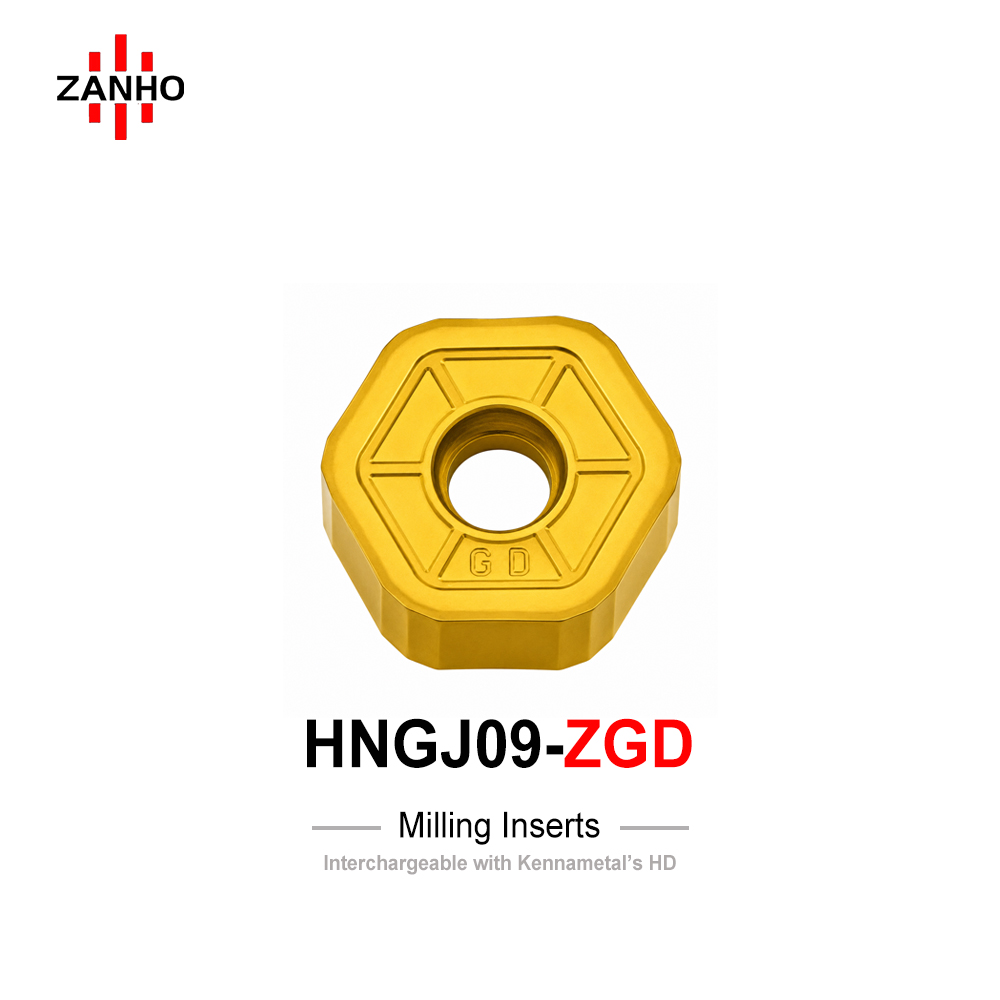

ZANHO HNGJ0905-ZGD: Double-sided 12-edge hexagonal insert for 45° face milling. Engineered for heavy roughing and semi-finishing of large surfaces and forged parts. Features high resistance to interrupted cuts and casting scale, providing maximum metal removal rates and industry-leading economy.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • 45° Lead Angle: Optimizes axial force distribution for stable large-volume milling and reduced spindle vibration.
  • 12-Edge Economy: Double-sided hexagonal design delivers 12 cutting edges, significantly lowering cost-per-part in roughing.
  • Heavy-Duty Roughing: Robust geometry handles interrupted cuts through oxidized skin, forging scale, and hardened casting layers.
  • High Productivity: Large APMX (4.0mm) and ARMAX (8.0mm) parameters enable rapid material removal in mold and plate machining.
  • Universal Application: Highly effective across Carbon Steel, Alloy Steel, Mold Steel, and Cast Iron.

Technical Specifications (mm)

Model Type I.C (D) Thickness (S) Radius (Re) Edges Lead Angle Max APMX
HNGJ0905ANSN-ZGD 15.875 5.00 1.20 12 45° 4.0

Maximum Productivity for Large Surface Milling

ZANHO HNGJ series optimizes cost and efficiency for mold and machinery industries. Contact us for bulk quotations.
