HNMG090608ANSN

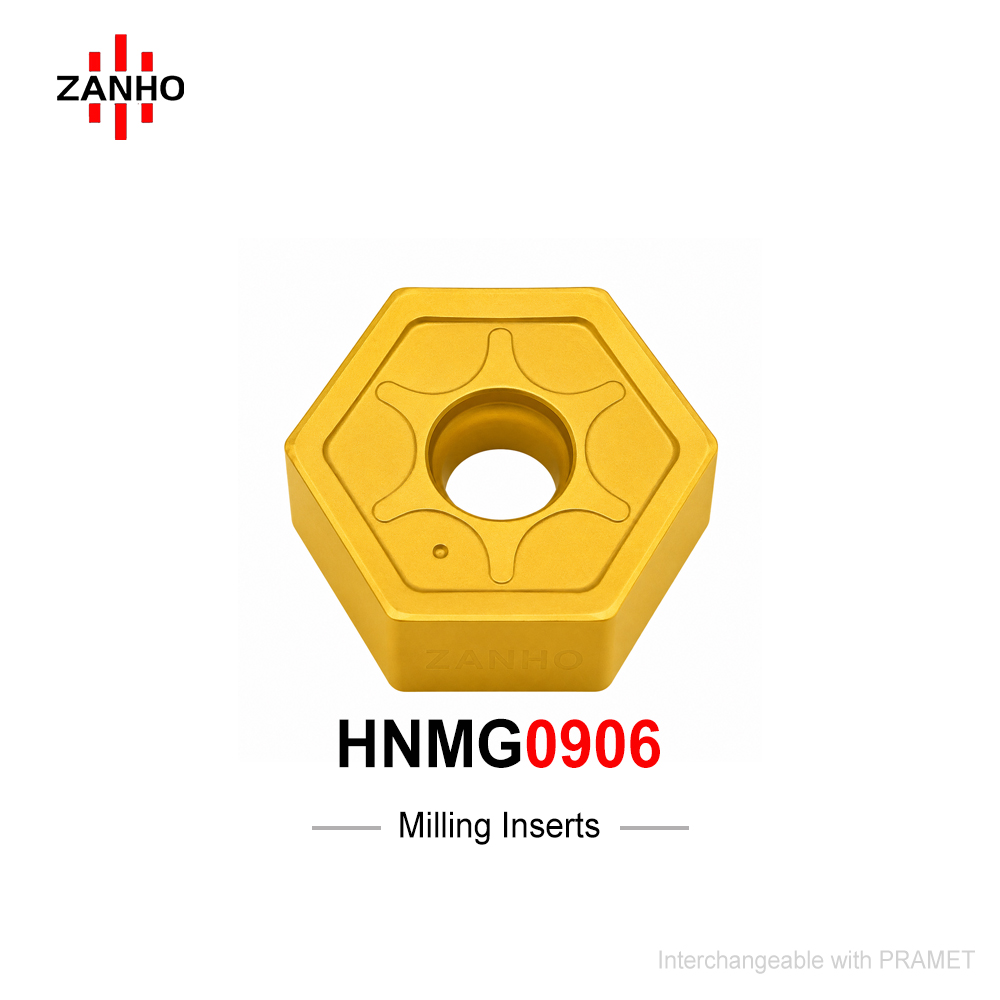

ZANHO HNMG090608ANSN is an ultra-economical double-sided 12-edge insert for medium-load face milling. Featuring a star-shaped radial chipbreaker, it reduces cutting resistance while ensuring stable chip curling. Engineered for general roughing, it combines high edge toughness with a large rake angle for maximum tool life and productivity.
Categories:
Learn More
Download PDF
Description

Core Advantages

  • Ultimate 12-Edge Economy: Double-sided hexagonal design provides 12 precision corners, drastically lowering the cost per cutting edge.
  • Radial Rib Technology: Star-shaped ribs create independent chip-forming zones for each edge, ensuring consistent performance throughout the tool life.
  • High Positive Action: Concave rake surface provides a larger rake angle than standard roughing inserts, significantly reducing spindle load.
  • Stable Chip Evacuation: Radial grooves guide chips to curl toward the center, preventing re-cutting and heat buildup in face milling.
  • Symmetrical Rigidity: Fully symmetrical geometry ensures identical cutting performance across all indexes with a reinforced base structure.

Specifications (mm)

Model A (Length) B C (Thickness) r (Radius) Edges
HNMG090608ANSN 19.15 1.18 6.36 0.8 12 (Double-sided)

Maximize Efficiency with 12-Edge Performance

ZANHO HNMG series is the ultimate cost-saver for general roughing. Contact us for bulk pricing and technical material guides.
