HNMX-M

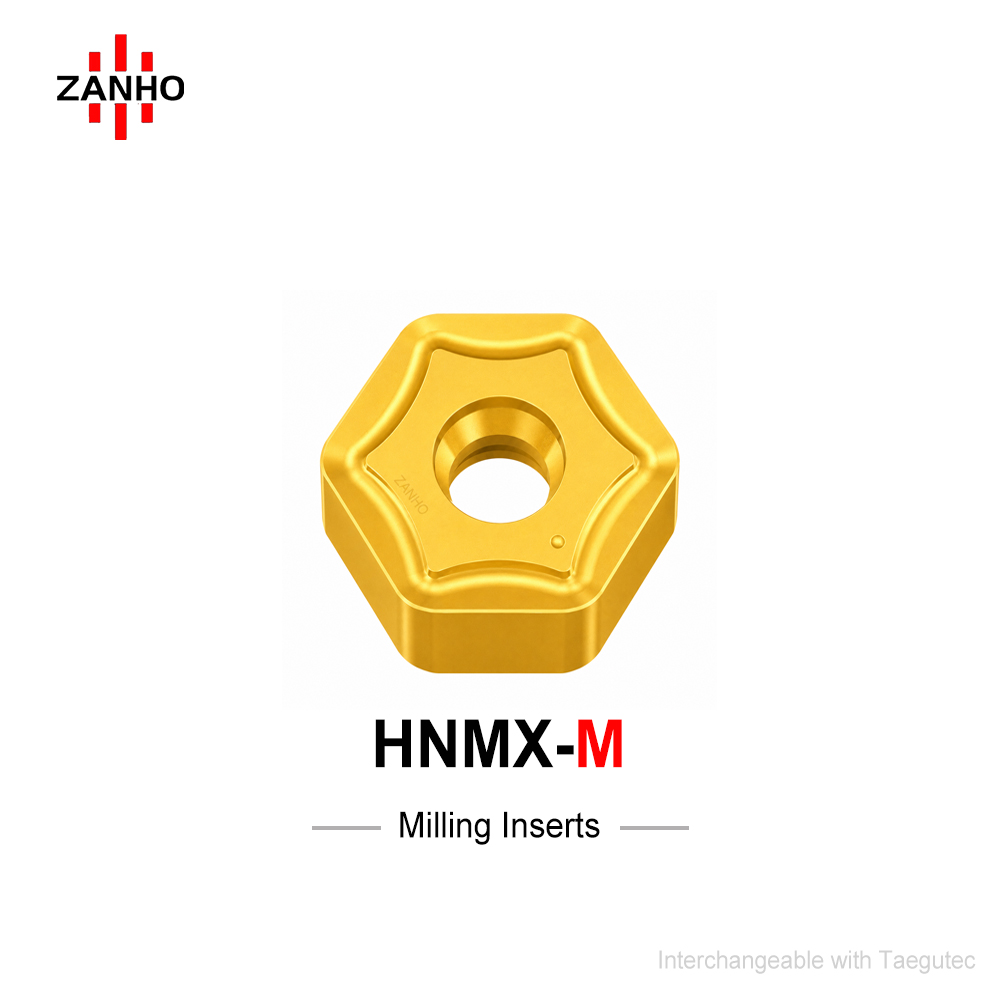

ZANHO HNMX 1006ANTN-M is a large-format 19.05mm hexagonal insert featuring a double-sided 12-edge structure for industry-leading tool life. Engineered for heavy-duty roughing, its high-rigidity body supports massive metal removal rates and large axial depths. Equipped with a 1.4mm wiper edge, it ensures stable process security and superior surface quality for face milling, ramping, and chamfering in Steel and Cast Iron.
Categories:
Learn More
Download PDF
Description

Key Technical Advantages

  • Maximum 12-Edge Economic Value: Double-sided hexagonal design provides 12 high-precision cutting edges, offering the lowest cost-per-edge for high-volume manufacturing environments.
  • Large 19.05mm Format: Larger insert dimensions provide massive material removal capacity and high thermal stability, ideal for heavy-duty industrial face milling.
  • High Body Rigidity: The thick body structure supports increased depths of cut and aggressive feed rates, maintaining process stability under high-load fluctuations.
  • Integrated 1.4mm Wiper: Features an optimized 1.4mm wiper edge (bs) that delivers exceptional surface finish and floor flatness even during heavy roughing passes.
  • Advanced M-Chipbreaker: Reconciles cutting sharpness with edge strength, ensuring stable chip curling and smooth evacuation to prevent thermal buildup and chip re-cutting.

Insert Dimensional Specifications (mm)

Model D (Diameter) H (Total Height) d (Hole Dia) T (mm) S (Thickness) R (Radius) bs (Wiper) Edges
HNMX 1006ANTN-M 19.05 19.05 6.2 6.35 6.22 1.0 1.4 12

Scale Up Your Face Milling Performance

ZANHO HNMX-1006 inserts offer maximum volume removal and economy. Contact us for bulk B2B pricing and global distribution opportunities.
