HNPJ070412ANSN-HP

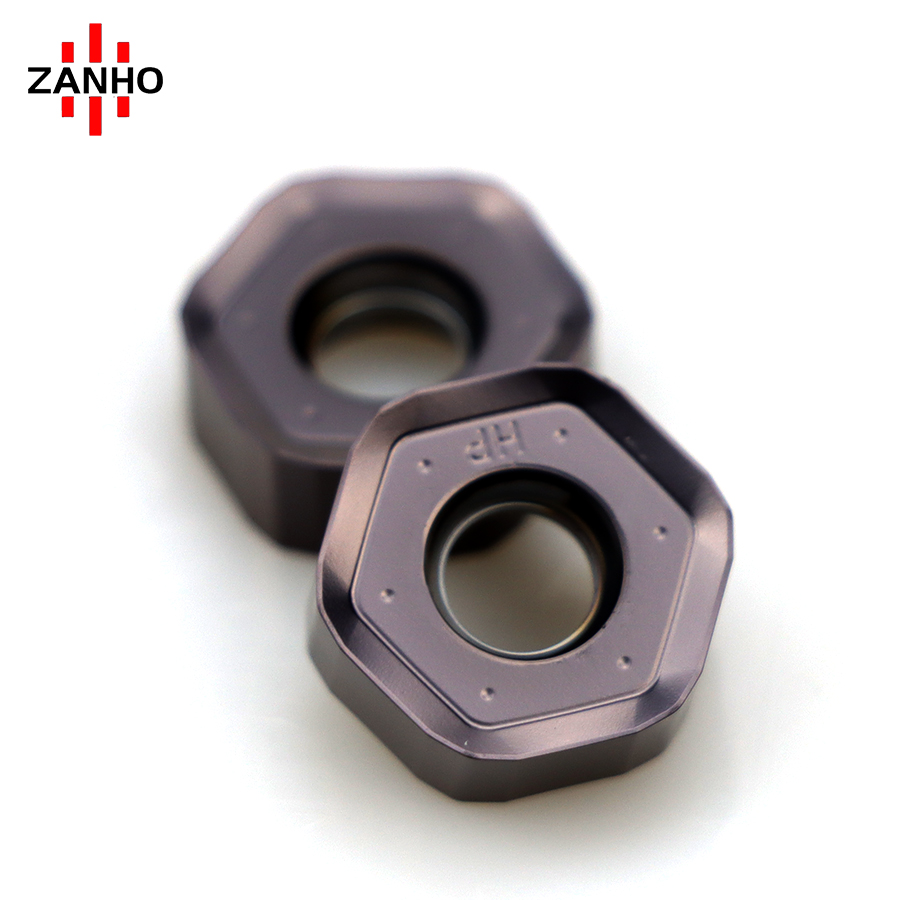

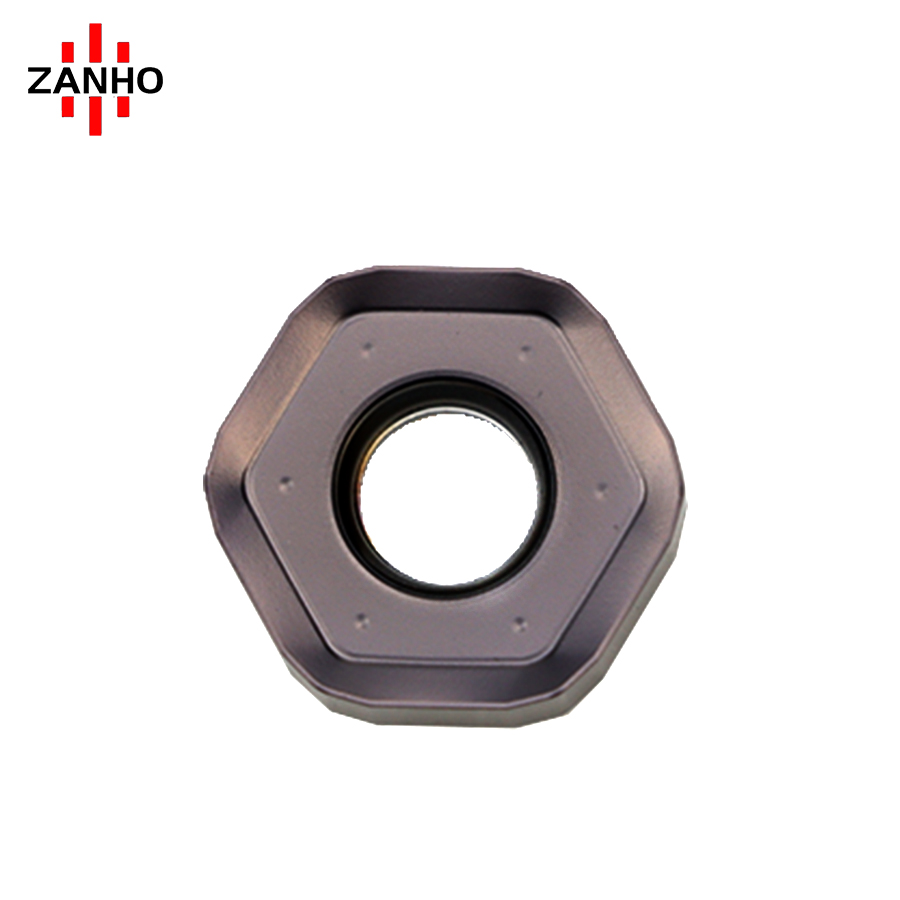

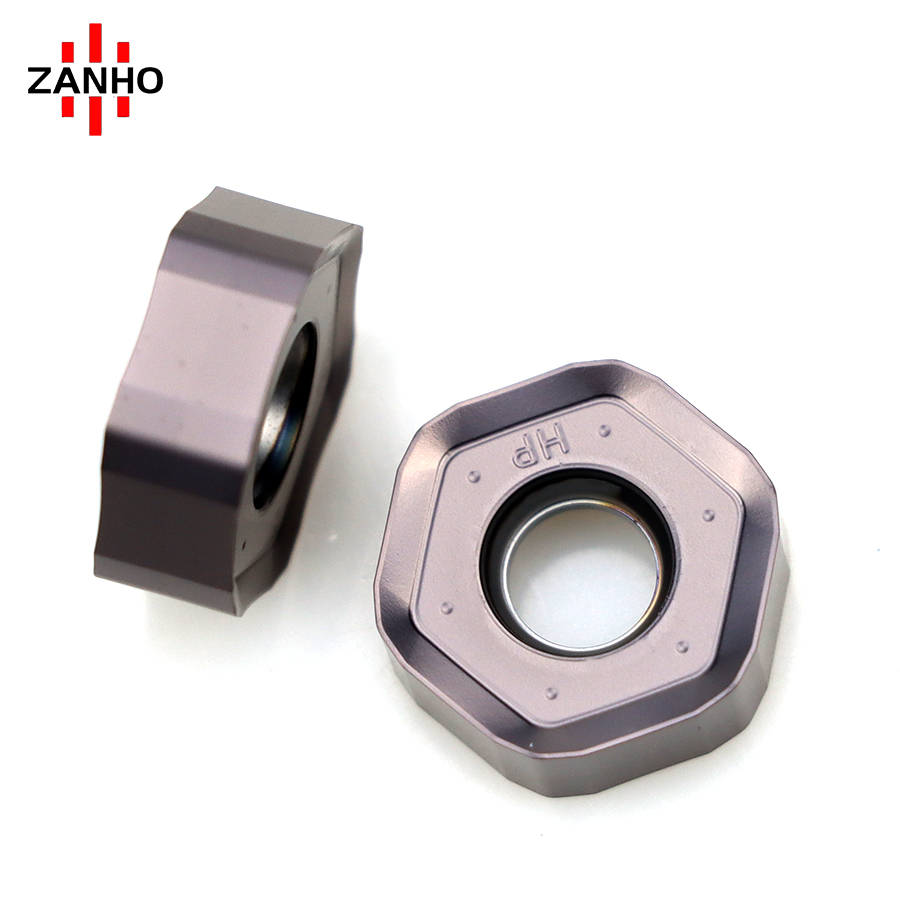

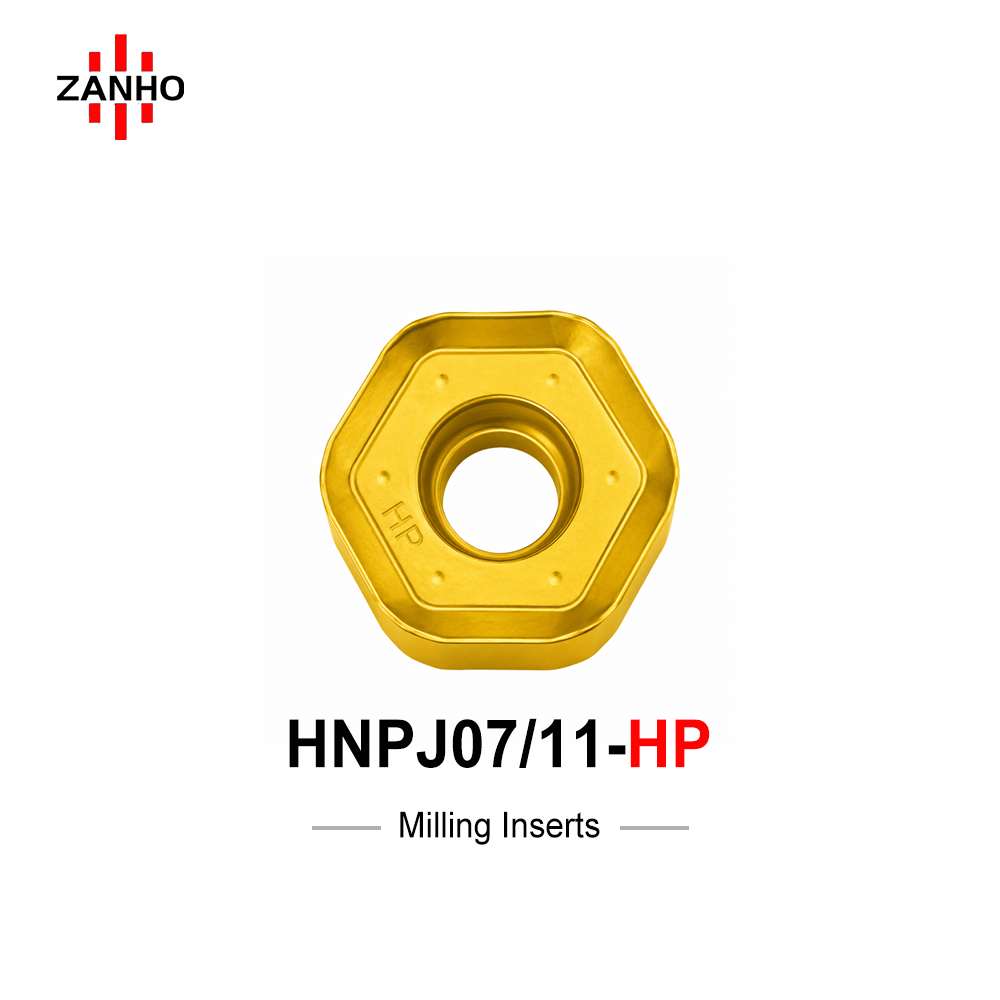

ZANHO HNPJ070412ANSN-HP: Ultra-economical 12-edge double-sided insert for 45° face roughing. HP geometry optimizes chip evacuation at high feed rates. Durable performance for steel/cast iron components with oxide layers or interrupted cuts.
Categories:
Learn More
Download PDF
Description

Core Performance Features

  • Ultimate 12-Edge Economy: Developed on a double-sided hexagonal platform, providing 12 precision cutting edges to drastically minimize tool costs in mass production.
  • 45° Lead Angle Efficiency: Optimized for large-area face milling, enabling stable, high-width material removal in plates, mold bases, and engineering structural parts.
  • HP Shallow-Pocket Geometry: Specialized HP chipbreaker controls chip curling paths during large feed face milling, ensuring smooth evacuation and preventing heat buildup.
  • Rugged Edge Durability: Engineered to withstand interrupted cuts and process workpieces with oxide layers or black skin from castings and forgings.
  • Broad Material Versatility: High performance roughing across carbon steel, alloy steel, die steel, and cast iron components.

Specifications (mm)

Model I.C (Size) Thickness (S) Wiper (BS) Radius (RE) Max ARMX Edges
HNPJ070412ANSN-HP 12.7 mm 4.41 mm 1.5 mm 0.5 mm 3.5 mm 12 (Double-sided)
HNPJ1107ANSN-HP 22.3 mm 7.39 mm 2.65 mm 1.4 mm 5.5 mm 12 (Double-sided)

Maximize Metal Removal with 12-Edge Economy

The ZANHO HNPJ series is the ultimate industrial solution for high-volume face roughing. Contact us for bulk B2B pricing and grade recommendations.
