HNPJ0905ANSN-PM

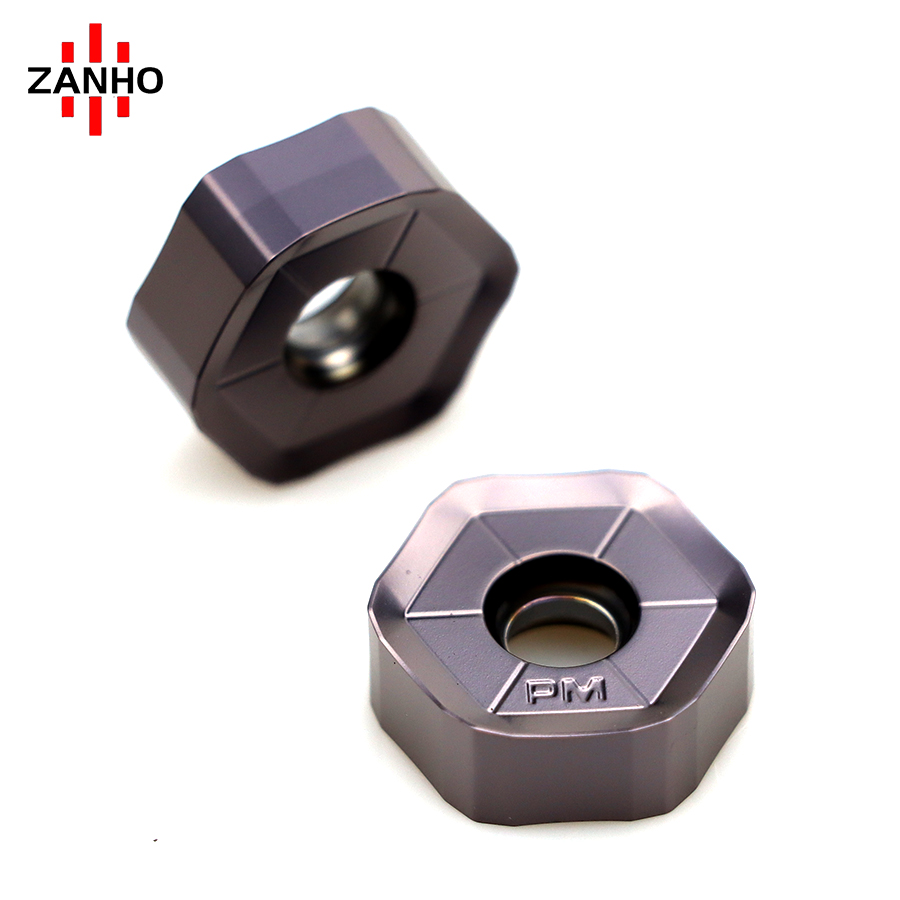

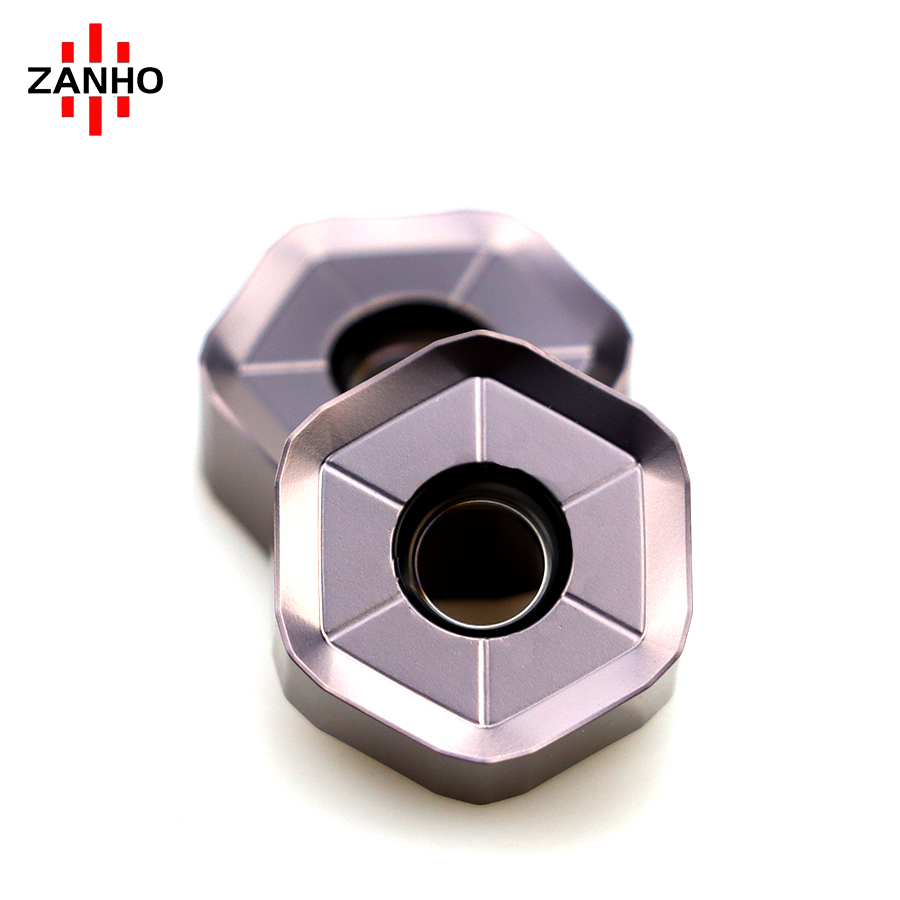

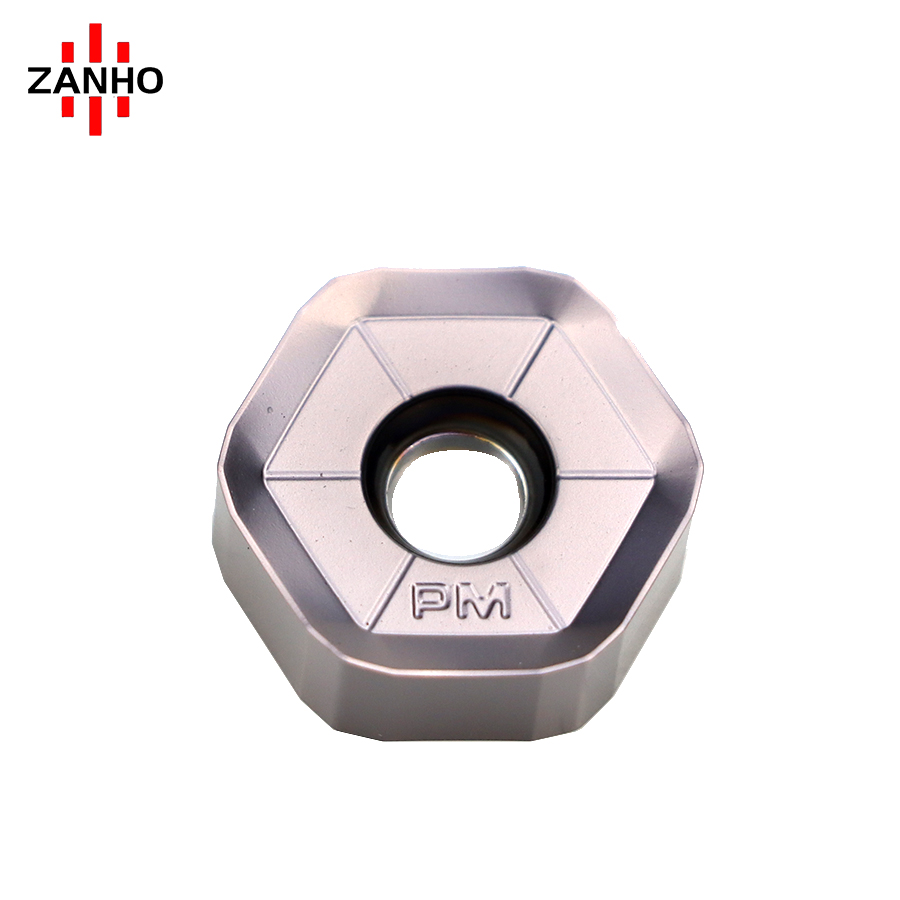

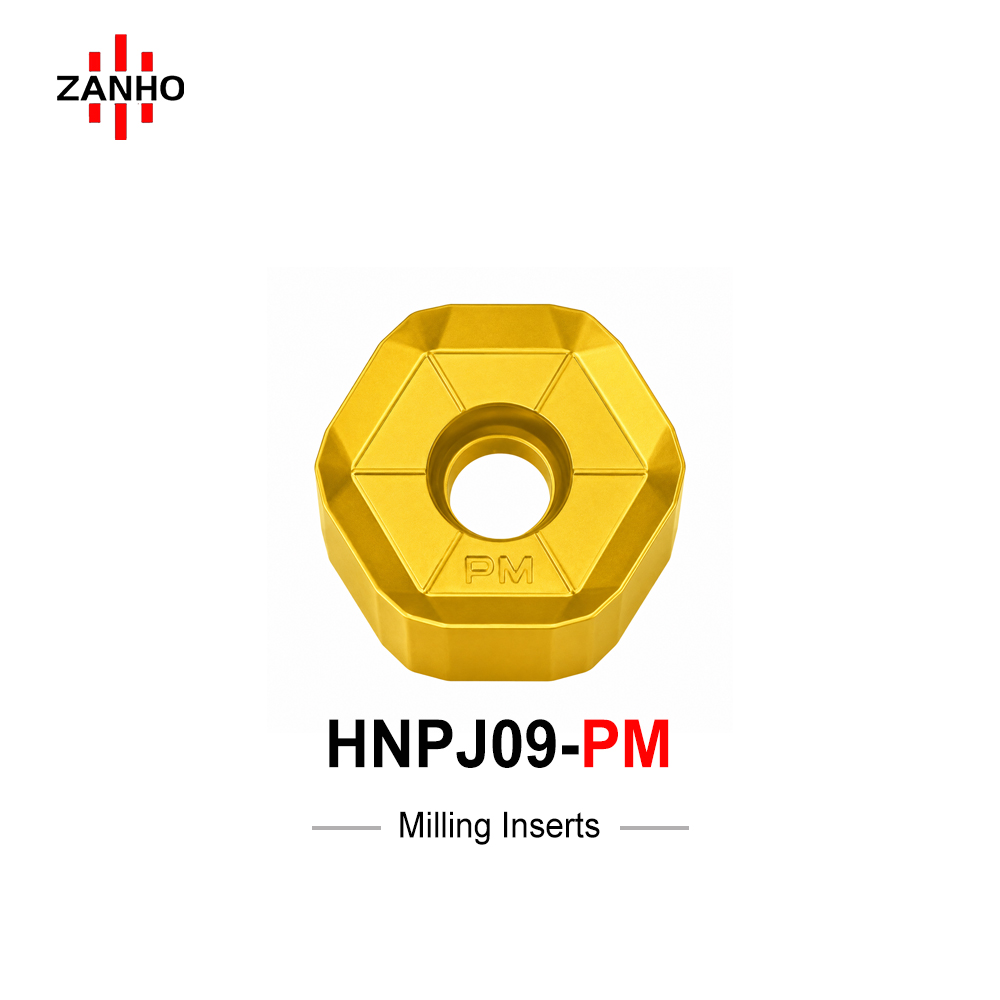

ZANHO HNPJ0905ANSN-HP: Ultra-economical 12-edge double-sided insert for 45° face milling. Segmented PM chipbreaker balances edge toughness with low cutting resistance. Optimized for M1200-MAX cutter bodies in steel and cast iron roughing/semi-roughing.
Categories:
Learn More
Download PDF
Description

Technical Features

  • 12-Edge Hexagonal Design: Double-sided platform providing 12 precision corners for ultimate cost-per-part economy in volume production.
  • Segmented PM Geometry: Optimized multi-stage chipbreaker balances high-impact toughness with sharp shearing, preventing chip recutting.
  • 45° Lead Angle Stability: Engineered for wide-area face milling and large stock removal in mold bases and forgings with high axial stability.
  • 1.9mm Integrated Wiper: Features a large BS wiper edge to ensure stable surface finishes during semi-finishing passes.
  • M1200-MAX Compatibility: Precision fit for M1200-MAX series cutters, managing heat and interrupted cuts on carbon/alloy steels and cast iron.

Specifications (mm)

Model I.C (Size) Thickness (S) Wiper (BS) Radius (RE) Max ARmax Edges
HNPJ0905ANSN-HP 15.88 mm 5.46 mm 1.9 mm 1.0 mm 4.5 mm 12 (Double-sided)

Professional Efficiency for Heavy Face Roughing

ZANHO HNPJ series ensures industrial-grade reliability. Contact us for M1200-MAX matching tool holders and bulk B2B pricing.
