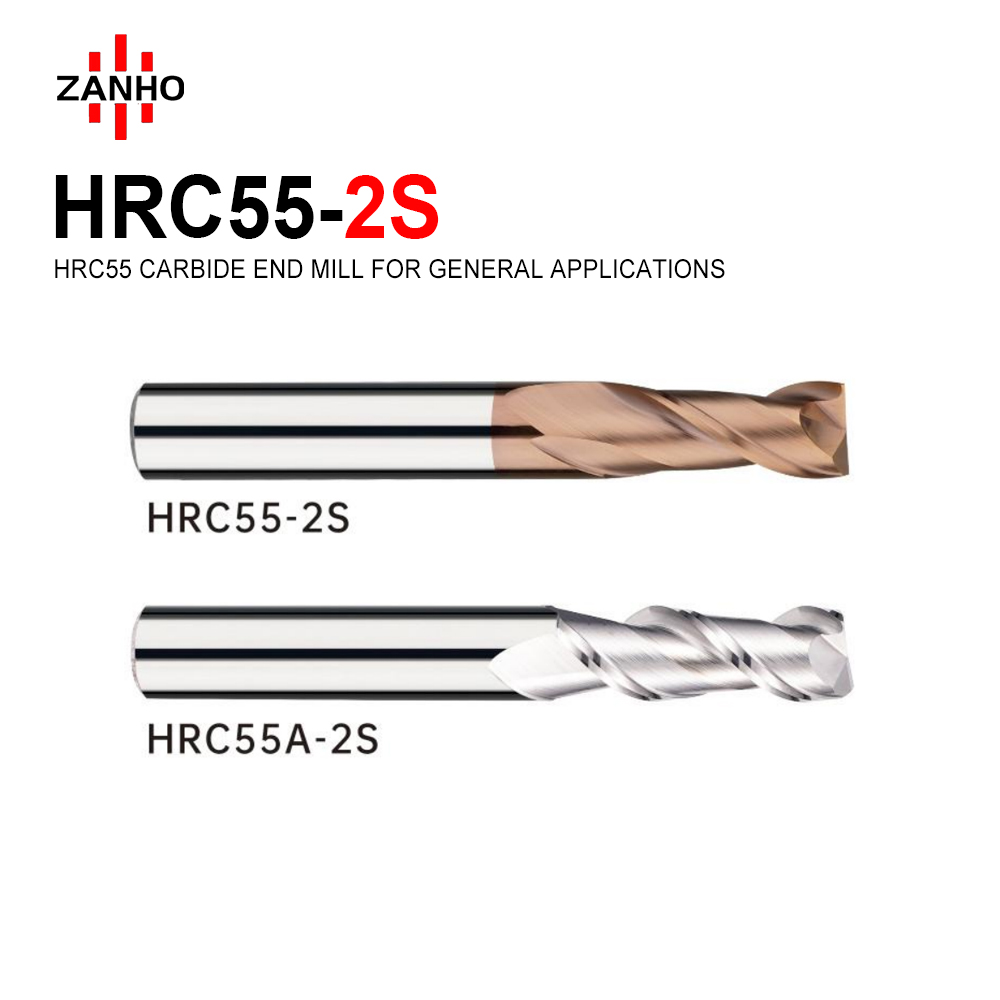

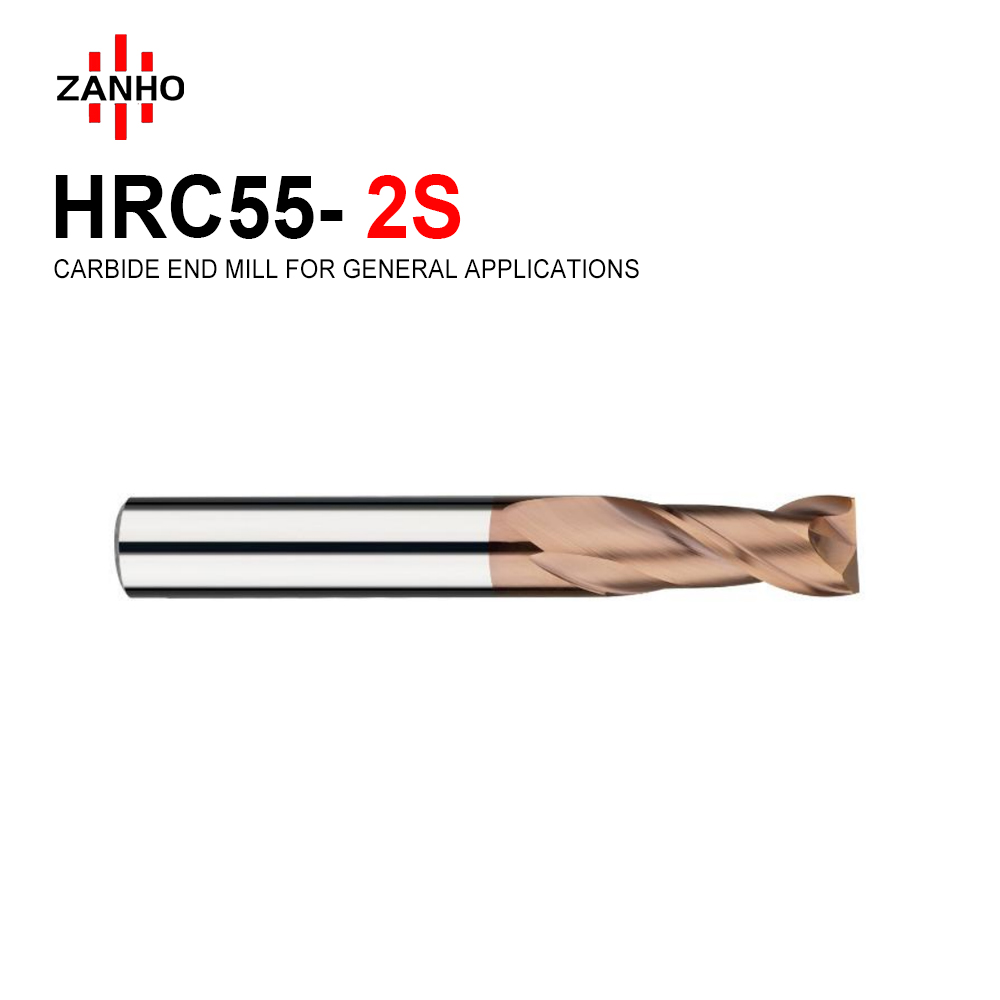

HRC55-2S-SQUARE

  • Type: 2-Flute (2S) Square End Mill for efficient slotting and profiling.
  • Material: High-quality Tungsten Steel (Carbide) for durability.
  • Coating: Advanced AlTiN Coating for excellent heat and wear resistance.
  • Helix Angle: 35° Helix ensuring stable cutting and smooth chip removal.
  • Workpiece: Ideal for Carbon Steel, Alloy Steel, and Stainless Steel (Up to 55 HRC).
  • Feature: Precision-ground edges for long tool life and high-quality surface finish.
Categories:
Learn More
Download PDF
Description
  • Type: 2-Flute (2S) Square End Mill for efficient slotting and profiling.
  • Material: High-quality Tungsten Steel (Carbide) for durability.
  • Coating: Advanced AlTiN Coating for excellent heat and wear resistance.
  • Helix Angle: 35° Helix ensuring stable cutting and smooth chip removal.
  • Workpiece: Ideal for Carbon Steel, Alloy Steel, and Stainless Steel (Up to 55 HRC).
  • Feature: Precision-ground edges for long tool life and high-quality surface finish.

Steel. Order Number Alu. Order Number Specification  D L1 D1 L
HRC55-2S-01003 HRC55A-2S-01003 D1*D4*50L*2F 1 3 4 50
HRC55-2S-01505 HRC55A-2S-01505 D1.5*D4*50L*2F 1.5 5 4 50
HRC55-2S-02006 HRC55A-2S-02006 D2*D4*50L*2F 2 6 4 50
HRC55-2S-02507 HRC55A-2S-02507 D2.5*D4*50L*2F 2.5 7 4 50
HRC55-2S-33008 HRC55A-2S-33008 D3*D3*50L*2F 3 8 3 50
HRC55-2S-03008 HRC55A-2S-03008 D3*D4*50L*2F 3 8 4 50
HRC55-2S-03508 HRC55A-2S-03508 D3.5*D4*50L*2F 3.5 8 4 50
HRC55-2S-04010 HRC55A-2S-04010 D4*D4*50L*2F 4 10 4 50
HRC55-2S-55013 HRC55A-2S-55013 D5*D5*50L*2F 5 13 5 50
HRC55-2S-05013 HRC55A-2S-05013 D5*D6*50L*2F 5 13 6 50
HRC55-2S-06015 HRC55A-2S-06015 D6*D6*50L*2F 6 15 6 50
HRC55-2S-08020 HRC55A-2S-08020 D8*D8*60L*2F 8 20 8 60
HRC55-2S-10025 HRC55A-2S-10025 D10*D10*75L*2F 10 25 10 75
HRC55-2S-12030 HRC55A-2S-12030 D12*D12*75L*2F 12 30 12 75
HRC55-2S-14045 HRC55A-2S-14045 D14*D14*100L*2F 14 45 14 100
HRC55-2S-16045 HRC55A-2S-16045 D16*D16*100L*2F 16 45 16 100
HRC55-2S-18045 HRC55A-2S-18045 D18*D18*100L*2F 18 45 18 100
HRC55-2S-20045 HRC55A-2S-20045 D20*D20*100L*2F 20 45 20 100
HRC55-2SH-33012 HRC55A-2SH-33012 D3*D3*75L*2F 3 12 3 75
HRC55-2SH-03012 HRC55A-2SH-03012 D3*D3*100L*2F 3 12 3 100
HRC55-2SH-04016 HRC55A-2SH-04016 D4*D4*75L*2F 4 16 4 75
HRC55-2SH-04020 HRC55A-2SH-04020 D4*D4*100L*2F 4 20 4 100
HRC55-2SH-55020 HRC55A-2SH-55020 D5*D5*75L*2F 5 20 5 75
HRC55-2SH-06024 HRC55A-2SH-06024 D6*D6*75L*2F 6 24 6 75
HRC55-2SH-55025 HRC55A-2SH-55025 D5*D5*100L*2F 5 25 5 100
HRC55-2SH-06030 HRC55A-2SH-06030 D6*D6*100L*2F 6 30 6 100
HRC55-2SH-06040 HRC55A-2SH-06040 D6*D6*150L*2F 6 40 6 150
HRC55-2SH-08025 HRC55A-2SH-08025 D8*D8*75L*2F 8 25 8 75
HRC55-2SH-08035 HRC55A-2SH-08035 D8*D8*100L*2F 8 35 8 100
HRC55-2SH-08045 HRC55A-2SH-08045 D8*D8*150L*2F 8 45 8 150
HRC55-2SH-10040 HRC55A-2SH-10040 D10*D10*100L*2F 10 40 10 100
HRC55-2SH-10055 HRC55A-2SH-10055 D10*D10*150L*2F 10 55 10 150
HRC55-2SH-12045 HRC55A-2SH-12045 D12*D12*100L*2F 12 45 12 100
HRC55-2SH-12055 HRC55A-2SH-12055 D12*D12*150L*2F 12 55 12 150
HRC55-2SH-14070 HRC55A-2SH-14070 D14*D14*150L*2F 14 70 14 150
HRC55-2SH-16075 HRC55A-2SH-16075 D16*D16*150L*2F 16 75 16 150
HRC55-2SH-18075 HRC55A-2SH-18075 D18*D18*150L*2F 18 75 18 150
HRC55-2SH-20075 HRC55A-2SH-20075 D20*D20*150L*2F 20 75 20 150
