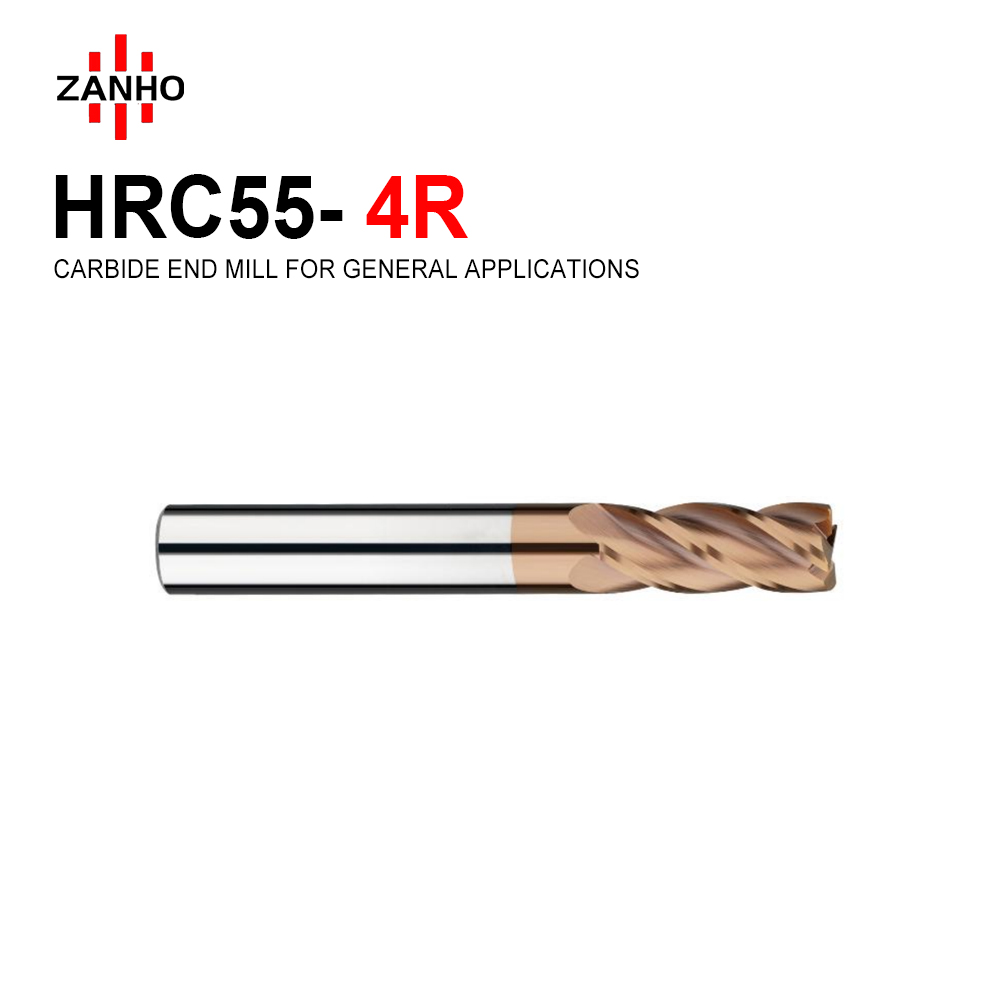

HRC55-4R-CORNER RADIUS

  • Type: 4-Flute Corner Radius (Bull Nose) for enhanced edge strength and longer tool life.
  • Hardness Target: Engineered for workpieces with hardness up to 45 HRC.
  • Advanced Coating: TiSiN Coating provides excellent oxidation resistance and high-speed stability.
  • Workpiece Compatibility: Highly suitable for Carbon Steel, Alloy Steel, Stainless Steel, and Cast Iron.
  • Design: 35° Helix Angle balances cutting efficiency and chip removal for stable machining.
  • Precision Specs: Available in sizes D1 to D12 with precision R0.2 to R1.0 corner radius for fine contouring.
Categories:
Learn More
Download PDF
Description

Order Number Specification D R L1 D1 L
HRC55-4R-01002 D1R0.2*D4*50L*4F 1 0.2 3 4 50
HRC55-4R-01502 D1.5R0.2*D4*50L*4F 1.5 0.2 5 4 50
HRC55-4R-02002 D2R0.2*D4*50L*4F 2 0.2 6 4 50
HRC55-4R-02005 D2R0.5*D4*50L*4F 2 0.5 6 4 50
HRC55-4R-03002 D3R0.2*D4*50L*4F 3 0.2 8 4 50
HRC55-4R-03005 D3R0.5*D4*50L*4F 3 0.5 8 4 50
HRC55-4R-33005 D3R0.5*D3*50L*4F 3 0.5 8 3 50
HRC55-4R-03010 D3R1*D4*50L*4F 3 1 8 4 50
HRC55-4R-04002 D4R0.2*D4*50L*4F 4 0.2 10 4 50
HRC55-4R-04005 D4R0.5*D4*50L*4F 4 0.5 10 4 50
HRC55-4R-04010 D4R1*D4*50L*4F 4 1 10 4 50
HRC55-4R-06002 D6R0.2*D6*50L*4F 6 0.2 15 6 50
HRC55-4R-06005 D6R0.5*D6*50L*4F 6 0.5 15 6 50
HRC55-4R-06010 D6R1*D6*50L*4F 6 1 15 6 50
HRC55-4R-08005 D8R0.5*D8*60L*4F 8 0.5 20 8 60
HRC55-4R-08010 D8R1*D8*60L*4F 8 1 20 8 60
HRC55-4R-10005 D10R0.5*D10*75L*4F 10 0.5 25 10 75
HRC55-4R-10010 D10R1*D10*75L*4F 10 1 25 10 75
HRC55-4R-12005 D12R0.5*D12*75L*4F 12 0.5 30 12 75
HRC55-4R-12010 D12R1*D12*75L*4F 12 1 30 12 75
HRC55-4RH-04005 D4R0.5*D4*75L*4F 4 0.5 12 4 75
HRC55-4RH-04005A D4R0.5*D4*100L*4F 4 0.5 16 4 100
HRC55-4RH-04010 D4R1*D4*75L*4F 4 1 12 4 75
HRC55-4RH-04010A D4R1*D4*100L*4F 4 1 16 4 100
HRC55-4RH-06005 D6R0.5*D6*75L*4F 6 0.5 20 6 75
HRC55-4RH-06005A D6R0.5*D6*100L*4F 6 0.5 25 6 100
HRC55-4RH-06005B D6R0.5*D6*150L*4F 6 0.5 30 6 150
HRC55-4RH-06010 D6R1*D6*75L*4F 6 1 20 6 75
HRC55-4RH-06010A D6R1*D6*100L*4F 6 1 25 6 100
HRC55-4RH-06010B D6R1*D6*150L*4F 6 1 30 6 150
HRC55-4RH-08005 D8R0.5*D8*75L*4F 8 0.5 24 8 75
HRC55-4RH-08005A D8R0.5*D8*100L*4F 8 0.5 30 8 100
HRC55-4RH-08005B D8R0.5*D8*150L*4F 8 0.5 40 8 150
HRC55-4RH-08010 D8R1*D8*75L*4F 8 1 24 8 75
HRC55-4RH-08010A D8R1*D8*100L*4F 8 1 30 8 100
HRC55-4RH-08010B D8R1*D8*150L*4F 8 1 40 8 150
HRC55-4RH-10005 D10R0.5*D10*100L*4F 10 0.5 30 10 100
HRC55-4RH-10005A D10R0.5*D10*150L*4F 10 0.5 45 10 150
HRC55-4RH-10010 D10R1*D10*100L*4F 10 1 30 10 100
HRC55-4RH-10010A D10R1*D10*150L*4F 10 1 45 10 150
HRC55-4RH-12005 D12R0.5*D12*100L*4F 12 0.5 35 12 100
HRC55-4RH-12005A D12R0.5*D12*150L*4F 12 0.5 45 12 150
HRC55-4RH-12010 D12R1*D12*100L*4F 12 1 35 12 100
HRC55-4RH-12010A D12R1*D12*150L*4F 12 1 45 12 150
