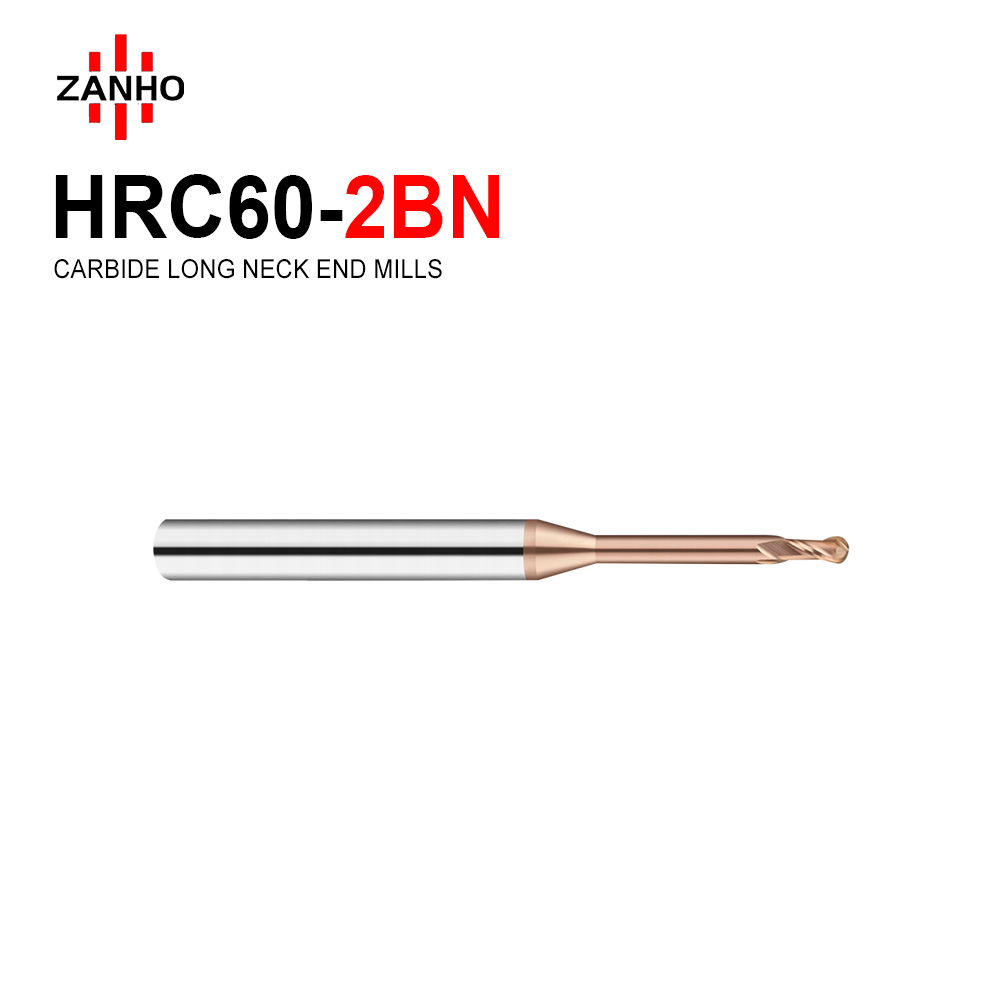

HRC60-2BN

  • Deep Reach specialist: Engineered with a Long Neck design specifically for precise Deep-Pocket 3D Profiling and intricate contouring where standard length tools fail.
  • Interference-Free Machining: The reduced neck diameter provides necessary clearance for deep side milling and cavity work, eliminating tool collision risks.
  • Premium TIAISIN Coating: Advanced TiSiN coating offers exceptional heat resistance and tool life, ensuring edge integrity during high-speed operations.
  • Extensive Spec Selection: Available in radii R0.5 to R1.5 with a wide variety of effective neck lengths for diverse precision CNC tasks.
Categories:
Learn More
Download PDF
Description
  • Deep Reach specialist: Engineered with a Long Neck design specifically for precise Deep-Pocket 3D Profiling and intricate contouring where standard length tools fail.
  • Interference-Free Machining: The reduced neck diameter provides necessary clearance for deep side milling and cavity work, eliminating tool collision risks.
  • Premium TIAISIN Coating: Advanced TiSiN coating offers exceptional heat resistance and tool life, ensuring edge integrity during high-speed operations.
  • Extensive Spec Selection: Available in radii R0.5 to R1.5 with a wide variety of effective neck lengths for diverse precision CNC tasks.

Order Number Specification D L2 D1 L
HRC60-2BN-01006 R0.5*6L*D4*50L*2F 1 6 4 50
HRC60-2BN-01008 R0.5*8L*D4*50L*2F 1 8 4 50
HRC60-2BN-01010 R0.5*10L*D4*50L*2F 1 10 4 50
HRC60-2BN-01012 R0.5*12L*D4*50L*2F 1 12 4 50
HRC60-2BN-01015 R0.5*15L*D4*50L*2F 1 15 4 50
HRC60-2BN-01020 R0.5*20L*D4*50L*2F 1 20 4 50
HRC60-2BN-01506 R0.75*6L*D4*50L*2F 1.5 6 4 50
HRC60-2BN-01508 R0.75*8L*D4*50L*2F 1.5 8 4 50
HRC60-2BN-01510 R0.75*10L*D4*50L*2F 1.5 10 4 50
HRC60-2BN-01512 R0.75*12L*D4*50L*2F 1.5 12 4 50
HRC60-2BN-01515 R0.75*15L*D4*50L*2F 1.5 15 4 50
HRC60-2BN-01520 R0.75*20L*D4*50L*2F 1.5 20 4 50
HRC60-2BN-02006 R1*6L*D4*50L*2F 2 6 4 50
HRC60-2BN-02008 R1*8L*D4*50L*2F 2 8 4 50
HRC60-2BN-02010 R1*10L*D4*50L*2F 2 10 4 50
HRC60-2BN-02012 R1*12L*D4*50L*2F 2 12 4 50
HRC60-2BN-02015 R1*15L*D4*50L*2F 2 15 4 50
HRC60-2BN-02020 R1*20L*D4*50L*2F 2 20 4 50
HRC60-2BN-02025 R1*25L*D4*50L*2F 2 25 4 50
HRC60-2BN-02510 R1.25*10L*D4*50L*2F 2.5 10 4 50
HRC60-2BN-02512 R1.25*12L*D4*50L*2F 2.5 12 4 50
HRC60-2BN-02515 R1.25*15L*D4*50L*2F 2.5 15 4 50
HRC60-2BN-02520 R1.25*20L*D4*50L*2F 2.5 20 4 50
HRC60-2BN-02525 R1.25*25L*D4*50L*2F 2.5 25 4 50
HRC60-2BN-03012 R1.5*12L*D4*50L*2F 3 12 4 50
HRC60-2BN-03015 R1.5*15L*D4*50L*2F 3 15 4 50
HRC60-2BN-03020 R1.5*20L*D4*50L*2F 3 20 4 50
HRC60-2BN-03025 R1.5*25L*D4*50L*2F 3 25 4 50
