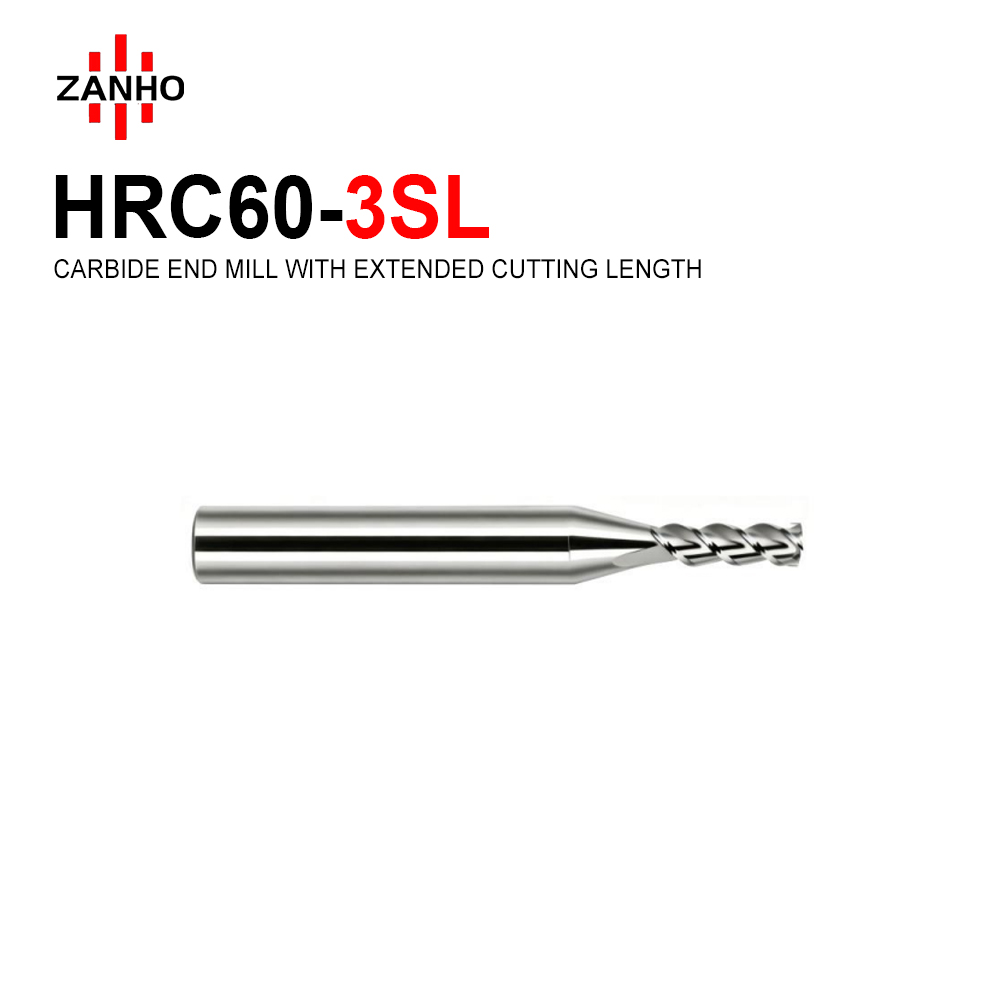

HRC60-3SL

  • Deep Machining: Extended Flute (Long Flute) design allows for efficient deep side milling and slotting in one pass where standard tools cannot reach.
  • Sharp Cutting Edge: Uncoated (Bright) carbide substrate with polished flutes ensures maximum sharpness, effectively preventing chip welding and heat buildup.
  • High Efficiency: 45° High Helix Angle provides smooth cutting action and rapid chip evacuation, delivering an exceptional surface finish.
  • Diverse Sizes: Available in precise diameters from D1 to D4 with multiple L1/D ratio options.
Categories:
Learn More
Download PDF
Description
  • Deep Machining: Extended Flute (Long Flute) design allows for efficient deep side milling and slotting in one pass where standard tools cannot reach.
  • Sharp Cutting Edge: Uncoated (Bright) carbide substrate with polished flutes ensures maximum sharpness, effectively preventing chip welding and heat buildup.
  • High Efficiency: 45° High Helix Angle provides smooth cutting action and rapid chip evacuation, delivering an exceptional surface finish.
  • Diverse Sizes: Available in precise diameters from D1 to D4 with multiple L1/D ratio options.

Order Number Specification D L1 D1 L
HRC60-3SL-01004 D1*4H*D4*50L*3F 1 4 4 50
HRC60-3SL-01005 D1*5H*D4*50L*3F 1 5 4 50
HRC60-3SL-01006 D1*6H*D4*50L*3F 1 6 4 50
HRC60-3SL-01008 D1*8H*D4*50L*3F 1 8 4 50
HRC60-3SL-01505 D1.5*5H*D4*50L*3F 1.5 5 4 50
HRC60-3SL-01506 D1.5*6H*D4*50L*3F 1.5 6 4 50
HRC60-3SL-01508 D1.5*8H*D4*50L*3F 1.5 8 4 50
HRC60-3SL-01510 D1.5*10H*D4*50L*3F 1.5 10 4 50
HRC60-3SL-02008 D2*8H*D4*50L*3F 2 8 4 50
HRC60-3SL-02010 D2*10H*D4*50L*3F 2 10 4 50
HRC60-3SL-02012 D2*12H*D4*50L*3F 2 12 4 50
HRC60-3SL-02016 D2*16H*D4*50L*3F 2 16 4 50
HRC60-3SL-02510 D2.5*10H*D4*50L*3F 2.5 10 4 50
HRC60-3SL-02512 D2.5*12H*D4*50L*3F 2.5 12 4 50
HRC60-3SL-02515 D2.5*15H*D4*50L*3F 2.5 15 4 50
HRC60-3SL-03012 D3*12H*D4*50L*3F 3 12 4 50
HRC60-3SL-03015 D3*15H*D4*50L*3F 3 15 4 50
HRC60-3SL-03020 D3*20H*D4*50L*3F 3 20 4 50
HRC60-3SL-04016 D4*16H*D4*50L*3F 4 16 4 50
HRC60-3SL-04020 D4*20H*D4*50L*3F 4 20 4 50
