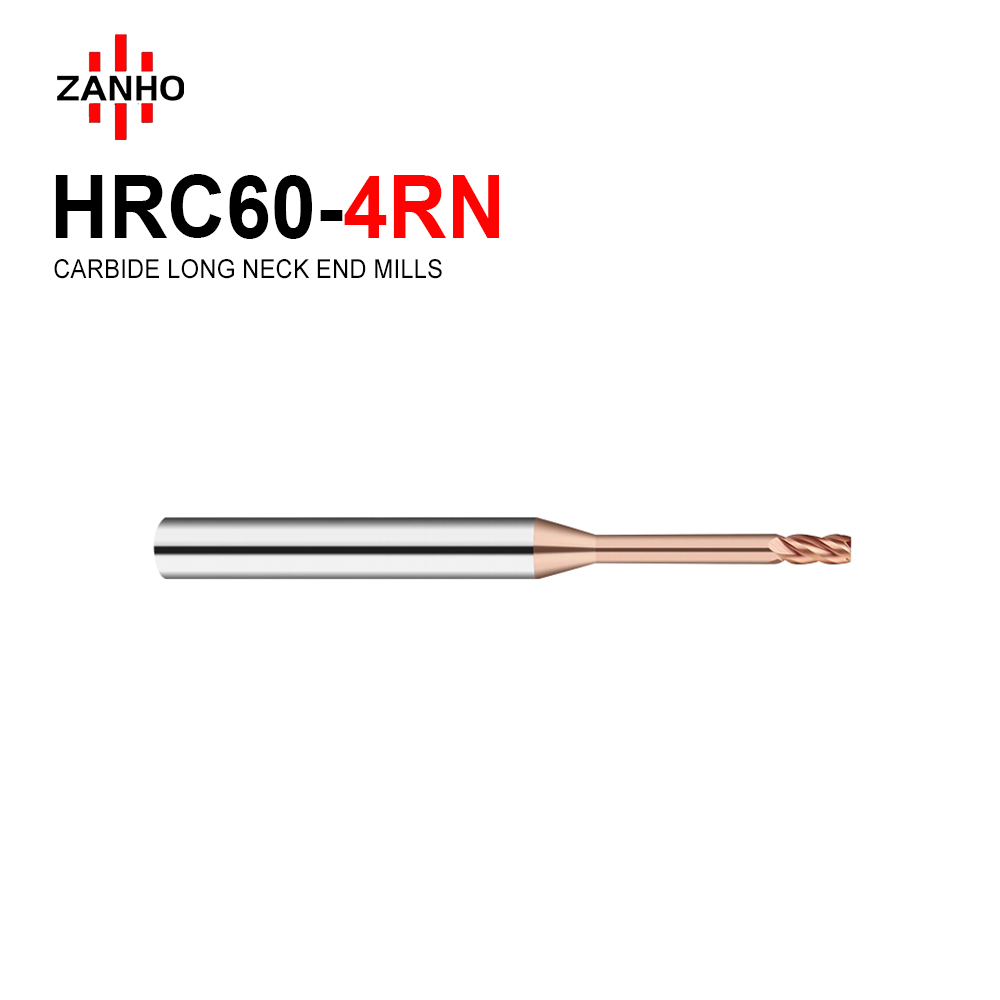

HRC60-4RN

  • Deep Reach Specialist: Engineered with a Long Neck design specifically for stable Deep-Pocket and Profiling operations where standard tools cannot reach.
  • Enhanced Edge Strength: Corner Radius (Bull Nose) design protects the cutting edge from premature chipping, significantly extending tool life in hard steels.
  • 4-Flute High Rigidity: Provides superior tool stiffness and a high-quality surface finish, making it ideal for precision finishing in narrow cavities.
  • Premium TIAISIN Coating: Advanced TiSiN coating ensures exceptional heat resistance and durability for high-speed machining.
  • Precision Specs: Available in diameters D1 to D3 with precision R-angles (R0.2-R0.5) and varied neck lengths for complex mold work.
Categories:
Learn More
Download PDF
Description
  • Deep Reach Specialist: Engineered with a Long Neck design specifically for stable Deep-Pocket and Profiling operations where standard tools cannot reach.
  • Enhanced Edge Strength: Corner Radius (Bull Nose) design protects the cutting edge from premature chipping, significantly extending tool life in hard steels.
  • 4-Flute High Rigidity: Provides superior tool stiffness and a high-quality surface finish, making it ideal for precision finishing in narrow cavities.
  • Premium TIAISIN Coating: Advanced TiSiN coating ensures exceptional heat resistance and durability for high-speed machining.
  • Precision Specs: Available in diameters D1 to D3 with precision R-angles (R0.2-R0.5) and varied neck lengths for complex mold work.

Order Number Specification D R L2 D1 L
HRC60-4RN-010206 D1R0.2*6L*D4*50L*4F 1 0.2 6 4 50
HRC60-4RN-010208 D1R0.2*8L*D4*50L*4F 1 0.2 8 4 50
HRC60-4RN-010210 D1R0.2*10L*D4*50L*4F 1 0.2 10 4 50
HRC60-4RN-010212 D1R0.2*12L*D4*50L*4F 1 0.2 12 4 50
HRC60-4RN-010215 D1R0.2*15L*D4*50L*4F 1 0.2 15 4 50
HRC60-4RN-010220 D1R0.2*20L*D4*50L*4F 1 0.2 20 4 50
HRC60-4RN-015206 D1.5R0.2*6L*D4*50L*4F 1.5 0.2 6 4 50
HRC60-4RN-015208 D1.5R0.2*8L*D4*50L*4F 1.5 0.2 8 4 50
HRC60-4RN-015210 D1.5R0.2*10L*D4*50L*4F 1.5 0.2 10 4 50
HRC60-4RN-015212 D1.5R0.2*12L*D4*50L*4F 1.5 0.2 12 4 50
HRC60-4RN-015215 D1.5R0.2*15L*D4*50L*4F 1.5 0.2 15 4 50
HRC60-4RN-015220 D1.5R0.2*20L*D4*50L*4F 1.5 0.2 20 4 50
HRC60-4RN-020208 D2R0.2*8L*D4*50L*4F 2 0.2 8 4 50
HRC60-4RN-020210 D2R0.2*10L*D4*50L*4F 2 0.2 10 4 50
HRC60-4RN-020212 D2R0.2*12L*D4*50L*4F 2 0.2 12 4 50
HRC60-4RN-020215 D2R0.2*15L*D4*50L*4F 2 0.2 15 4 50
HRC60-4RN-020220 D2R0.2*20L*D4*50L*4F 2 0.2 20 4 50
HRC60-4RN-020508 D2R0.5*8L*D4*50L*4F 2 0.5 8 4 50
HRC60-4RN-020510 D2R0.5*10L*D4*50L*4F 2 0.5 10 4 50
HRC60-4RN-020512 D2R0.5*12L*D4*50L*4F 2 0.5 12 4 50
HRC60-4RN-020515 D2R0.5*15L*D4*50L*4F 2 0.5 15 4 50
HRC60-4RN-020520 D2R0.5*20L*D4*50L*4F 2 0.5 20 4 50
HRC60-4RN-030212 D3R0.2*12L*D4*50L*4F 3 0.2 12 4 50
HRC60-4RN-030215 D3R0.2*15L*D4*50L*4F 3 0.2 15 4 50
HRC60-4RN-030220 D3R0.2*20L*D4*50L*4F 3 0.2 20 4 50
HRC60-4RN-030512 D3R0.5*12L*D4*50L*4F 3 0.5 12 4 50
HRC60-4RN-030515 D3R0.5*15L*D4*50L*4F 3 0.5 15 4 50
HRC60-4RN-030520 D3R0.5*20L*D4*50L*4F 3 0.5 20 4 50
