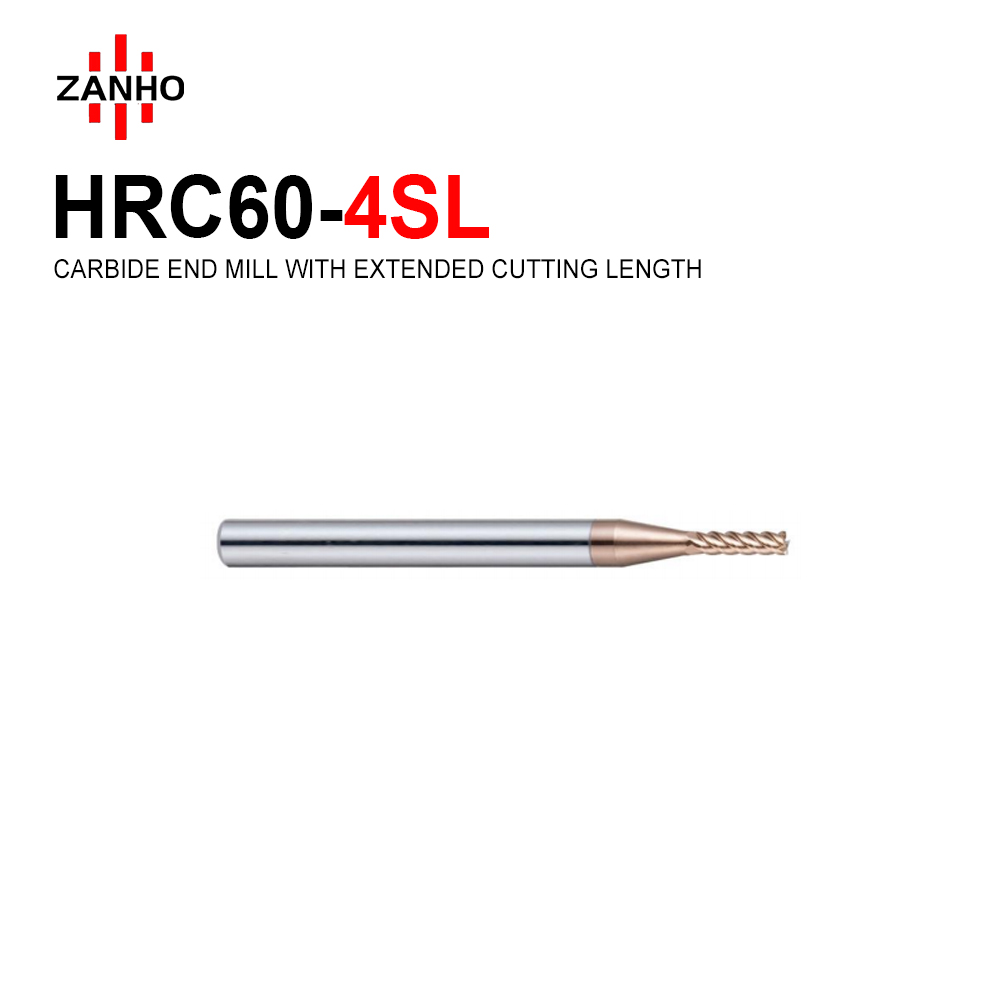

HRC60-4SL

  • Deep Machining Expert: Extended Flute (Long Flute) design is optimized for deep-reach side milling and deep-pocket slotting that standard tools cannot perform.
  • Superior Coating: TiAlSiN (TIAISIN) Coating provides exceptional red-hardness and oxidation resistance, making it ideal for high-speed dry cutting.
  • High Rigidity: Engineered with HRC60 grade tungsten carbide to maintain tool stability and minimize vibration during deep-profile machining.
  • Precision Specs: Available in diameters D1 to D4 with high L1/D ratios (up to 8 times the diameter) for specialized CNC tasks.
Categories:
Learn More
Download PDF
Description

Order Number Specification D L1 D1 L
HRC60-4SL-01004 D1*4H*D4*50L*4F 1 4 4 50
HRC60-4SL-01005 D1*5H*D4*50L*4F 1 5 4 50
HRC60-4SL-01006 D1*6H*D4*50L*4F 1 6 4 50
HRC60-4SL-01008 D1*8H*D4*50L*4F 1 8 4 50
HRC60-4SL-01505 D1.5*5H*D4*50L*4F 1.5 5 4 50
HRC60-4SL-01506 D1.5*6H*D4*50L*4F 1.5 6 4 50
HRC60-4SL-01508 D1.5*8H*D4*50L*4F 1.5 8 4 50
HRC60-4SL-01510 D1.5*10H*D4*50L*4F 1.5 10 4 50
HRC60-4SL-02008 D2*8H*D4*50L*4F 2 8 4 50
HRC60-4SL-02010 D2*10H*D4*50L*4F 2 10 4 50
HRC60-4SL-02012 D2*12H*D4*50L*4F 2 12 4 50
HRC60-4SL-02016 D2*16H*D4*50L*4F 2 16 4 50
HRC60-4SL-02510 D2.5*10H*D4*50L*4F 2.5 10 4 50
HRC60-4SL-02512 D2.5*12H*D4*50L*4F 2.5 12 4 50
HRC60-4SL-02515 D2.5*15H*D4*50L*4F 2.5 15 4 50
HRC60-4SL-03012 D3*12H*D4*50L*4F 3 12 4 50
HRC60-4SL-03015 D3*15H*D4*50L*4F 3 15 4 50
HRC60-4SL-03020 D3*20H*D4*50L*4F 3 20 4 50
HRC60-4SL-04016 D4*16H*D4*50L*4F 4 16 4 50
HRC60-4SL-04020 D4*20H*D4*50L*4F 4 20 4 50
