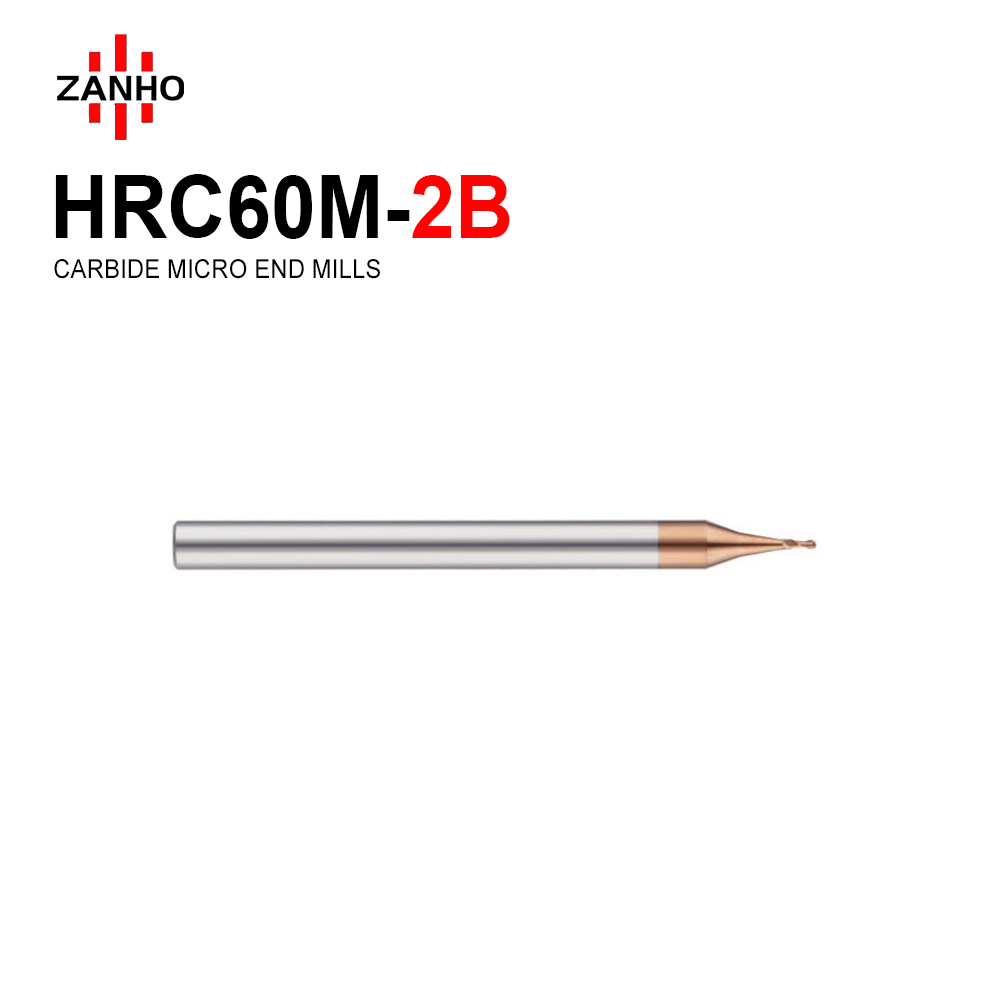

HRC60M-2B-BALL NOSE

  • Micro Diameter Precision: Specialized for ultra-fine 3D Profiling and micro-machining with precision radius sizes from R0.05 to R0.45.
  • Advanced Coating: Features high-performance TiAlSiN Coating for exceptional red-hardness and wear resistance on micro cutting edges.
  • Optimized Geometry: 30° Helix Angle provides the perfect balance between chip evacuation and tool rigidity for stable micro-milling.
  • Workpiece Compatibility: Best suited for Carbon Steel, Alloy Steel, and Stainless Steel with hardness up to 52 HRC.
Categories:
Learn More
Download PDF
Description
  • Micro Diameter Precision: Specialized for ultra-fine 3D Profiling and micro-machining with precision radius sizes from R0.05 to R0.45.
  • Advanced Coating: Features high-performance TiAlSiN Coating for exceptional red-hardness and wear resistance on micro cutting edges.
  • Optimized Geometry: 30° Helix Angle provides the perfect balance between chip evacuation and tool rigidity for stable micro-milling.
  • Workpiece Compatibility: Best suited for Carbon Steel, Alloy Steel, and Stainless Steel with hardness up to 52 HRC.

Order Number Specification D L1 D1 L
HRC60M-2B-00102 R0.05*D4*50L*2F 0.1 0.2 4 50
HRC60M-2B-00204 R0.1*D4*50L*2F 0.2 0.3 4 50
HRC60M-2B-00306 R0.15*D4*50L*2F 0.3 0.6 4 50
HRC60M-2B-00408 R0.2*D4*50L*2F 0.4 0.8 4 50
HRC60M-2B-00510 R0.25*D4*50L*2F 0.5 1 4 50
HRC60M-2B-00612 R0.3*D4*50L*2F 0.6 1.2 4 50
HRC60M-2B-00714 R0.35*D4*50L*2F 0.7 1.4 4 50
HRC60M-2B-00816 R0.4*D4*50L*2F 0.8 1.6 4 50
HRC60M-2B-00918 R0.45*D4*50L*2F 0.9 1.8 4 50
