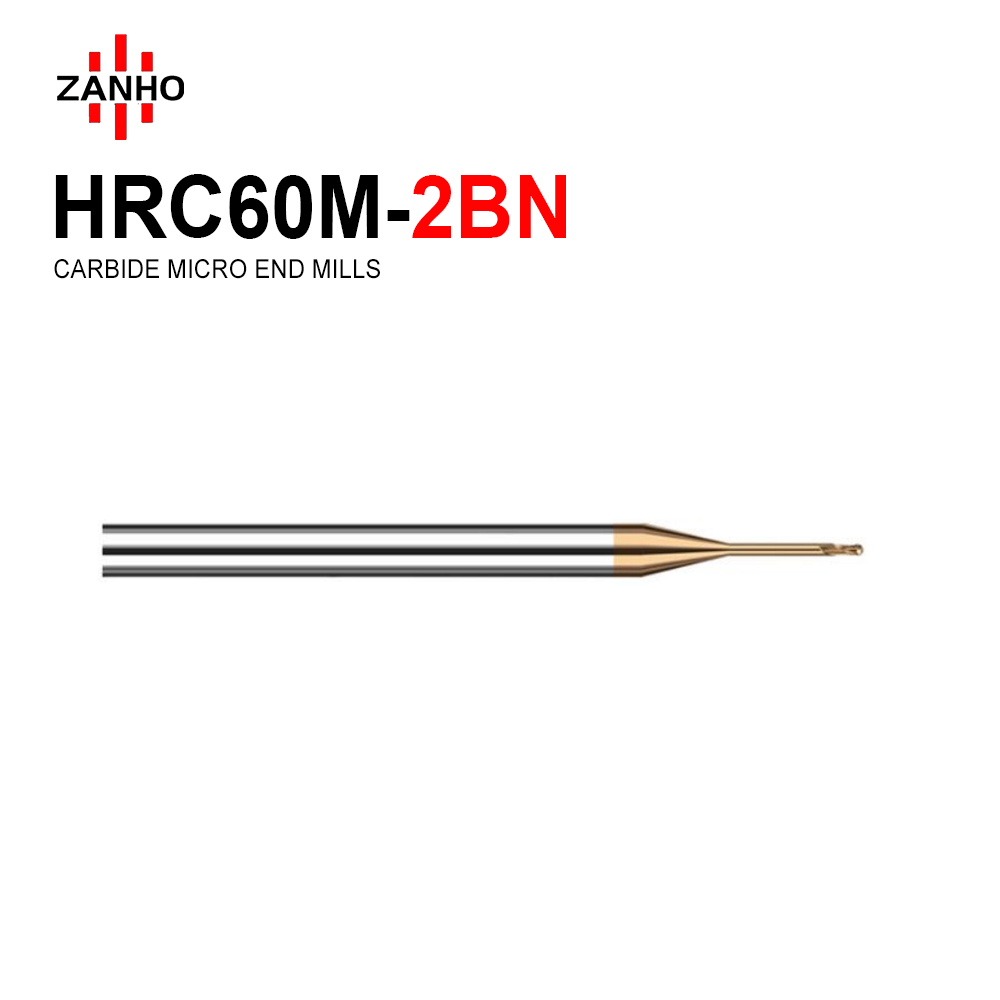

HRC60M-2BN

  • Deep Reach Specialist: Engineered with a Long Neck design specifically for ultra-precise Deep-Pocket 3D Profiling where standard micro tools cannot reach.
  • Interference-Free: The reduced neck diameter allows for deep-groove and narrow-cavity machining without tool interference or collision.
  • Premium TIAISIN Coating: Advanced TiAlSiN coating provides exceptional heat resistance and tool life on delicate micro cutting edges.
  • Optimized Stability: 30° Helix Angle balances cutting forces and rigidity, minimizing deflection in long-neck micro-milling operations.
Categories:
Learn More
Download PDF
Description
  • Deep Reach Specialist: Engineered with a Long Neck design specifically for ultra-precise Deep-Pocket 3D Profiling where standard micro tools cannot reach.
  • Interference-Free: The reduced neck diameter allows for deep-groove and narrow-cavity machining without tool interference or collision.
  • Premium TIAISIN Coating: Advanced TiAlSiN coating provides exceptional heat resistance and tool life on delicate micro cutting edges.
  • Optimized Stability: 30° Helix Angle balances cutting forces and rigidity, minimizing deflection in long-neck micro-milling operations.

Order Number Specification D L2 D1 L
HRC60M-2BN-00201 R0.1*1H*D4*50L*2F 0.2 1 4 50
HRC60M-2BN-00202 R0.1*2H*D4*50L*2F 0.2 2 4 50
HRC60M-2BN-00301 R0.15*1H*D4*50L*2F 0.3 1 4 50
HRC60M-2BN-00302 R0.15*2H*D4*50L*2F 0.3 2 4 50
HRC60M-2BN-00303 R0.15*3H*D4*50L*2F 0.3 3 4 50
HRC60M-2BN-00304 R0.15*4H*D4*50L*2F 0.3 4 4 50
HRC60M-2BN-00402 R0.2*2H*D4*50L*2F 0.4 2 4 50
HRC60M-2BN-00403 R0.2*3H*D4*50L*2F 0.4 3 4 50
HRC60M-2BN-00404 R0.2*4H*D4*50L*2F 0.4 4 4 50
HRC60M-2BN-00405 R0.2*5H*D4*50L*2F 0.4 5 4 50
HRC60M-2BN-00406 R0.2*6H*D4*50L*2F 0.4 6 4 50
HRC60M-2BN-00502 R0.25*2H*D4*50L*2F 0.5 2 4 50
HRC60M-2BN-00503 R0.25*3H*D4*50L*2F 0.5 3 4 50
HRC60M-2BN-00504 R0.25*4H*D4*50L*2F 0.5 4 4 50
HRC60M-2BN-00506 R0.25*6H*D4*50L*2F 0.5 6 4 50
HRC60M-2BN-00508 R0.25*8H*D4*50L*2F 0.5 8 4 50
HRC60M-2BN-00510 R0.25*10H*D4*50L*2F 0.5 10 4 50
HRC60M-2BN-00602 R0.3*2H*D4*50L*2F 0.6 2 4 50
HRC60M-2BN-00603 R0.3*3H*D4*50L*2F 0.6 3 4 50
HRC60M-2BN-00604 R0.3*4H*D4*50L*2F 0.6 4 4 50
HRC60M-2BN-00606 R0.3*6H*D4*50L*2F 0.6 6 4 50
HRC60M-2BN-00608 R0.3*8H*D4*50L*2F 0.6 8 4 50
HRC60M-2BN-00610 R0.3*10H*D4*50L*2F 0.6 10 4 50
HRC60M-2BN-00703 R0.35*3H*D4*50L*2F 0.7 3 4 50
HRC60M-2BN-00704 R0.35*4H*D4*50L*2F 0.7 4 4 50
HRC60M-2BN-00706 R0.35*6H*D4*50L*2F 0.7 6 4 50
HRC60M-2BN-00708 R0.35*8H*D4*50L*2F 0.7 8 4 50
HRC60M-2BN-00710 R0.35*10H*D4*50L*2F 0.7 10 4 50
HRC60M-2BN-00803 R0.4*3H*D4*50L*2F 0.8 3 4 50
HRC60M-2BN-00804 R0.4*4H*D4*50L*2F 0.8 4 4 50
HRC60M-2BN-00806 R0.4*6H*D4*50L*2F 0.8 6 4 50
HRC60M-2BN-00808 R0.4*8H*D4*50L*2F 0.8 8 4 50
HRC60M-2BN-00810 R0.4*10H*D4*50L*2F 0.8 10 4 50
HRC60M-2BN-00903 R0.45*3H*D4*50L*2F 0.9 3 4 50
HRC60M-2BN-00904 R0.45*4H*D4*50L*2F 0.9 4 4 50
HRC60M-2BN-00906 R0.45*6H*D4*50L*2F 0.9 6 4 50
HRC60M-2BN-00908 R0.45*8H*D4*50L*2F 0.9 8 4 50
HRC60M-2BN-00910 R0.45*10H*D4*50L*2F 0.9 10 4 50
