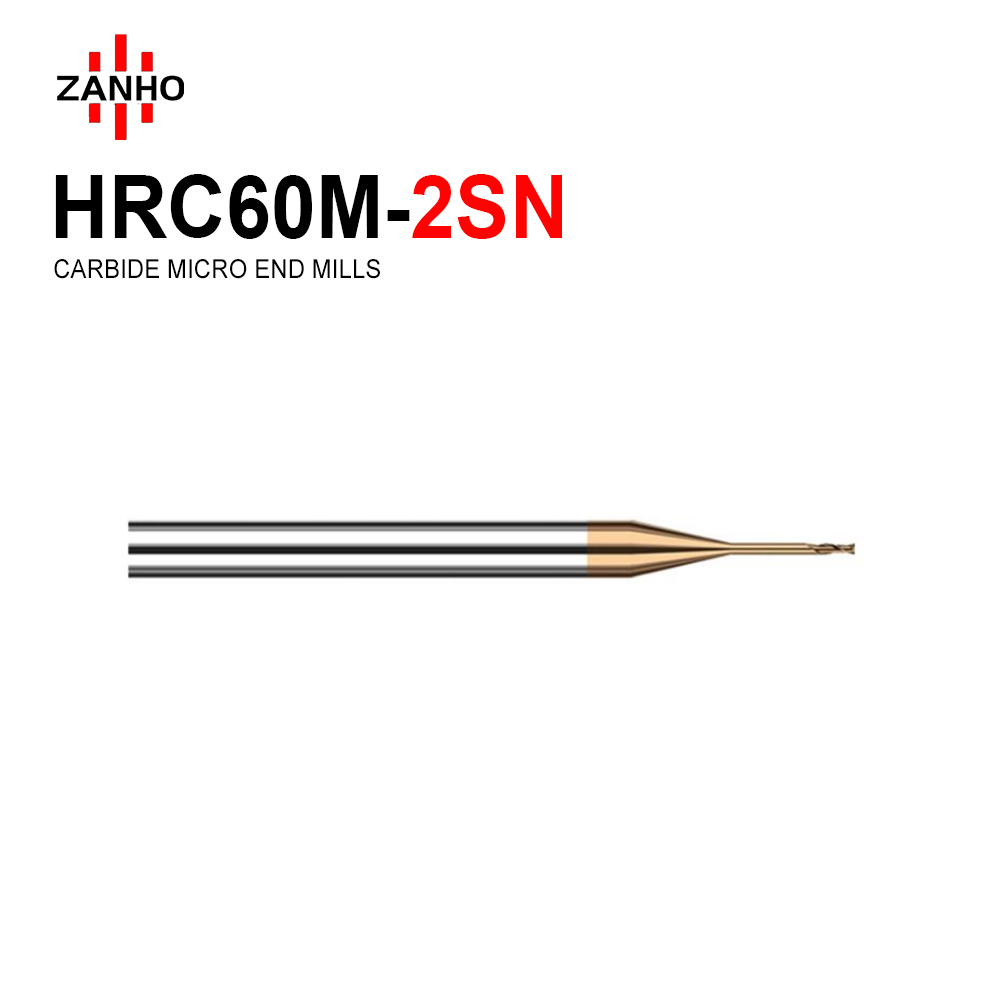

HRC60M-2SN

  • Deep Reach Specialist: Engineered with a Long Neck design specifically for high-precision Deep-Pocket and Narrow-Slot milling where standard tools cannot reach.
  • Enhanced Clearance: The reduced neck diameter allows for deep side milling and cavity work without tool interference or collision.
  • Premium TIAISIN Coating: Advanced TiAlSiN coating provides exceptional heat resistance and tool life for maintenance of edge integrity.
  • Optimized Stability: 30° Helix Angle provides a balanced cutting action, effectively minimizing deflection in long-neck micro-diameter operations.
Categories:
Learn More
Download PDF
Description
  • Deep Reach Specialist: Engineered with a Long Neck design specifically for high-precision Deep-Pocket and Narrow-Slot milling where standard tools cannot reach.
  • Enhanced Clearance: The reduced neck diameter allows for deep side milling and cavity work without tool interference or collision.
  • Premium TIAISIN Coating: Advanced TiAlSiN coating provides exceptional heat resistance and tool life for maintenance of edge integrity.
  • Optimized Stability: 30° Helix Angle provides a balanced cutting action, effectively minimizing deflection in long-neck micro-diameter operations.
Order Number Specification D L2 D1 L
HRC60M-2SN-00201 D0.2*1H*D4*50L*2F 0.2 1 4 50
HRC60M-2SN-00202 D0.2*2H*D4*50L*2F 0.2 2 4 50
HRC60M-2SN-00301 D0.3*1H*D4*50L*2F 0.3 1 4 50
HRC60M-2SN-00302 D0.3*2H*D4*50L*2F 0.3 2 4 50
HRC60M-2SN-00303 D0.3*3H*D4*50L*2F 0.3 3 4 50
HRC60M-2SN-00304 D0.3*4H*D4*50L*2F 0.3 4 4 50
HRC60M-2SN-00402 D0.4*2H*D4*50L*2F 0.4 2 4 50
HRC60M-2SN-00403 D0.4*3H*D4*50L*2F 0.4 3 4 50
HRC60M-2SN-00404 D0.4*4H*D4*50L*2F 0.4 4 4 50
HRC60M-2SN-00405 D0.4*5H*D4*50L*2F 0.4 5 4 50
HRC60M-2SN-00406 D0.4*6H*D4*50L*2F 0.4 6 4 50
HRC60M-2SN-00502 D0.5*2H*D4*50L*2F 0.5 2 4 50
HRC60M-2SN-00503 D0.5*3H*D4*50L*2F 0.5 3 4 50
HRC60M-2SN-00504 D0.5*4H*D4*50L*2F 0.5 4 4 50
HRC60M-2SN-00506 D0.5*6H*D4*50L*2F 0.5 6 4 50
HRC60M-2SN-00508 D0.5*8H*D4*50L*2F 0.5 8 4 50
HRC60M-2SN-00510 D0.5*10H*D4*50L*2F 0.5 10 4 50
HRC60M-2SN-00602 D0.6*2H*D4*50L*2F 0.6 2 4 50
HRC60M-2SN-00603 D0.6*3H*D4*50L*2F 0.6 3 4 50
HRC60M-2SN-00604 D0.6*4H*D4*50L*2F 0.6 4 4 50
HRC60M-2SN-00606 D0.6*6H*D4*50L*2F 0.6 6 4 50
HRC60M-2SN-00608 D0.6*8H*D4*50L*2F 0.6 8 4 50
HRC60M-2SN-00610 D0.6*10H*D4*50L*2F 0.6 10 4 50
HRC60M-2SN-00703 D0.7*3H*D4*50L*2F 0.7 3 4 50
HRC60M-2SN-00704 D0.7*4H*D4*50L*2F 0.7 4 4 50
HRC60M-2SN-00706 D0.7*6H*D4*50L*2F 0.7 6 4 50
HRC60M-2SN-00708 D0.7*8H*D4*50L*2F 0.7 8 4 50
HRC60M-2SN-00710 D0.7*10H*D4*50L*2F 0.7 10 4 50
HRC60M-2SN-00803 D0.8*3H*D4*50L*2F 0.8 3 4 50
HRC60M-2SN-00804 D0.8*4H*D4*50L*2F 0.8 4 4 50
HRC60M-2SN-00806 D0.8*6H*D4*50L*2F 0.8 6 4 50
HRC60M-2SN-00808 D0.8*8H*D4*50L*2F 0.8 8 4 50
HRC60M-2SN-00810 D0.8*10H*D4*50L*2F 0.8 10 4 50
HRC60M-2SN-00903 D0.9*3H*D4*50L*2F 0.9 3 4 50
HRC60M-2SN-00904 D0.9*4H*D4*50L*2F 0.9 4 4 50
HRC60M-2SN-00906 D0.9*6H*D4*50L*2F 0.9 6 4 50
HRC60M-2SN-00908 D0.9*8H*D4*50L*2F 0.9 8 4 50
HRC60M-2SN-00910 D0.9*10H*D4*50L*2F 0.9 10 4 50
