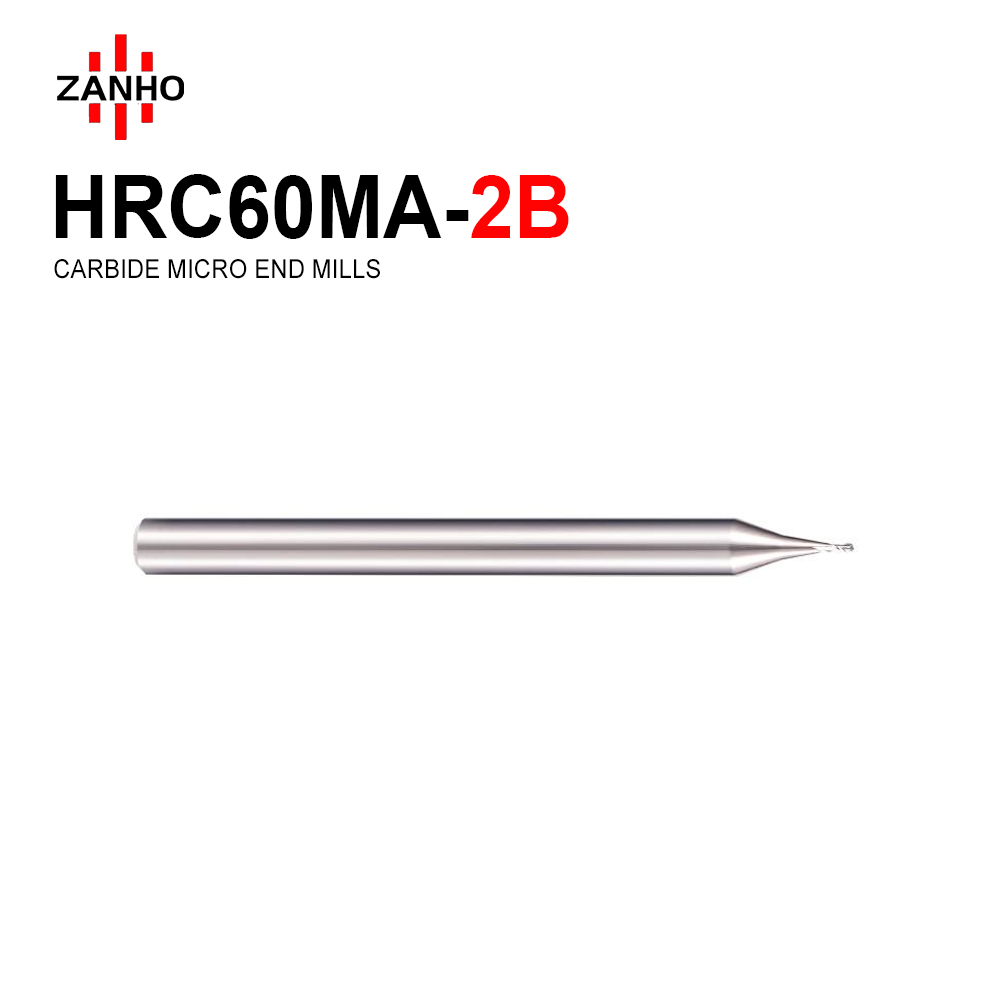

HRC60MA-2B

  • 3D Micro-Machining: Specialized for ultra-fine 3D Profiling and intricate contouring in aluminum and non-ferrous metals.
  • Extreme Precision: Available in micro radius sizes from R0.05 to R0.45 (D0.1-D0.9 mm) for the most demanding micro-milling tasks.
  • Sharp & Clean Cutting: Uncoated (Bright) carbide provides the sharpest cutting edge possible, effectively preventing chip welding and ensuring a high-gloss surface finish.
  • Optimized Geometry: 30° Helix Angle provides stable cutting action and effective chip removal for micro-diameter applications.
  • Broad Compatibility: Perfectly suited for Aluminum, Copper, and Plastics (Workpiece category N).
Categories:
Learn More
Download PDF
Description
  • 3D Micro-Machining: Specialized for ultra-fine 3D Profiling and intricate contouring in aluminum and non-ferrous metals.
  • Extreme Precision: Available in micro radius sizes from R0.05 to R0.45 (D0.1-D0.9 mm) for the most demanding micro-milling tasks.
  • Sharp & Clean Cutting: Uncoated (Bright) carbide provides the sharpest cutting edge possible, effectively preventing chip welding and ensuring a high-gloss surface finish.
  • Optimized Geometry: 30° Helix Angle provides stable cutting action and effective chip removal for micro-diameter applications.
  • Broad Compatibility: Perfectly suited for Aluminum, Copper, and Plastics (Workpiece category N).

Order Number Specification D L1 D1 L
HRC60MA-2B-00102 R0.05*D4*50L*2F 0.1 0.2 4 50
HRC60MA-2B-00204 R0.1*D4*50L*2F 0.2 0.3 4 50
HRC60MA-2B-00306 R0.15*D4*50L*2F 0.3 0.6 4 50
HRC60MA-2B-00408 R0.2*D4*50L*2F 0.4 0.8 4 50
HRC60MA-2B-00510 R0.25*D4*50L*2F 0.5 1 4 50
HRC60MA-2B-00612 R0.3*D4*50L*2F 0.6 1.2 4 50
HRC60MA-2B-00714 R0.35*D4*50L*2F 0.7 1.4 4 50
HRC60MA-2B-00816 R0.4*D4*50L*2F 0.8 1.6 4 50
HRC60MA-2B-00918 R0.45*D4*50L*2F 0.9 1.8 4 50
