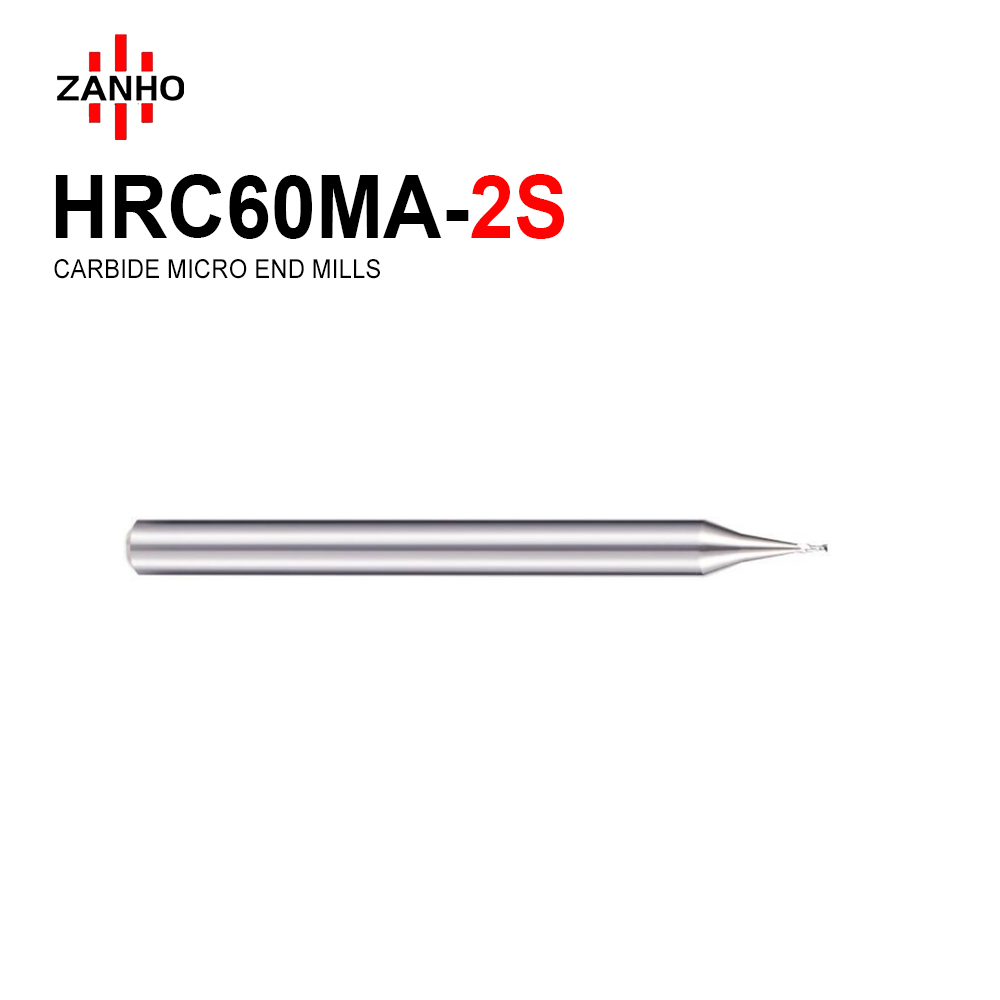

HRC60MA-2S

  • Aluminum Specialist: Engineered specifically for high-precision Aluminum Alloy and non-ferrous metal micro-machining.
  • Ultra-Small Diameters: Available in high-precision cutting diameters from 0.1mm to 0.9mm (D0.1-D0.9) for intricate detail work.
  • Sharp Cutting Edge: Uncoated (Bright) finish ensures the sharpest possible cutting edge, effectively preventing chip welding and heat buildup in soft metals.
  • Optimized Stability: 30° Helix Angle provides the perfect balance between tool rigidity and efficient chip removal in micro-diameter applications.
  • Workpiece Compatibility: Best suited for Aluminum, Copper, Plastic, and other non-ferrous materials (Workpiece category N).
Categories:
Learn More
Download PDF
Description
  • Aluminum Specialist: Engineered specifically for high-precision Aluminum Alloy and non-ferrous metal micro-machining.
  • Ultra-Small Diameters: Available in high-precision cutting diameters from 0.1mm to 0.9mm (D0.1-D0.9) for intricate detail work.
  • Sharp Cutting Edge: Uncoated (Bright) finish ensures the sharpest possible cutting edge, effectively preventing chip welding and heat buildup in soft metals.
  • Optimized Stability: 30° Helix Angle provides the perfect balance between tool rigidity and efficient chip removal in micro-diameter applications.
  • Workpiece Compatibility: Best suited for Aluminum, Copper, Plastic, and other non-ferrous materials (Workpiece category N).

Order Number Specification D L1 D1 L
HRC60MA-2S-00102 D0.1*D4*50L*2F 0.1 0.2 4 50
HRC60MA-2S-00204 D0.2*D4*50L*2F 0.2 0.3 4 50
HRC60MA-2S-00306 D0.3*D4*50L*2F 0.3 0.6 4 50
HRC60MA-2S-00408 D0.4*D4*50L*2F 0.4 0.8 4 50
HRC60MA-2S-00510 D0.5*D4*50L*2F 0.5 1 4 50
HRC60MA-2S-00612 D0.6*D4*50L*2F 0.6 1.2 4 50
HRC60MA-2S-00714 D0.7*D4*50L*2F 0.7 1.4 4 50
HRC60MA-2S-00816 D0.8*D4*50L*2F 0.8 1.6 4 50
HRC60MA-2S-00918 D0.9*D4*50L*2F 0.9 1.8 4 50
