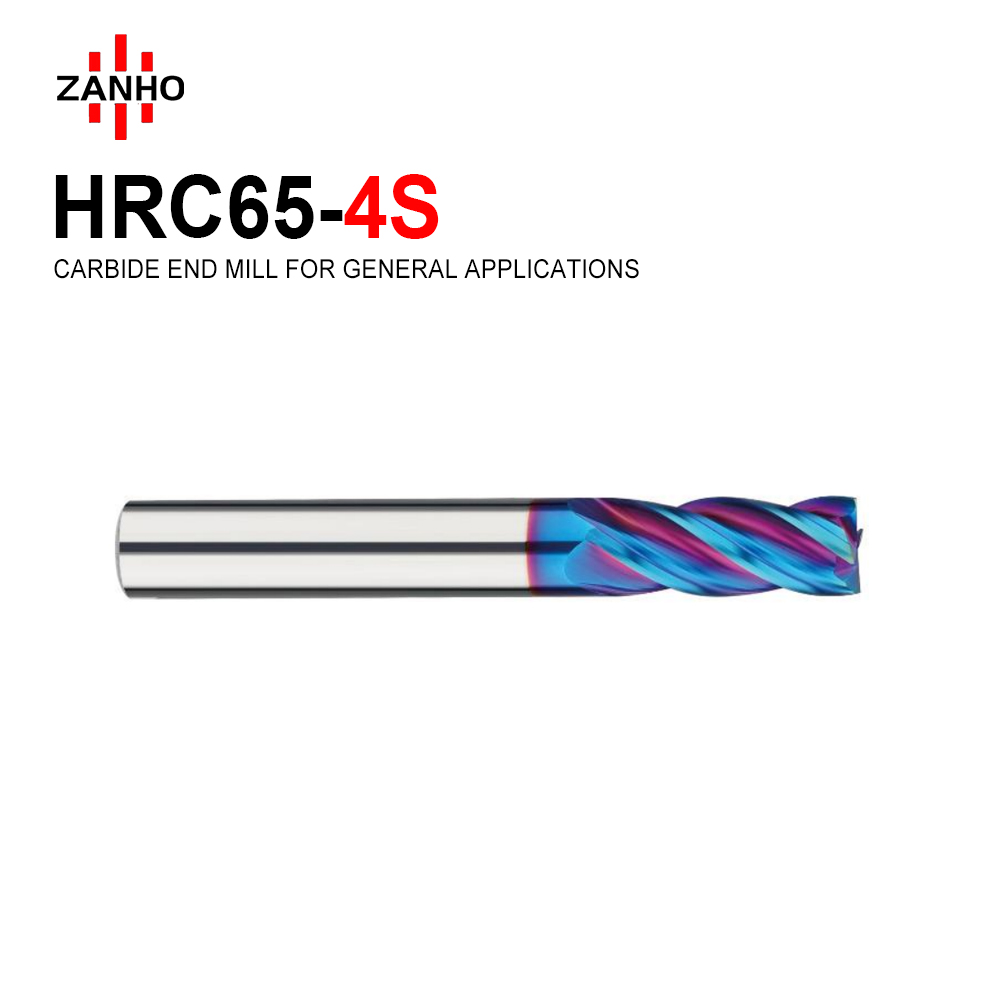

HRC65-4S-SQUARE

  • Premium Series: Specifically engineered for extreme high-hardness materials up to 65 HRC.
  • Advanced Coating: Nano Blue Coating provides industry-leading oxidation resistance and red hardness.
  • Substrate: Made from ultra-fine micro-grain carbide for maximum tool rigidity and durability.
  • Helix Angle: 35° Helix Angle optimized for high-speed cutting in hardened mold and tool steels.
  • Workpiece: Ideal for Hardened Steel, Stainless Steel, and Alloy Steel under extreme
Categories:
Learn More
Download PDF
Description

Order Number Specification D L1 D1 L
HRC65-4S-01003 D1*D4*50L*4F 1 3 4 50
HRC65-4S-61003 D1*D6*50L*4F 1 3 6 50
HRC65-4S-01505 D1.5*D4*50L*4F 1.5 5 4 50
HRC65-4S-61505 D1.5*D6*50L*4F 1.5 5 6 50
HRC65-4S-02006 D2*D4*50L*4F 2 6 4 50
HRC65-4S-62006 D2*D6*50L*4F 2 6 6 50
HRC65-4S-02507 D2.5*D4*50L*4F 2.5 8 4 50
HRC65-4S-62507 D2.5*D6*50L*4F 2.5 8 6 50
HRC65-4S-33009 D3*D3*50L*4F 3 9 3 50
HRC65-4S-03009 D3*D4*50L*4F 3 9 4 50
HRC65-4S-63009 D3*D6*50L*4F 3 9 6 50
HRC65-4S-03511 D3.5*D4*50L*4F 3.5 11 4 50
HRC65-4S-04012 D4*D4*50L*4F 4 12 4 50
HRC65-4S-64012 D4*D6*50L*4F 4 12 6 50
HRC65-4S-55015 D5*D5*50L*4F 5 13 5 50
HRC65-4S-05015 D5*D6*50L*4F 5 15 6 50
HRC65-4S-06015 D6*D6*50L*4F 6 15 6 50
HRC65-4S-06018 D6*D6*50L*4F 6 18 6 50
HRC65-4S-08020 D8*D8*60L*4F 8 20 8 60
HRC65-4S-08024 D8*D8*60L*4F 8 24 8 60
HRC65-4S-10025 D10*D10*75L*4F 10 25 10 75
HRC65-4S-10030 D10*D10*75L*4F 10 30 10 75
HRC65-4S-12030 D12*D12*75L*4F 12 30 12 75
HRC65-4S-12035 D12*D12*75L*4F 12 35 12 75
HRC65-4S-14045 D14*D14*100L*4F 14 45 14 100
HRC65-4S-16045 D16*D16*100L*4F 16 45 16 100
HRC65-4S-18045 D18*D18*100L*4F 18 45 18 100
HRC65-4S-20045 D20*D20*100L*4F 20 45 20 100
HRC65-4SH-01004 D1*D4*75L*4F 1 4 4 75
HRC65-4SH-01506 D1.5*D4*75L*4F 1.5 6 4 75
HRC65-4SH-02008 D2*D4*75L*4F 2 8 4 75
HRC65-4SH-02510 D2.5*D4*75L*4F 2.5 10 4 75
HRC65-4SH-03012 D3*D4*75L*4F 3 12 4 75
HRC65-4SH-33012 D3*D3*75L*4F 3 12 3 75
HRC65-4SH-03015 D3*D3*100L*4F 3 15 3 100
HRC65-4SH-04016 D4*D4*75L*4F 4 16 4 75
HRC65-4SH-04020 D4*D4*100L*4F 4 20 4 100
HRC65-4SH-05020 D5*D5*75L*4F 5 20 5 75
HRC65-4SH-06024 D6*D6*75L*4F 6 24 6 75
HRC65-4SH-05025 D5*D5*100L*4F 5 25 5 100
HRC65-4SH-06030 D6*D6*100L*4F 6 30 6 100
HRC65-4SH-06040 D6*D6*150L*4F 6 40 6 150
HRC65-4SH-08030 D8*D8*75L*4F 8 30 8 75
HRC65-4SH-08035 D8*D8*100L*4F 8 35 8 100
HRC65-4SH-08045 D8*D8*150L*4F 8 45 8 150
HRC65-4SH-10040 D10*D10*100L*4F 10 40 10 100
HRC65-4SH-10050 D10*D10*100L*4F 10 50 10 100
HRC65-4SH-10055 D10*D10*150L*4F 10 55 10 150
HRC65-4SH-12045 D12*D12*100L*4F 12 45 12 100
HRC65-4SH-12050 D12*D12*100L*4F 12 50 12 100
HRC65-4SH-12055 D12*D12*150L*4F 12 55 12 150
HRC65-4SH-14060 D14*D14*150L*4F 14 60 14 150
HRC65-4SH-16075 D16*D16*150L*4F 16 75 16 150
HRC65-4SH-18075 D18*D18*150L*4F 18 75 18 150
HRC65-4SH-20075 D20*D20*150L*4F 20 75 20 150
HRC65-4SH-06050 D6*D6*200L*4F 6 50 6 200
HRC65-4SH-08070 D8*D8*200L*4F 8 70 8 200
HRC65-4SH-10080 D10*D10*200L*4F 10 80 10 200
HRC65-4SH-12080 D12*D12*200L*4F 12 80 12 200
HRC65-4SH-140100 D14*D14*200L*4F 14 100 14 200
HRC65-4SH-160100 D16*D16*200L*4F 16 100 16 200
HRC65-4SH-180100 D18*D18*200L*4F 18 100 18 200
HRC65-4SH-200100 D20*D20*200L*4F 20 100 20 200
