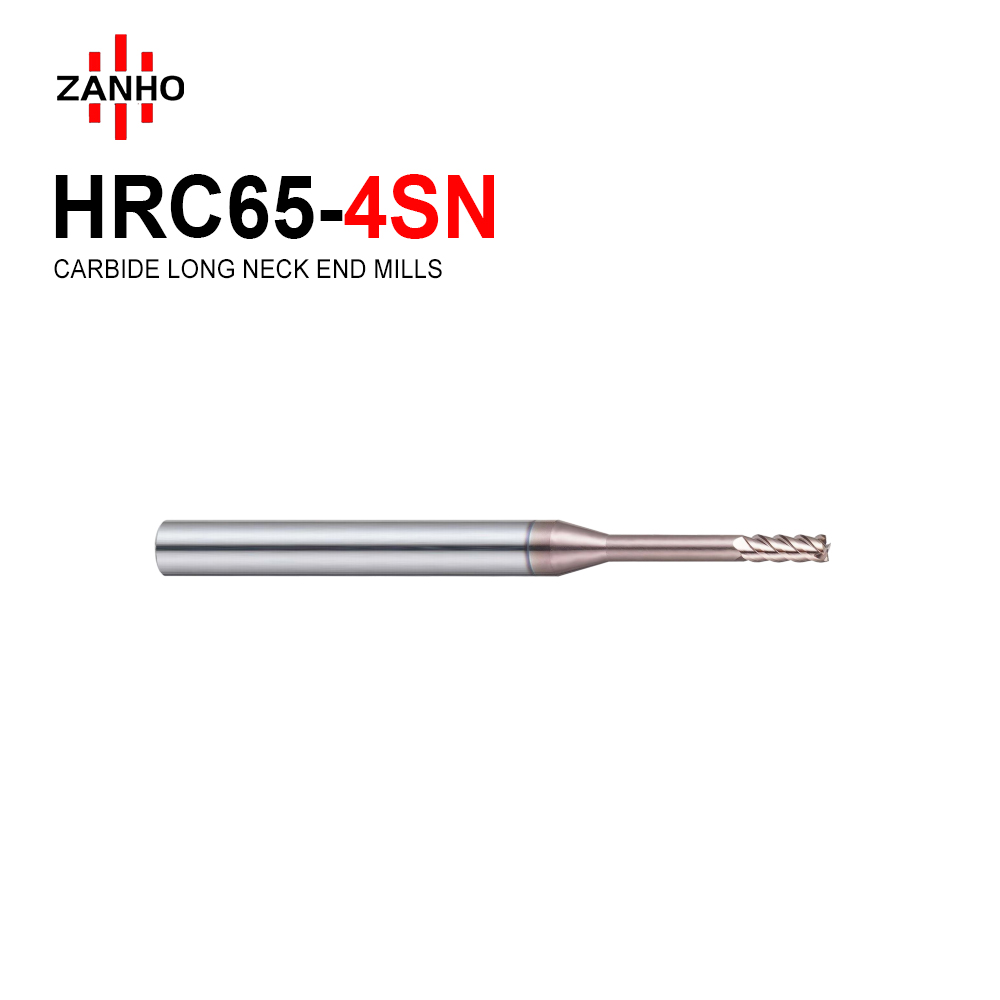

HRC65-4SN

  • Elite Deep Reach: Specifically engineered with a Long Neck design for ultra-precise Deep-Pocket and Narrow-Slot milling where standard length tools fail.
  • Premium TIAISIN Coating: Advanced TiAlSiN coating provides exceptional red-hardness and wear resistance, maintaining edge integrity in demanding CNC operations.
  • 4-Flute High Stability: 4-flute design offers superior tool rigidity and delivers a high-quality surface finish, ideal for fine finishing in deep cavities.
  • Interference-Free: The reduced neck diameter ensures smooth side milling without tool interference or collision in complex 3D profiles.
Categories:
Learn More
Download PDF
Description
  • Elite Deep Reach: Specifically engineered with a Long Neck design for ultra-precise Deep-Pocket and Narrow-Slot milling where standard length tools fail.
  • Premium TIAISIN Coating: Advanced TiAlSiN coating provides exceptional red-hardness and wear resistance, maintaining edge integrity in demanding CNC operations.
  • 4-Flute High Stability: 4-flute design offers superior tool rigidity and delivers a high-quality surface finish, ideal for fine finishing in deep cavities.
  • Interference-Free: The reduced neck diameter ensures smooth side milling without tool interference or collision in complex 3D profiles.

Order Number Specification D L2 D1 L
HRC65-4SN-01006 D1*6L*D4*50L*4F 1 6 4 50
HRC65-4SN-01008 D1*8L*D4*50L*4F 1 8 4 50
HRC65-4SN-01010 D1*10L*D4*50L*4F 1 10 4 50
HRC65-4SN-01012 D1*12L*D4*50L*4F 1 12 4 50
HRC65-4SN-01015 D1*15L*D4*50L*4F 1 15 4 50
HRC65-4SN-01020 D1*20L*D4*50L*4F 1 20 4 50
HRC65-4SN-01506 D1.5*6L*D4*50L*4F 1.5 6 4 50
HRC65-4SN-01508 D1.5*8L*D4*50L*4F 1.5 8 4 50
HRC65-4SN-01510 D1.5*10L*D4*50L*4F 1.5 10 4 50
HRC65-4SN-01512 D1.5*12L*D4*50L*4F 1.5 12 4 50
HRC65-4SN-01515 D1.5*15L*D4*50L*4F 1.5 15 4 50
HRC65-4SN-01520 D1.5*20L*D4*50L*4F 1.5 20 4 50
HRC65-4SN-02008 D2*8L*D4*50L*4F 2 8 4 50
HRC65-4SN-02010 D2*10L*D4*50L*4F 2 10 4 50
HRC65-4SN-02012 D2*12L*D4*50L*4F 2 12 4 50
HRC65-4SN-02015 D2*15L*D4*50L*4F 2 15 4 50
HRC65-4SN-02020 D2*20L*D4*50L*4F 2 20 4 50
HRC65-4SN-02510 D2.5*10L*D4*50L*4F 2.5 10 4 50
HRC65-4SN-02512 D2.5*12L*D4*50L*4F 2.5 12 4 50
HRC65-4SN-02515 D2.5*15L*D4*50L*4F 2.5 15 4 50
HRC65-4SN-02520 D2.5*20L*D4*50L*4F 2.5 20 4 50
HRC65-4SN-03012 D3*12L*D4*50L*4F 3 12 4 50
HRC65-4SN-03015 D3*15L*D4*50L*4F 3 15 4 50
HRC65-4SN-03020 D3*20L*D4*50L*4F 3 20 4 50
