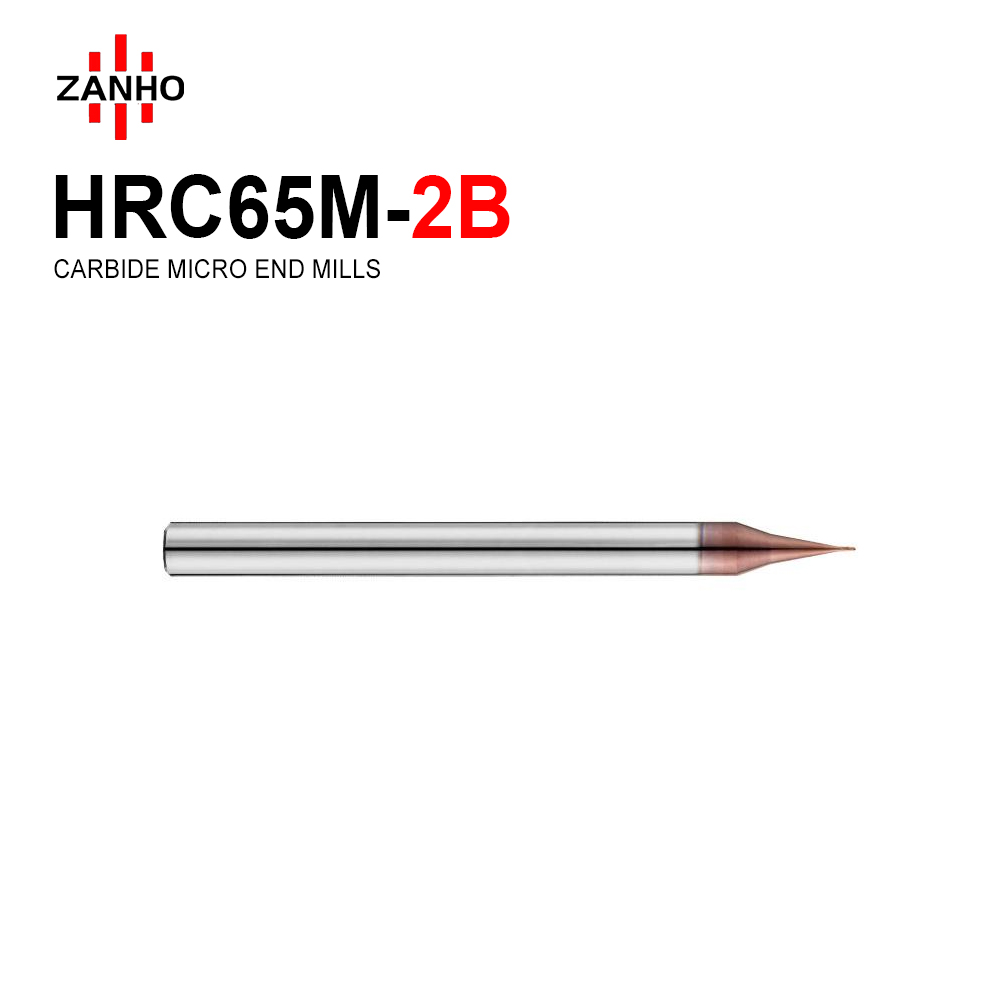

HRC65M-2B

  • 3D Micro-Machining Specialist: Specifically engineered for ultra-fine 3D Profiling and intricate contouring in hardened steels and mold components.
  • Precision Micro Radii: Available in micro radius sizes from R0.05 to R0.45 (D0.1 to D0.9 mm) to meet the most exacting machining specifications.
  • Advanced Thermal Protection: Features high-performance TiAlSiN Coating for exceptional red-hardness and wear resistance, maintaining edge integrity in hard steel.
  • High HRC Stability: Capable of stable processing for workpieces with hardness up to 58 HRC (optimized for HRC48-55 range).
Categories:
Learn More
Download PDF
Description
  • 3D Micro-Machining Specialist: Specifically engineered for ultra-fine 3D Profiling and intricate contouring in hardened steels and mold components.
  • Precision Micro Radii: Available in micro radius sizes from R0.05 to R0.45 (D0.1 to D0.9 mm) to meet the most exacting machining specifications.
  • Advanced Thermal Protection: Features high-performance TiAlSiN Coating for exceptional red-hardness and wear resistance, maintaining edge integrity in hard steel.
  • High HRC Stability: Capable of stable processing for workpieces with hardness up to 58 HRC (optimized for HRC48-55 range).

Order Number Specification D L1 D1 L
HRC65M-2B-00102 R0.05*D4*50L*2F 0.1 0.2 4 50
HRC65M-2B-00204 R0.1*D4*50L*2F 0.2 0.3 4 50
HRC65M-2B-00306 R0.15*D4*50L*2F 0.3 0.6 4 50
HRC65M-2B-00408 R0.2*D4*50L*2F 0.4 0.8 4 50
HRC65M-2B-00510 R0.25*D4*50L*2F 0.5 1 4 50
HRC65M-2B-00612 R0.3*D4*50L*2F 0.6 1.2 4 50
HRC65M-2B-00714 R0.35*D4*50L*2F 0.7 1.4 4 50
HRC65M-2B-00816 R0.4*D4*50L*2F 0.8 1.6 4 50
HRC65M-2B-00918 R0.45*D4*50L*2F 0.9 1.8 4 50
