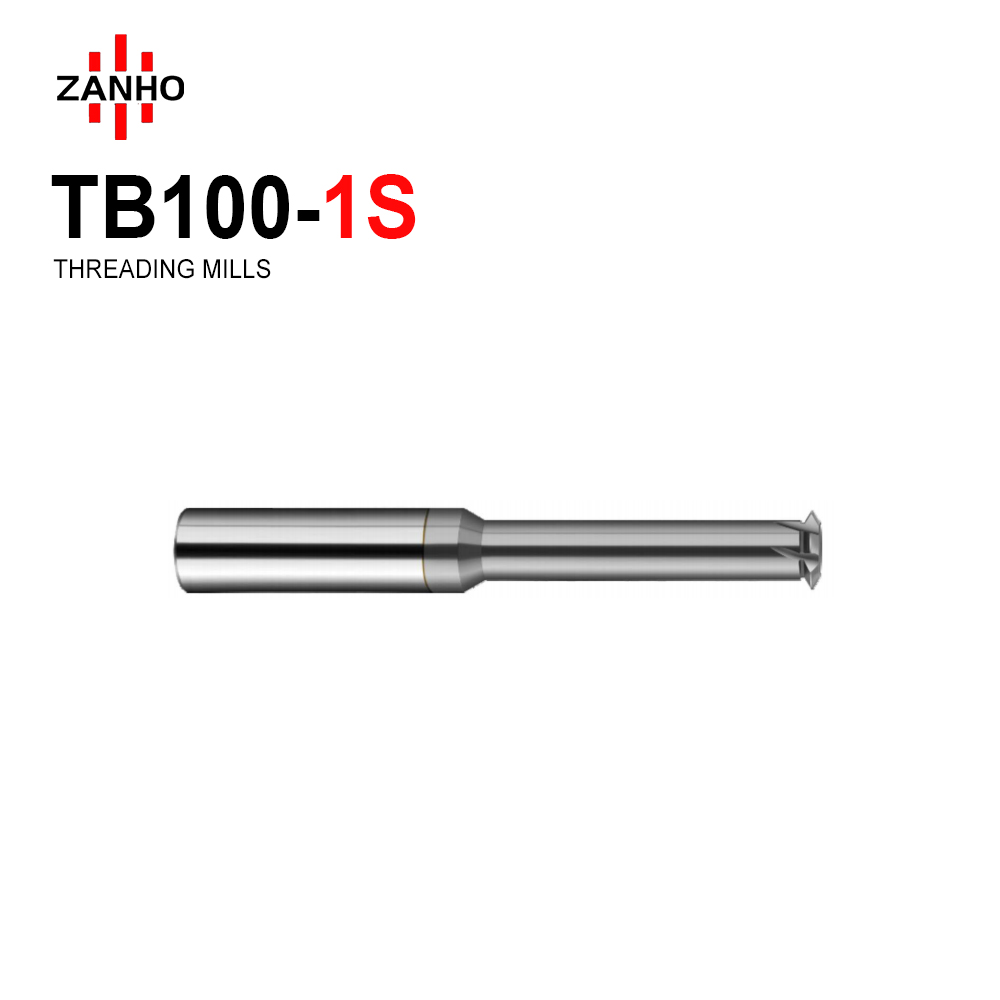

ISO-Single Tooth Thread Mill

  • Ultimate Versatility: Single-Tooth Design allows one tool to machine multiple thread pitches for the same thread profile, significantly reducing tooling inventory and costs.
  • Micro to Large Capacity: Extensive range covering ultra-fine threads starting from M0.8 up to large-scale M30+ industrial threading tasks.
  • High Rigidity Substrate: Made from premium sub-micron carbide to ensure exceptional dimensional accuracy and superior surface finish in internal threads.
  • Wide Spec Range: Available in cutting diameters from D0.55 to D16 with varied effective lengths (L1) to meet all precision CNC demands.
Categories:
Learn More
Download PDF
Description
  • Ultimate Versatility: Single-Tooth Design allows one tool to machine multiple thread pitches for the same thread profile, significantly reducing tooling inventory and costs.
  • Micro to Large Capacity: Extensive range covering ultra-fine threads starting from M0.8 up to large-scale M30+ industrial threading tasks.
  • High Rigidity Substrate: Made from premium sub-micron carbide to ensure exceptional dimensional accuracy and superior surface finish in internal threads.
  • Wide Spec Range: Available in cutting diameters from D0.55 to D16 with varied effective lengths (L1) to meet all precision CNC demands.
订货号 Order Number 规格 Specification 牙距 P 刀径 D 有效长 L1 柄径 D1 总长 L
TB100-1S-0080200 M0.8x0.2 0.2–0.225 0.55 2 4 50
TB100-1S-0090225 M0.9x0.225 0.225–0.3 0.6 2 4 50
TB100-1S-0100250 M1x0.25 0.25–0.35 0.73 2.3 4 50
TB100-1S-0120250 M1.2x0.25 0.25–0.35 0.92 2.8 4 50
TB100-1S-0140300 M1.4x0.3 0.3–0.4 1.05 3.2 4 50
TB100-1S-0160350 M1.6x0.35 0.35–0.4 1.21 3.5 4 50
TB100-1S-0200400 M2x0.4 0.4–0.5 1.54 4.5 4 50
TB100-1S-0250450 M2.5x0.45 0.45–0.5 1.96 5.5 4 50
TB100-1S-0300500 M3x0.5 0.5–0.6 2.4 7 4 50
TB100-1S-0400700 M4x0.7 0.5–0.8 3.15 10 4 50
TB100-1S-4500800 M5x0.8 0.5–1.0 4 12 4 50
TB100-1S-0500800 M5x0.8 0.5–1.0 4 13 6 50
TB100-1S-0601000 M6x1.0 0.5–1.0 4.75 15 6 50
TB100-1S-0801250 M8x1.25 0.5–1.25 5.95 20 6 60
TB100-1S-1001500 M10x1.5 0.8–1.5 7.9 25 8 60
TB100-1S-1201750 M12x1.75 1.0–2.5 9.9 30 10 75
TB100-1S-1602000 M16x2.0 1.0–3.0 11.9 35 12 75
TB100-1S-1802500 M18x2.5 1.0–4.0 14 40 14 100
TB100-1S-2002500 M20x2.5 2.0–5.0 16 45 16 100
TB100-1S-2403000 M24x3.0 2.0–5.0 16 45 16 100
TB100-1S-3003500 M30x3.5 3.0–6.0 20 50 20 100
