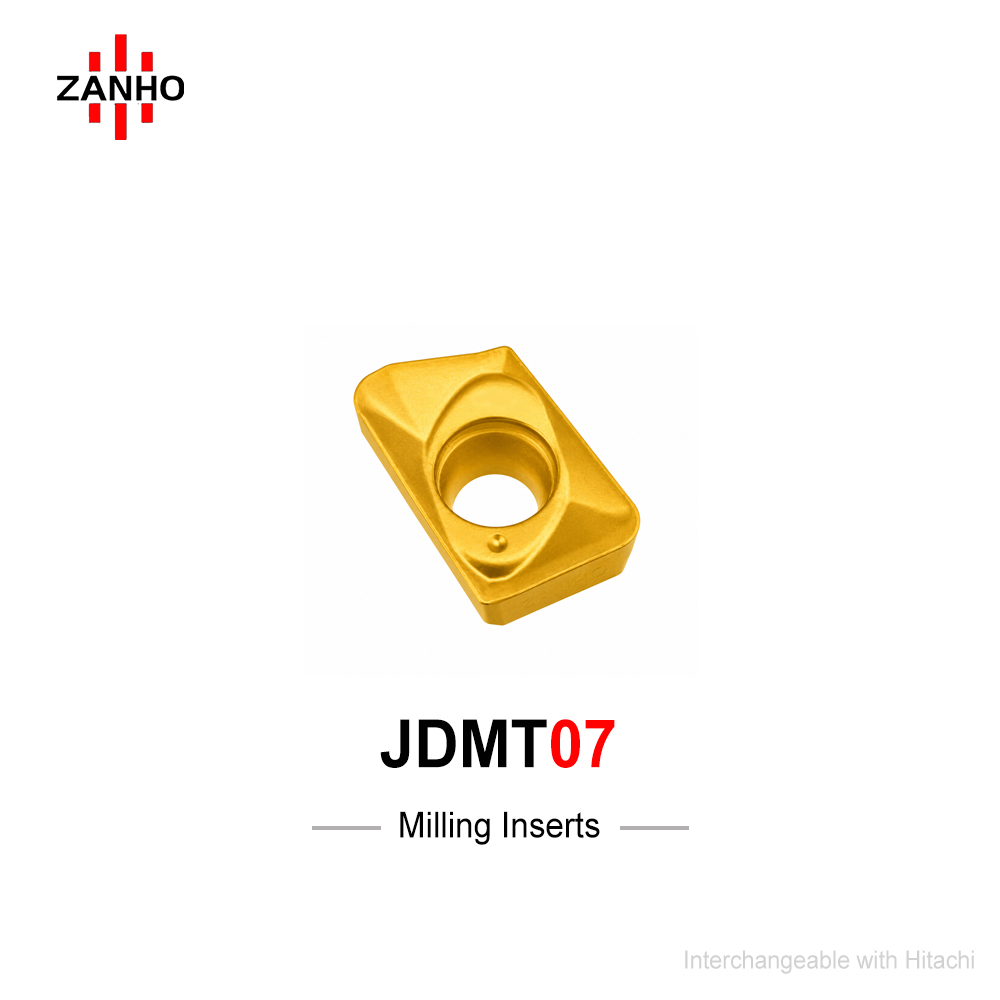

JDMT07 Insert

ZANHO JDMT07 series is designed for small-diameter square shoulder milling. Specifically optimized for narrow cavities and deep cavity shoulder/plunging, it features a large rake angle chipbreaker to minimize cutting resistance. Ideal for low-power machine tools and long-reach applications with a 5.0mm max ap.
Categories:
Learn More
Download PDF
Description

Core Advantages

  • Small-Diameter Specialist: Specifically designed for ASM07 series small diameter milling cutters, perfect for narrow workspaces.
  • Low Cutting Resistance: 15° large relief angle and optimized 3D chipbreaker geometry ensure smooth chip flow and reduced spindle load.
  • Deep Cavity Versatility: High performance in square shoulder milling, narrow cavity roughing, and plunging operations.
  • Machine Friendly: Optimized for low-power CNC machines and long overhang setups to minimize vibration.
  • Max Efficiency: Single-sided design with 2 effective cutting edges, supporting up to 5.0mm depth of cut (ap).

Specifications (mm)

Model A (Length) B (Width) Radius (Re) T (Thickness) Φd (Hole)
JDMT070204R 6.40 4.30 0.40 2.45 2.15
JDMT070208R 6.40 4.30 0.80 2.45 2.15

Precision Solution for Narrow Shoulder Milling

ZANHO JDMT07 inserts provide exceptional stability in small-scale roughing. Contact us for bulk B2B inquiry and tool matching.

Looking for the right specification, grade, or coating for your market?

Send us your requirements below. Our sales team will provide product recommendations, competitive pricing, and OEM options based on your needs. For distributors, wholesalers & importers — bulk order inquiries are welcome.
