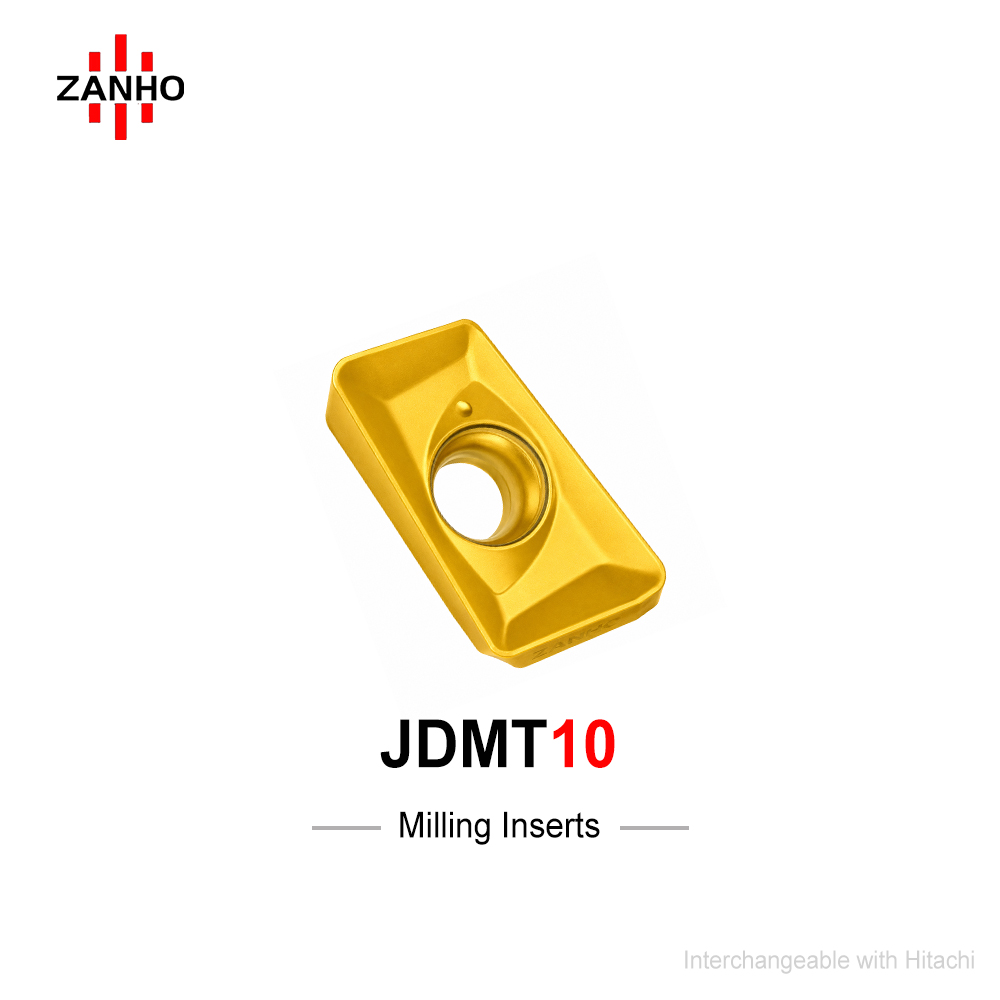

JDMT100308R

ZANHO JDMT100308R is a high-performance square shoulder milling insert designed for ASM-10 and AHU series holders. Featuring a 15° relief angle and low-resistance geometry, it balances superior chip evacuation with edge toughness. With a 7.0mm max ap, it is ideal for cavity roughing and precise 90° step milling.
Categories:
Learn More
Download PDF
Description

Core Advantages

  • 90° Square Shoulder Precision: Optimized for ASM-10 and AHU series tool holders, ensuring accurate perpendicular steps and shoulder quality.
  • Low Cutting Resistance: Features a 15° large primary relief angle to reduce spindle load and minimize friction during heavy roughing.
  • High Removal Rate: Supports a maximum depth of cut (ap) up to 7.0mm, significantly improving machining efficiency in cavity roughing.
  • Optimized Chip Flow: Specifically designed to balance chip evacuation efficiency and cutting edge strength for stable medium-diameter milling.
  • Dual-Edge Efficiency: Single-sided design with 2 effective cutting edges, providing a reliable and cost-effective solution for CNC milling.

Specifications (mm)

Model Thickness (s) Radius (rε) Max ap Edges
JDMT100308R 3.18 mm R0.8 mm 7.0 mm 2 (Single-sided)

High-Efficiency Shoulder Milling Solution

ZANHO JDMT10 series ensures stable performance in diverse milling tasks. Contact us for bulk pricing and technical tool matching.
