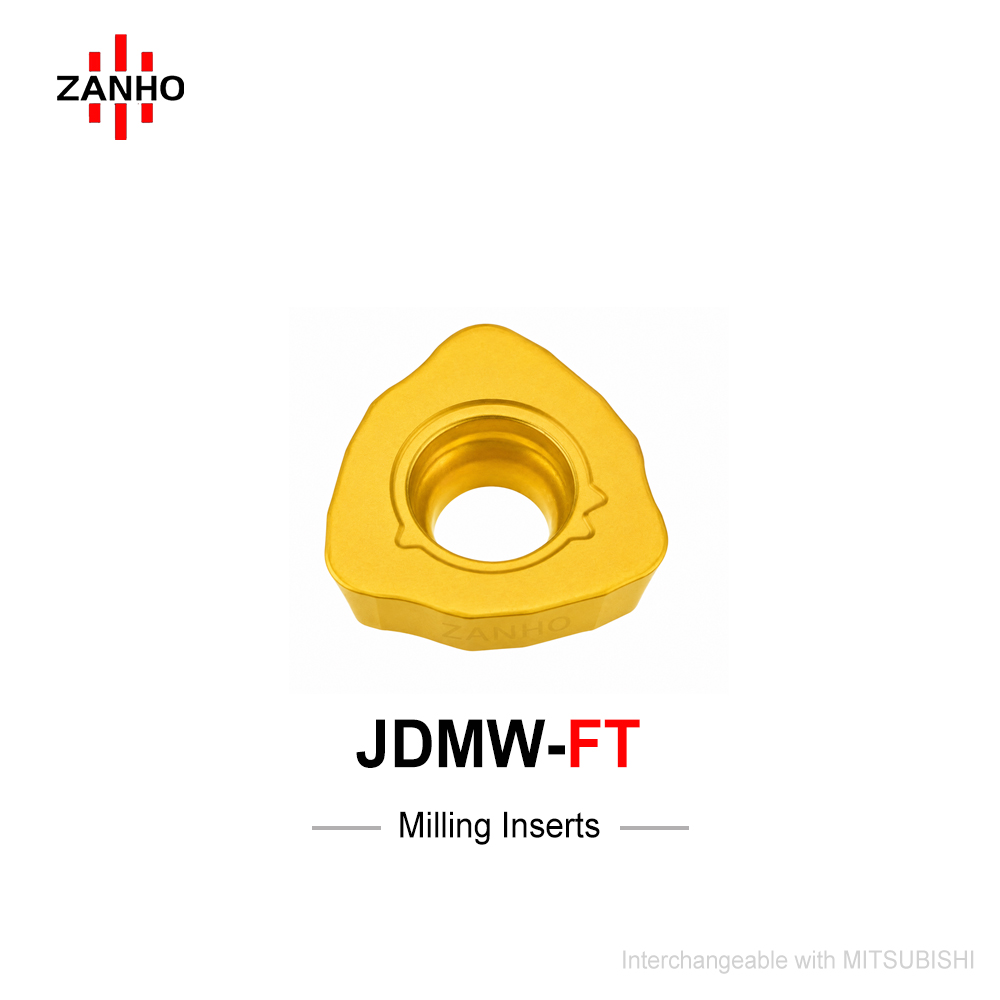

JDMW-FT

ZANHO JDMW series inserts feature the FT chipbreaker, specifically engineered for heavy-duty high-feed roughing and crust removal. The two-stage straight main edge design enables high metal removal rates with reduced cutting resistance. Optimized for AJX cutter bodies, these single-sided 3-edge inserts offer superior impact resistance and efficient chip evacuation in deep pocketing and face milling.
Categories:
Learn More
Download PDF
Description

Key Technical Advantages

  • Heavy-Duty FT Geometry: Reinforced edge specifically developed for handling oxide layers and hardened surfaces during aggressive roughing.
  • Two-Stage Straight Edge: Achieves extreme feed rates while redirecting forces axially to reduce radial load and vibration.
  • Thickened Body Construction: Enhanced impact resistance for large-allowance pocketing and high-interruption milling in mold and die production.
  • Superior Thermal Control: Optimized FT cavity shape improves chip curling and evacuation, minimizing heat accumulation at the cutting tip.
  • AJX Compatibility: Single-sided design with 3 effective edges, purpose-built for maximum economic efficiency in AJX high-feed series.

Technical Specifications (mm)

Type I.C (Ø) Thickness (S) Wiper (BS) Radius (Re) Clearance (AN)
JDMW09T320SR-FT 9.53 3.97 1.80 2.00 15°
JDMW120420SR-FT 12.00 4.76 2.50 2.00 15°
JDMW140520SR-FT 14.00 5.56 2.80 2.00 15°

Aggressive Roughing for Toughest Workpieces

ZANHO JDMW series provides industrial-grade reliability for mold and die steel. Contact us for bulk B2B inquiry and tool life testing data.
